SPARECRUX is NOT an authorized distributor for SCHNEIDER ELECTRIC

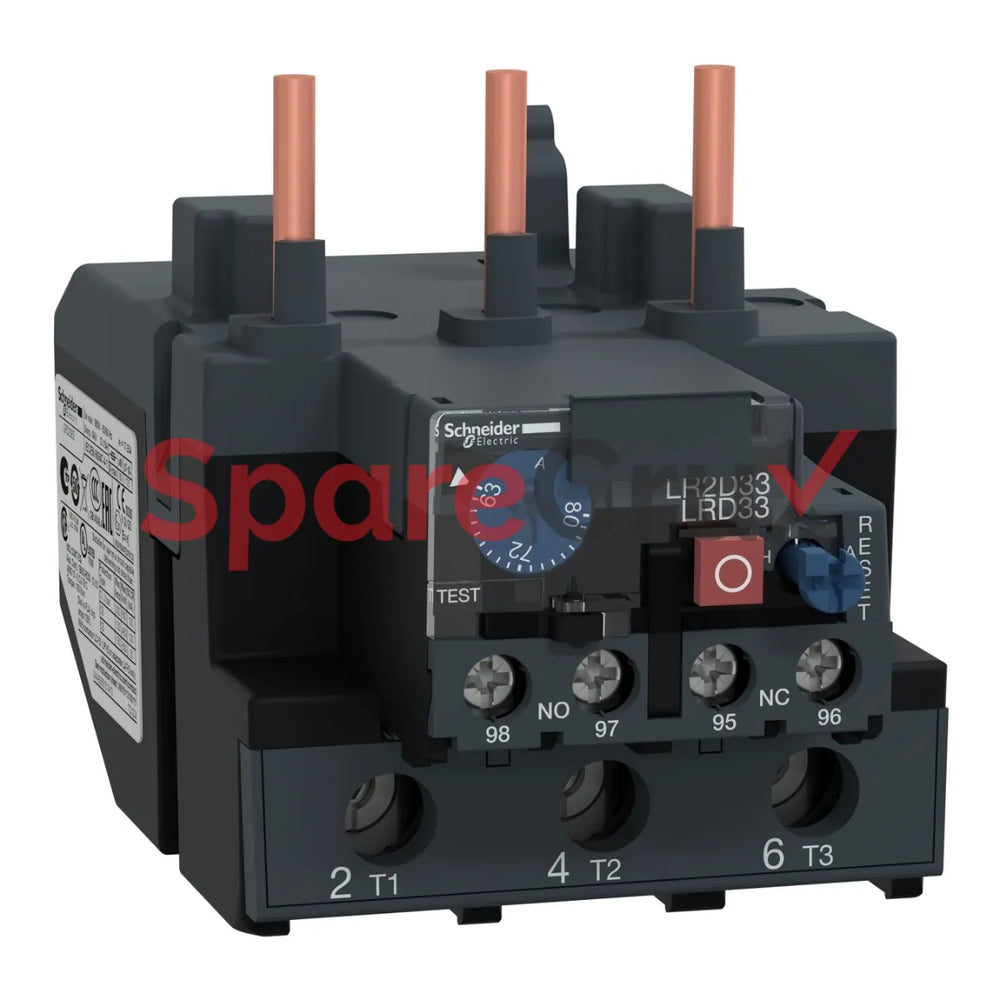

LRD3363 | SCHNEIDER ELECTRIC | TeSys LRD Thwhermal Overload Relays - 63...80 A - class 10A

₹ 10,431.20

₹ 8,840.00 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

LRD3363

Fabricant d'équipement d'origine

SCHNEIDER ELECTRIC

Description

Product name TeSys LRD / TeSys Deca
Product or component type Differential thermal overload relay
Device short name LRD
Relay application Motor protection
Product compatibility LC1D80 / LC1D95
Network type DC / AC
Thermal overload class Class 10A conforming to IEC 60947-4-1
Thermal protection adjustment range 63…80 A
Network frequency 0...400 Hz
Tripping threshold 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Auxiliary contact composition 1 NO + 1 NC
Control type Red push-button: stop / Blue push-button: reset
Height 81 mm
Width 70 mm
Depth 115 mm
Net weight 0.51 kg
