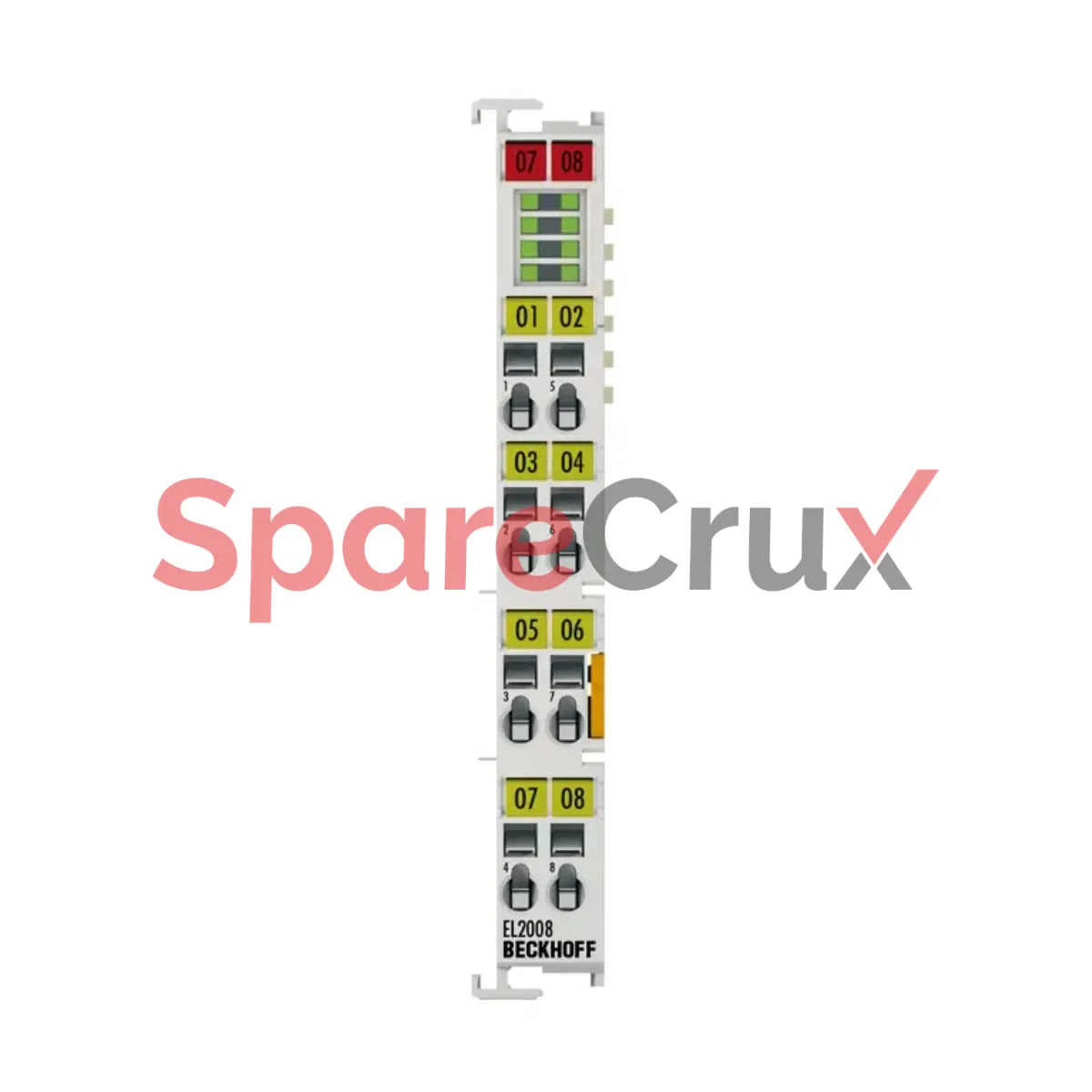

EL2008 | BECKHOFF | EtherCAT Terminal, 8-channel Digital Output, 24 V DC, 0.5 A

₹ 4,890.86

₹ 4,144.80 (Excl. Tax)


Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

EL2008

Fabricant d'équipement d'origine

BECKHOFF

Description

Connection technology 1-wire
Number of outputs 8
Nominal voltage 24 V DC (-15%/+20%)
Load type ohmic, inductive, lamp load
Distributed clocks
Max. output current 0.5 A (short-circuit proof) per channel
Short-circuit current typ. < 2 A
Reverse voltage protection yes
Breaking energy < 150 mJ/channel
Switching times typ. TON: 60 µs, typ. TOFF: 300 µs
Current consumption E-bus typ. 110 mA
Current consumption power contacts typ. 15 mA + load
Bit width in the process image 8 outputs
Configuration no address or configuration setting
Electrical isolation 500 V (E-bus/field potential)
Weight approx. 55 g
Operating temperature -25…+60°C
