SPARECRUX is NOT an authorized distributor for FESTO

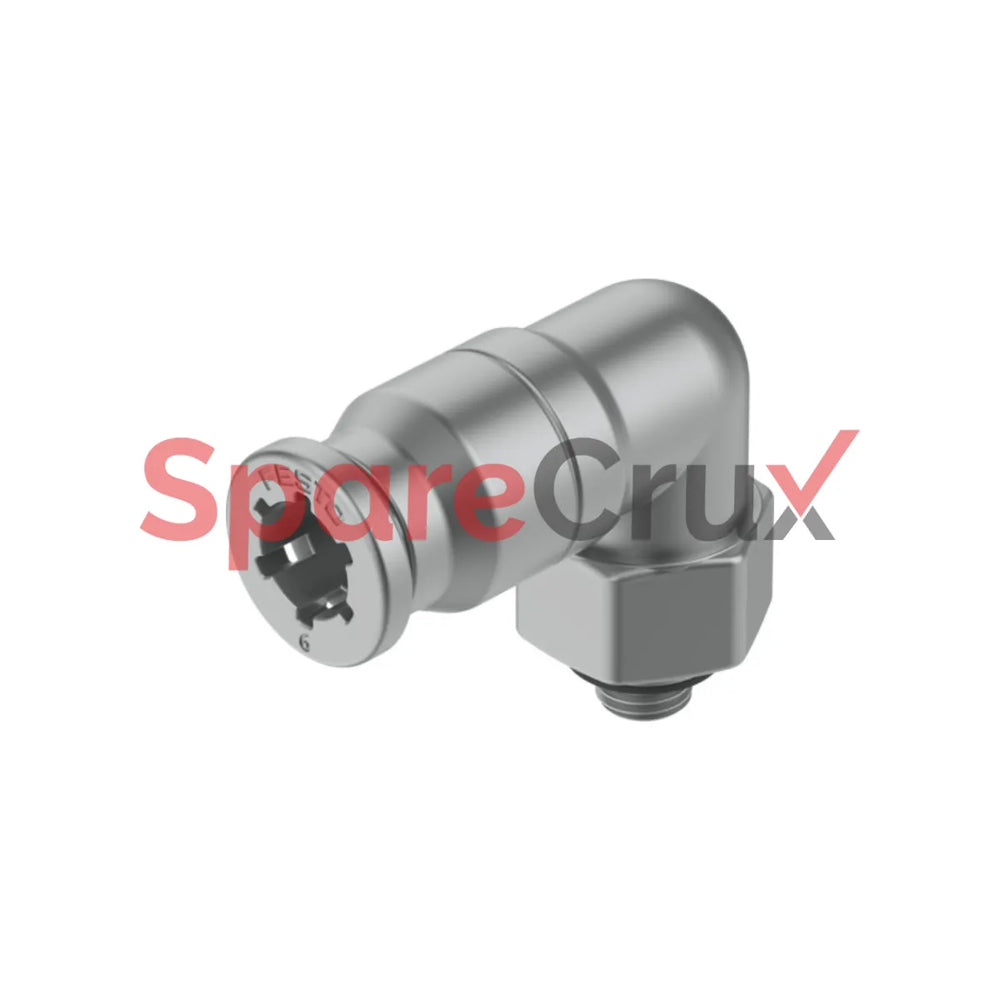

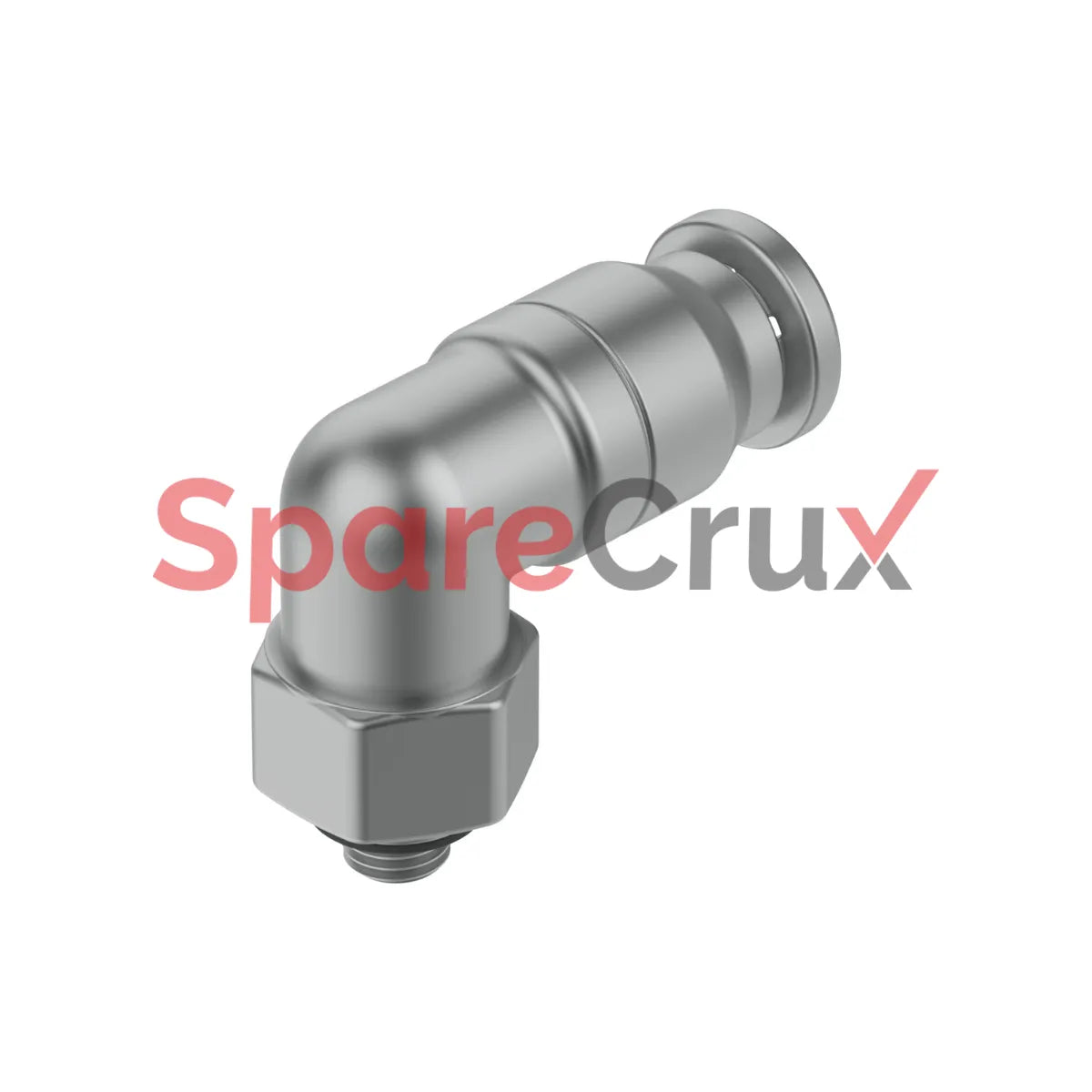

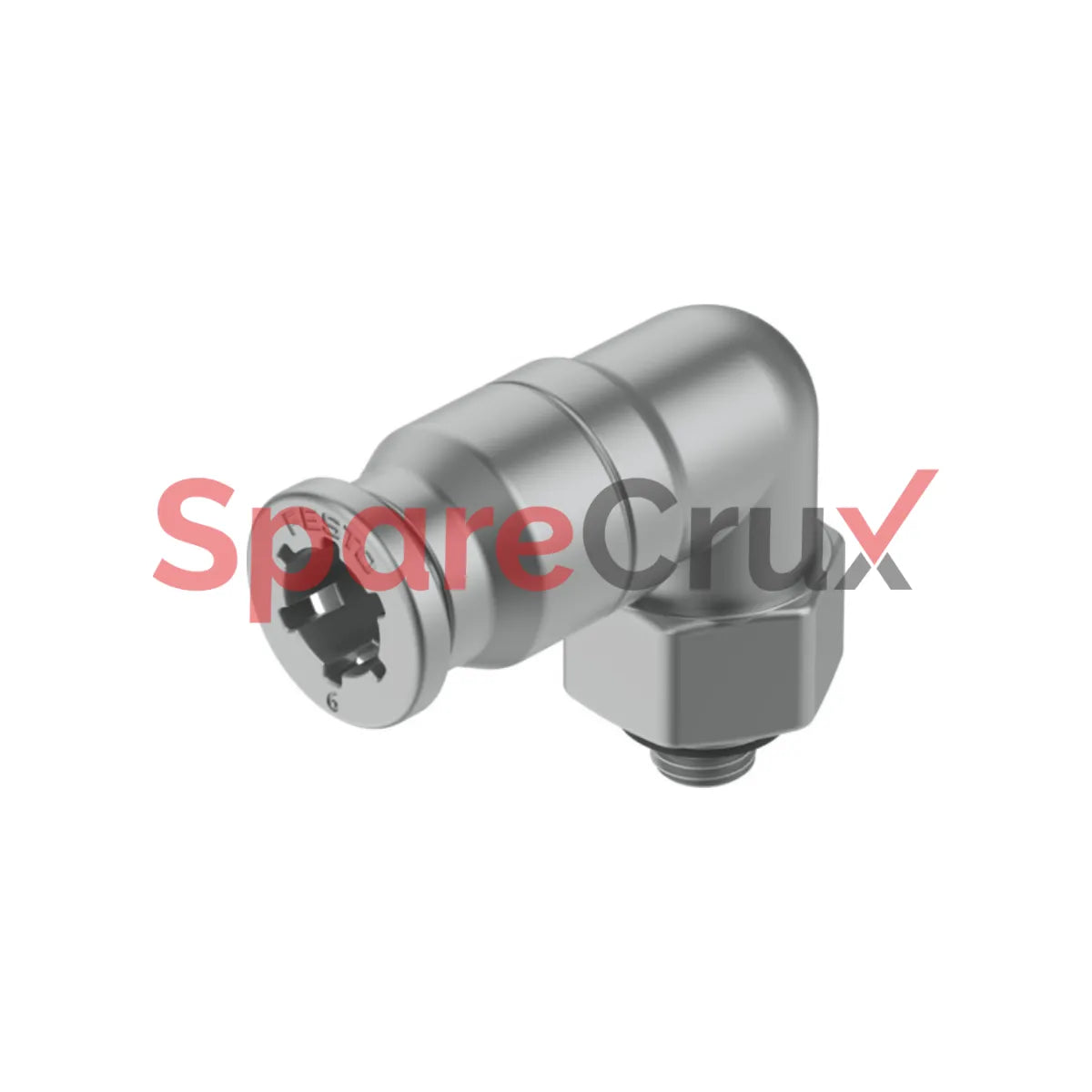

162871 | FESTO | Push-in L-fitting CRQSL-M5-6

₹ 2,466.80

₹ 2,090.51 (Excl. Tax)


Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

162871

Fabricant d'équipement d'origine

FESTO

Description

Specification Details
Size Standard
Nominal size 2 mm
Tubing insertion depth 19.5 mm
Type of seal on screwed plug Sealing ring
Mounting position Optional
Design L-shape
Size of pack 1
Design principle Push-pull principle
Operating pressure (complete temperature range) -0.095 MPa ... 1 MPa -0.95 bar ... 10 bar -13.775 psi ... 145 psi
Note on operating pressure Water: max. 0.6 MPa at max. 50°C
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance class (CRC) 4 - Very high corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Suitable for use with food See supplementary material information
Ambient temperature -15 °C ... 120 °C
Nominal torque 1.33 Nm
Tolerance for nominal tightening torque ± 20%
Product weight 18 g
Suitable cables PFAN
Type of mounting External hexagon, size 12 mm
Pneumatic connection, port 1 Male thread M5
Pneumatic connection, port 2 For tubing outer diameter of 6 mm
Material screwed plug High-alloy stainless steel
Note on materials RoHS-compliant
Material housing High-alloy stainless steel
Material thread seal FPM, High-alloy stainless steel
Material release ring High-alloy stainless steel
Material tubing seal FPM
Material tubing clamp component High-alloy stainless steel
Thrust ring material High-alloy stainless steel
