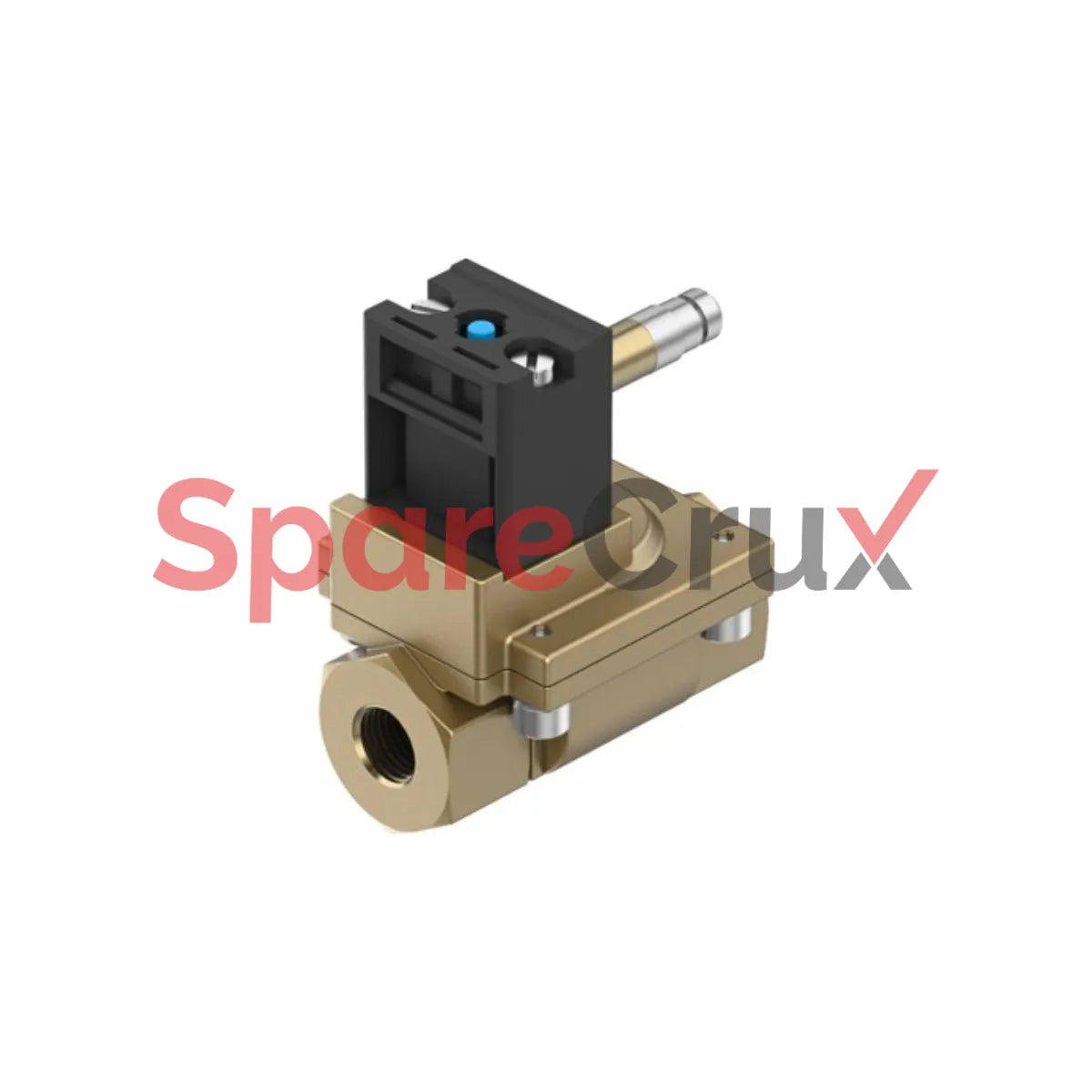

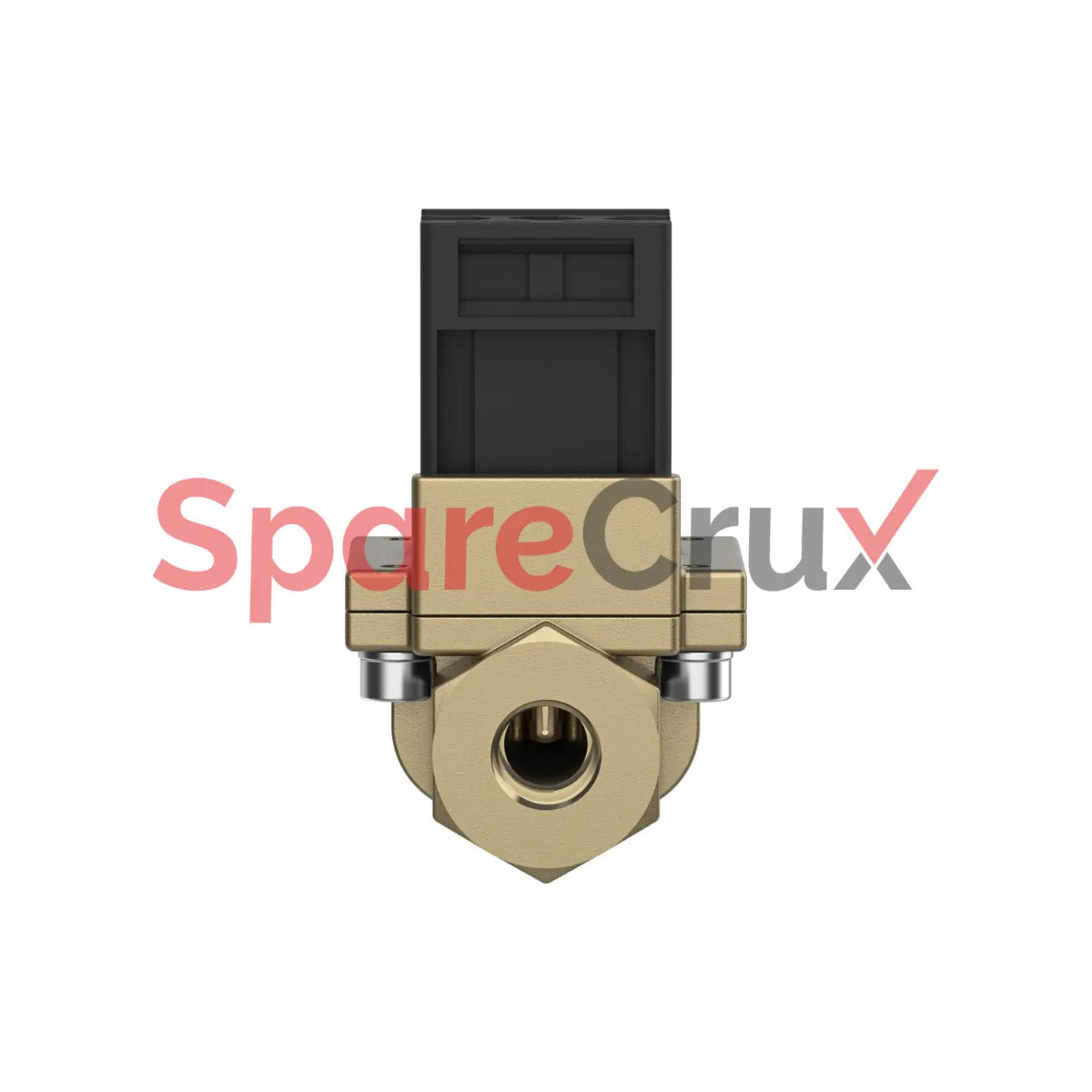

161728 | FESTO | Solenoid Valve MN1H-2-1/2-MS
est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Garantie
Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .
Livraison et expédition
Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.
161728 | FESTO | Solenoid Valve MN1H-2-1/2-MS
est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Numéro de pièce du fabricant (MPN)
161728
Fabricant d'équipement d'origine
FESTO
Description
Property
Value
Design
Diaphragm valve
Type of actuation
Electric
Sealing principle
Soft
Mounting position
Optional
Type of mounting
In-line installation
Connection Process valve
G1/2
Electrical connection
Type A plugs, To DIN EN 175301-803, Square design
Nominal size
13 mm
Valve function
2/2-way, closed, monostable
Manual override
Detenting via accessory, Non-detenting
Flow direction
Non-reversible
Medium
Filtered compressed air, grade of filtration 200 µm
Exhaust-air function
Without flow control option
Characteristic coil data
110 V AC: 50 Hz, pick-up power 5.0 VA, holding power 3.7 VA
110 V AC: 60 Hz, pick-up power 5.0 VA, holding power 3.7 VA
230 V AC: 50 Hz, pick-up power 5.0 VA, holding power 3.7 VA
230 V AC: 60 Hz, pick-up power 5.0 VA, holding power 3.7 VA
24 V DC: 2.5 W
Type of reset
Pneumatic spring
Type of piloting
Pilot actuated
Symbol
00991399
Medium pressure
0.5 bar ... 10 bar
Note on operating and pilot medium
Lubricated operation possible (lubrication always required if used)
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Standard nominal flow rate (DIN 1343)
3100 l/min
Switching time on
30 ms
Switching time off
100 ms
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Material housing
Brass
Material screws
High-alloy stainless steel (1.4301)
Product weight
400 g
Degree of protection
IP65
With plug socket
Yes
