SPARECRUX is NOT an authorized distributor for FESTO

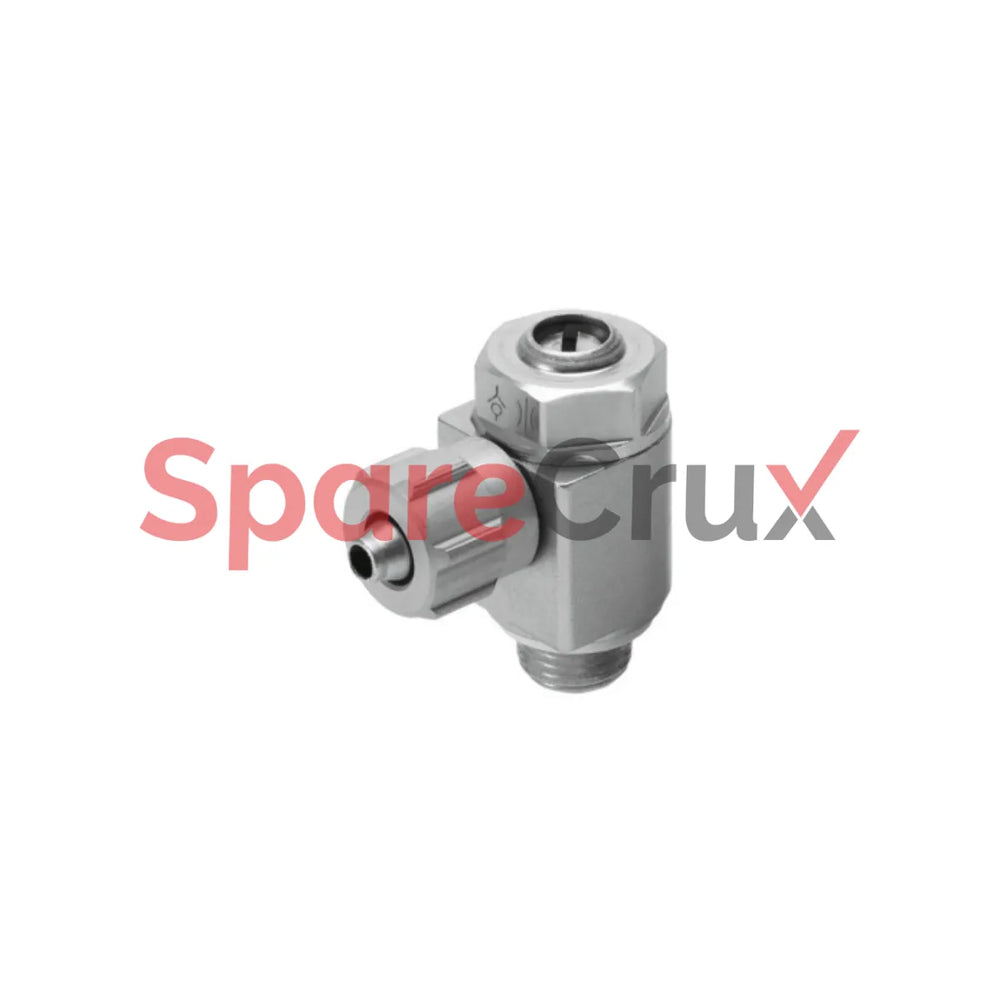

151183 | FESTO | One-way Flow Control Valve GRLZ-M5-B

₹ 1,147.35

₹ 972.33 (Excl. Tax)

Garantie

Nous offrons une garantie d'un an à compter de la date d'achat pour les produits neufs. De plus, les articles excédentaires ou d'occasion bénéficient d'une garantie de 30 jours .

Livraison et expédition

Nous traitons les commandes sous 5 à 7 jours ouvrés . Les options d'expédition varient selon la destination, avec suivi fourni. L'expédition internationale est disponible, les droits de douane étant à la charge du client.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Numéro de pièce du fabricant (MPN)

151183

Fabricant d'équipement d'origine

FESTO

Description
Property Value
Valve Function Supply air one-way flow control function
Pneumatic Connection, Port 1 M5
Pneumatic Connection, Port 2 M5
Adjustment Component Slotted head screw
Type of Mounting Screw-in
Standard Nominal Flow Rate (Control Direction) 95 l/min
Standard Nominal Flow Rate (Blocked Direction) 76 l/min ... 95 l/min
Operating Pressure 0.2 bar ... 10 bar
Ambient Temperature -10 °C ... 60 °C
Explosion Protection Certificate info must be observedZone 1, 2, 21, 22 (ATEX)
Mounting Position Optional
Symbol 00991453
Standard Flow Rate (Control Direction) 0.6->0 MPa 169 l/min
Standard Flow Rate (Non-return Direction) 0.6->0 MPa 135 l/min ... 170 l/min
Operating Medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on Operating & Pilot Medium Lubricated operation possible (lubrication always required)
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Cleanroom Class Class 4 according to ISO 14644-1
Media Temperature -10 °C ... 60 °C
Nominal Size 2 mm
Max. Tightening Torque 1.5 Nm
Product Weight 11 g
Material Screwed Plug Brass, Nickel-plated
Material Seals NBR
Material Adjusting Screw Brass
Material Swivel Fitting Die-cast zinc
RoHS Compliance Yes
FESTO

151183 | FESTO | One-way Flow Control Valve GRLZ-M5-B

₹ 972.33
Property Value
Valve Function Supply air one-way flow control function
Pneumatic Connection, Port 1 M5
Pneumatic Connection, Port 2 M5
Adjustment Component Slotted head screw
Type of Mounting Screw-in
Standard Nominal Flow Rate (Control Direction) 95 l/min
Standard Nominal Flow Rate (Blocked Direction) 76 l/min ... 95 l/min
Operating Pressure 0.2 bar ... 10 bar
Ambient Temperature -10 °C ... 60 °C
Explosion Protection Certificate info must be observedZone 1, 2, 21, 22 (ATEX)
Mounting Position Optional
Symbol 00991453
Standard Flow Rate (Control Direction) 0.6->0 MPa 169 l/min
Standard Flow Rate (Non-return Direction) 0.6->0 MPa 135 l/min ... 170 l/min
Operating Medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on Operating & Pilot Medium Lubricated operation possible (lubrication always required)
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Cleanroom Class Class 4 according to ISO 14644-1
Media Temperature -10 °C ... 60 °C
Nominal Size 2 mm
Max. Tightening Torque 1.5 Nm
Product Weight 11 g
Material Screwed Plug Brass, Nickel-plated
Material Seals NBR
Material Adjusting Screw Brass
Material Swivel Fitting Die-cast zinc
RoHS Compliance Yes
