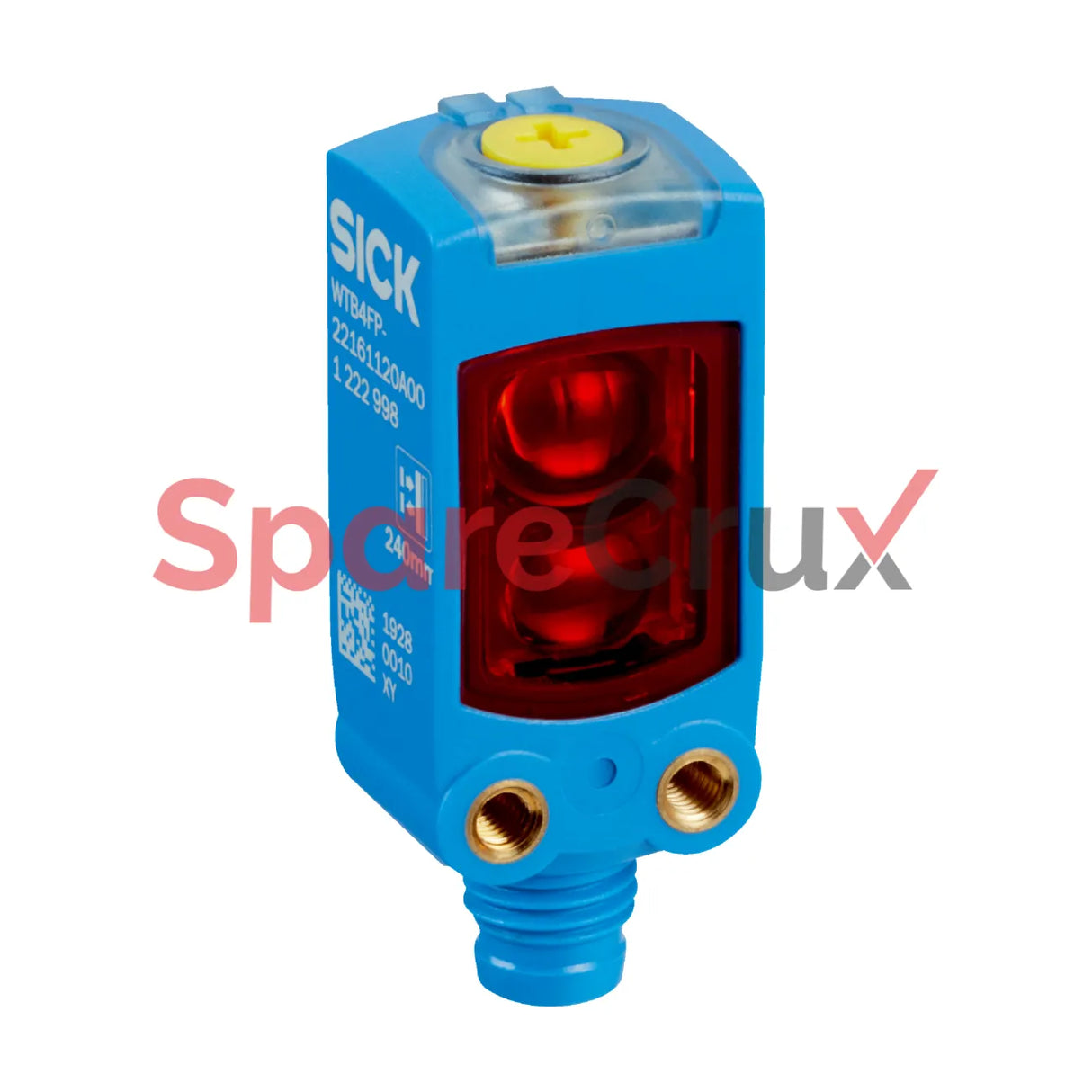

1105435 | SICK SENSORS | WTB4FT-22161120A00 Photoelectric Proximity Sensor

₹ 25,017.53

₹ 21,201.30 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Specification Details
Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression, DoubleLine
Supply voltage UB 10 V DC ... 30 V DC
Ripple ≤ 5 Vpp
Housing Rectangular
Design detail Flat
Dimensions (W x H x D) 16 mm x 40.1 mm x 12.1 mm
Connection Male connector M8, 4-pin
Weight Approx. 30 g



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1105435

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Functional principle – Photoelectric proximity sensor

Functional principle detail – Background suppression, DoubleLine

Sensing range min. – 7 mm

Sensing range max. – 120 mm

Adjustable switching threshold for background suppression – 15 mm ... 120 mm

Reference object – Object with 90% remission factor (complies with standard white according to DIN 5033)

Minimum distance between set sensing range and background (black 6% / white 90%) – 1 mm, at a distance of 50 mm

Recommended sensing range for the best performance – 30 mm ... 80 mm

Normative reference – EN 62471:2008-09 | IEC 62471:2006, modified

LED risk group marking – Free group

Wave length – 635 nm

Average service life – 100,000 h at Ta = +25 °C

Supply voltage UB – 10 V DC ... 30 V DC 1)

Ripple – ≤ 5 Vpp

Usage category – DC-12 (According to EN 60947-5-2), DC-13 (According to EN 60947-5-2)

Current consumption – ≤ 25 mA, without load. At UB = 24 V

Protection class – III

Housing – Rectangular

Design detail – Flat

Dimensions (W x H x D) – 16 mm x 40.1 mm x 12.1 mm

Connection – Male connector M8, 4-pin

Weight – Approx. 30 g

MTTFD – 661 years

DCavg – 0 %

TM (mission time) – 20 years

EU declaration of conformity – ✔

UK declaration of conformity – ✔

ACMA declaration of conformity – ✔

Moroccan declaration of conformity – ✔

China RoHS – ✔

ECOLAB certificate – ✔

cULus certificate – ✔

IO-Link certificate – ✔

Information according to Art. 3 of Data Act (Regulation EU 2023/2854) – ✔

ECLASS 5.0 – 27270904

ECLASS 5.1.4 – 27270904

ECLASS 6.0 – 27270904

ECLASS 6.2 – 27270904

ECLASS 7.0 – 27270904

ECLASS 8.0 – 27270904

ECLASS 8.1 – 27270904

ECLASS 9.0 – 27270904

ECLASS 10.0 – 27270904
