SPARECRUX is NOT an authorized distributor for MINILEC

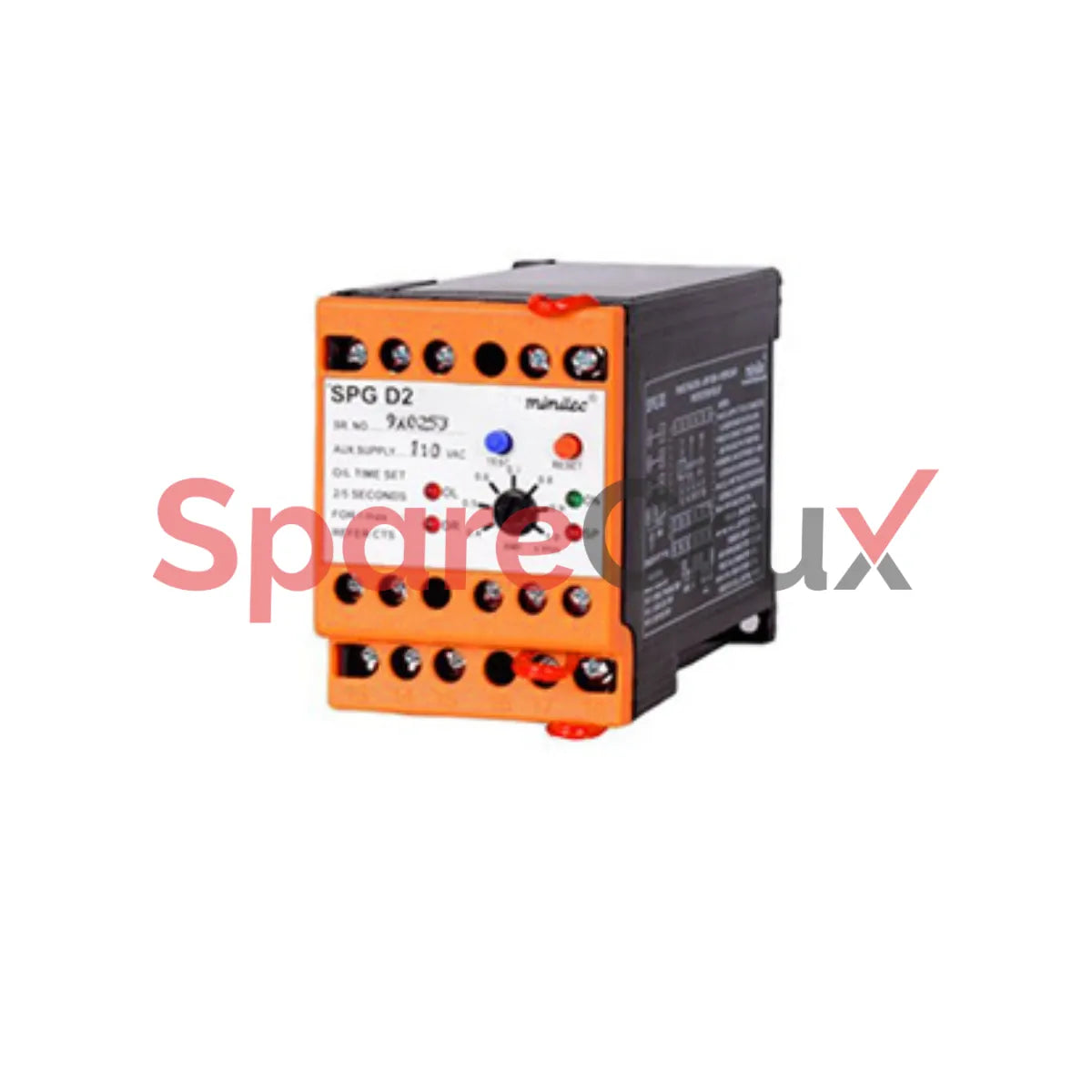

SPG D2 | MINILEC | Motor / Pump Protection Relays 240VAC

₹ 2,654.53

₹ 2,249.60 (Excl. Tax)


ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

SPG D2

الشركة المصنعة للمعدات الأصلية

MINILEC

وصف

Feature Specification / Detail
Protection Functions Phase failure & sequence, unbalance, overloading, dry-running protection
Reset Method Auto / Manual / Remote reset
Adjustable Settings Current trip, selectable overload characteristics
Output Contacts 1 CO (or optionally 2 CO) relay outputs
Supply / System Voltage 100–120 / 220–240 / 380–440 V AC ±20%
Auxiliary Voltage 110 / 240 / 380 / 415 / 440 V AC, and 24 V AC/DC ±20%
Trip Time Delays Phase failure: 5.5 s ± 1.5 s; Overload: selectable inverse time (2 / 5 s, up to 10 s)
Unbalance / Dry-Run Settings Phase-to-phase unbalance: 50% of motor current; Dry run: 50% / 75% of set current
Approximate Weight ~425 g
Dimensions (L × W × D) 76 × 56.5 × 117.5 mm
Mounting Format 67 × 46 mm (or 35 mm rail mounting)
MINILEC

SPG D2 | MINILEC | Motor / Pump Protection Relays 240VAC

₹ 2,249.60
Feature Specification / Detail
Protection Functions Phase failure & sequence, unbalance, overloading, dry-running protection
Reset Method Auto / Manual / Remote reset
Adjustable Settings Current trip, selectable overload characteristics
Output Contacts 1 CO (or optionally 2 CO) relay outputs
Supply / System Voltage 100–120 / 220–240 / 380–440 V AC ±20%
Auxiliary Voltage 110 / 240 / 380 / 415 / 440 V AC, and 24 V AC/DC ±20%
Trip Time Delays Phase failure: 5.5 s ± 1.5 s; Overload: selectable inverse time (2 / 5 s, up to 10 s)
Unbalance / Dry-Run Settings Phase-to-phase unbalance: 50% of motor current; Dry run: 50% / 75% of set current
Approximate Weight ~425 g
Dimensions (L × W × D) 76 × 56.5 × 117.5 mm
Mounting Format 67 × 46 mm (or 35 mm rail mounting)
