SPARECRUX is NOT an authorized distributor for BELIMO

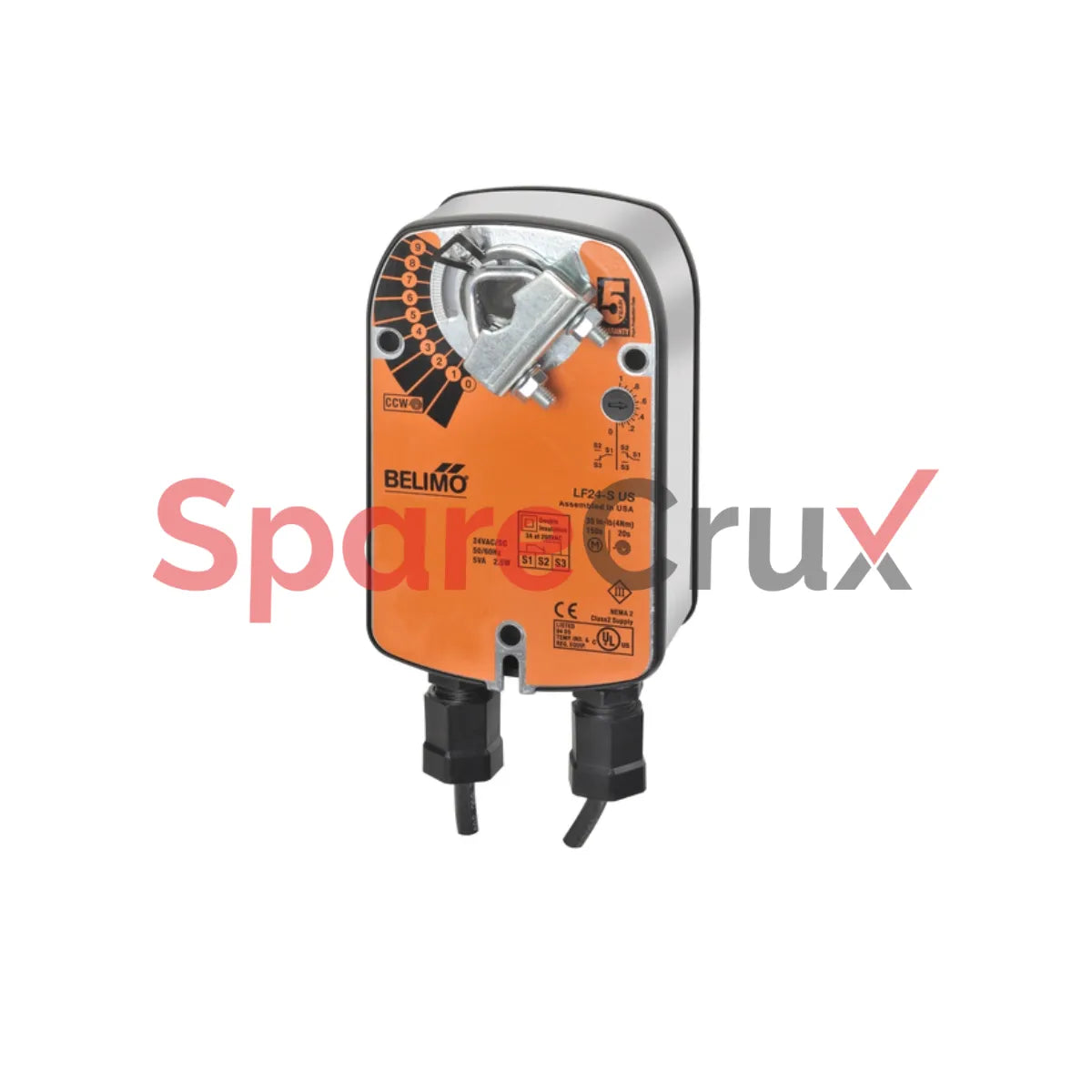

LF24-S | BELIMO | Damper Actuator, 35 in-lb [4 Nm]

₹ 63,611.64

₹ 53,908.17 (Excl. Tax)


ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

LF24-S

الشركة المصنعة للمعدات الأصلية

BELIMO

وصف

Specification Details
Voltage AC/DC AC/DC 24 V
Power Consumption (Running) 5 W
Power Consumption (Holding) 2.5 W
Power Consumption for Wire Sizing 7 VA
Auxiliary Switches 1x SPDT
Torque 35 in-lb [4 Nm]
Control Type On/Off
Direction of Motion Motor Selectable with switch 0/1
Direction of Rotation (Fail-Safe) Reversible with cw/ccw mounting
Angle of Rotation 95°
Running Time (Motor) 75 s / 90°
Running Time (Fail-Safe) <25 s
Degree of Protection NEMA NEMA 2
Enclosure Type UL Enclosure Type 2
Ambient Temperature -22...122°F [-30...50°C]
BELIMO

LF24-S | BELIMO | Damper Actuator, 35 in-lb [4 Nm]

₹ 53,908.17
Specification Details
Voltage AC/DC AC/DC 24 V
Power Consumption (Running) 5 W
Power Consumption (Holding) 2.5 W
Power Consumption for Wire Sizing 7 VA
Auxiliary Switches 1x SPDT
Torque 35 in-lb [4 Nm]
Control Type On/Off
Direction of Motion Motor Selectable with switch 0/1
Direction of Rotation (Fail-Safe) Reversible with cw/ccw mounting
Angle of Rotation 95°
Running Time (Motor) 75 s / 90°
Running Time (Fail-Safe) <25 s
Degree of Protection NEMA NEMA 2
Enclosure Type UL Enclosure Type 2
Ambient Temperature -22...122°F [-30...50°C]
