SPARECRUX is NOT an authorized distributor for DELTA ELECTRONICS

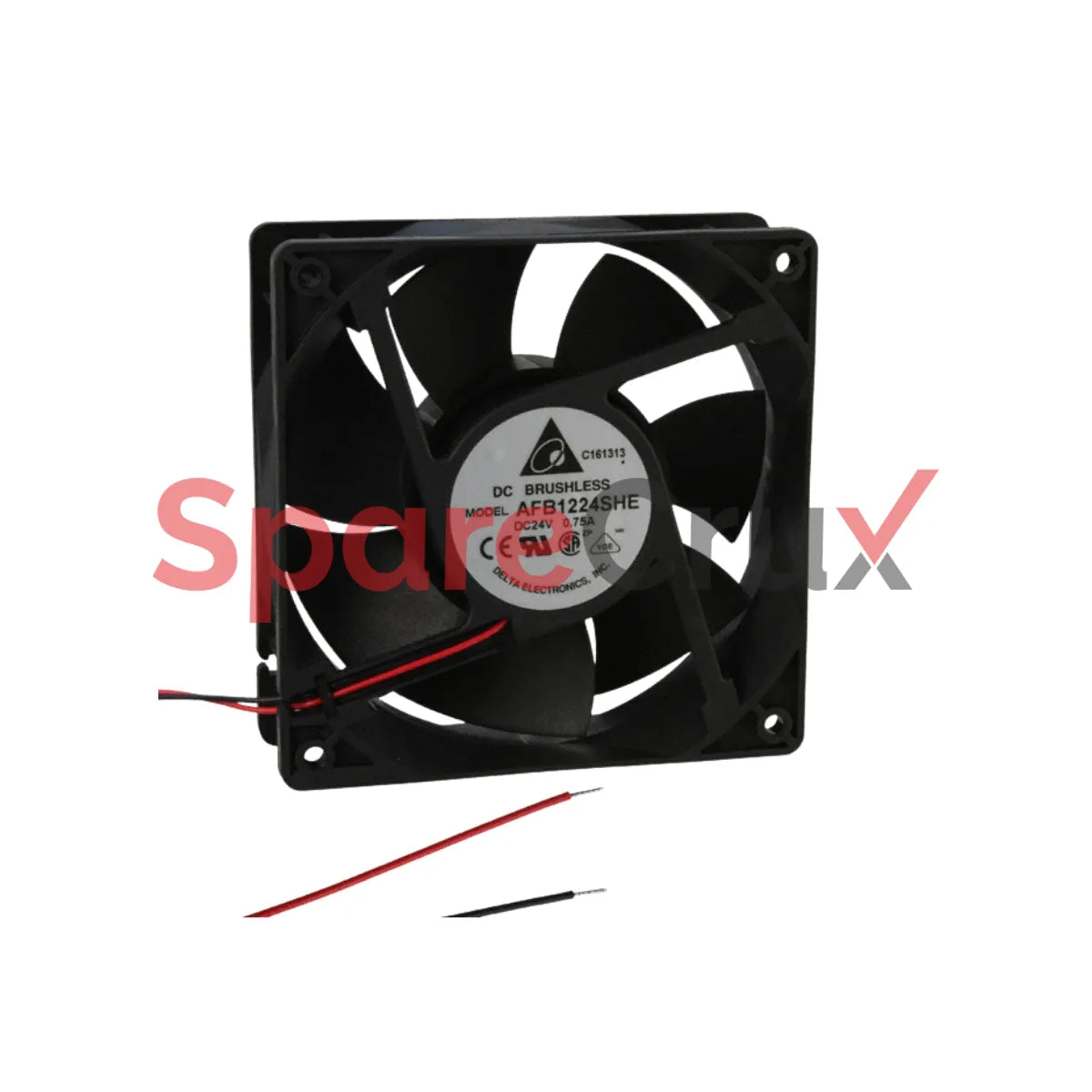

AFB1224SHE | DELTA ELECTRONICS | DC Fans DC Tubeaxial Fan, 120x38mm, 24VDC, Ball Bearing, Lead Wires

₹ 2,429.21

₹ 2,058.65 (Excl. Tax)


ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

AFB1224SHE

الشركة المصنعة للمعدات الأصلية

DELTA ELECTRONICS

وصف

Attribute Details
Size / Dimension Square - 120mm L x 120mm H
Width 38.00mm
Air Flow 151.9 CFM (4.25m³/min)
Static Pressure 0.571 in H2O (142.2 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 53.0 dB(A)
Power (Watts) 12 W
RPM 3700 RPM
Termination 2 Wire Leads
Operating Temperature 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.565 lb (256.28 g)
Current Rating (Amps) 0.500A
Voltage Range 7 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
