SPARECRUX is NOT an authorized distributor for SICK SENSORS

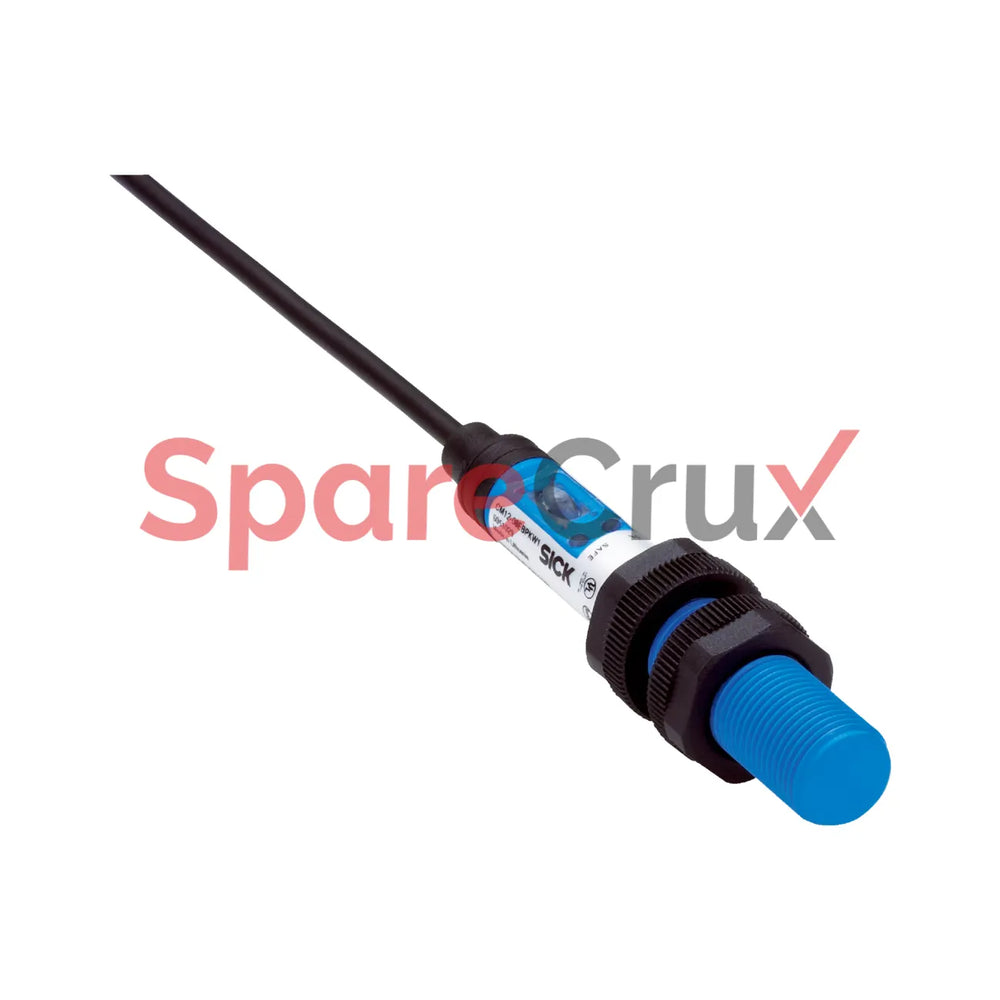

6051029 | SICK SENSORS | CM12-08EBP-KW1 Capacitive Proximity Sensors

₹ 10,344.35

₹ 8,766.40 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

6051029

الشركة المصنعة للمعدات الأصلية

SICK SENSORS

وصف

Housing Metric
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn

0.5 mm ... 8 mm 1)

0.5 mm ... 4 mm 2)

Safe sensing range Sa 5.76 mm
Installation type Non-flush / flush 3)
Switching frequency 15 Hz
Connection type Cable, 4-wire, 2 m 4)
Switching output PNP / NPN
Switching output detail PNP / NPN
Output function NC or NO
Supply voltage 10 V DC ... 36 V DC
Ripple ≤ 10 % 1)
Voltage drop ≤ 2.5 V DC 2)
Current consumption 12 mA 3)
Time delay before availability ≤ 120 ms
Hysteresis 3 % ... 20 %
Reproducibility

≤ 5 % 4)

 5)

EMC According to EN 60947-5-2 6)
Continuous current Ia ≤ 200 mA
Cable material PVC
Conductor size 0.14 mm²
