SPARECRUX is NOT an authorized distributor for SICK SENSORS

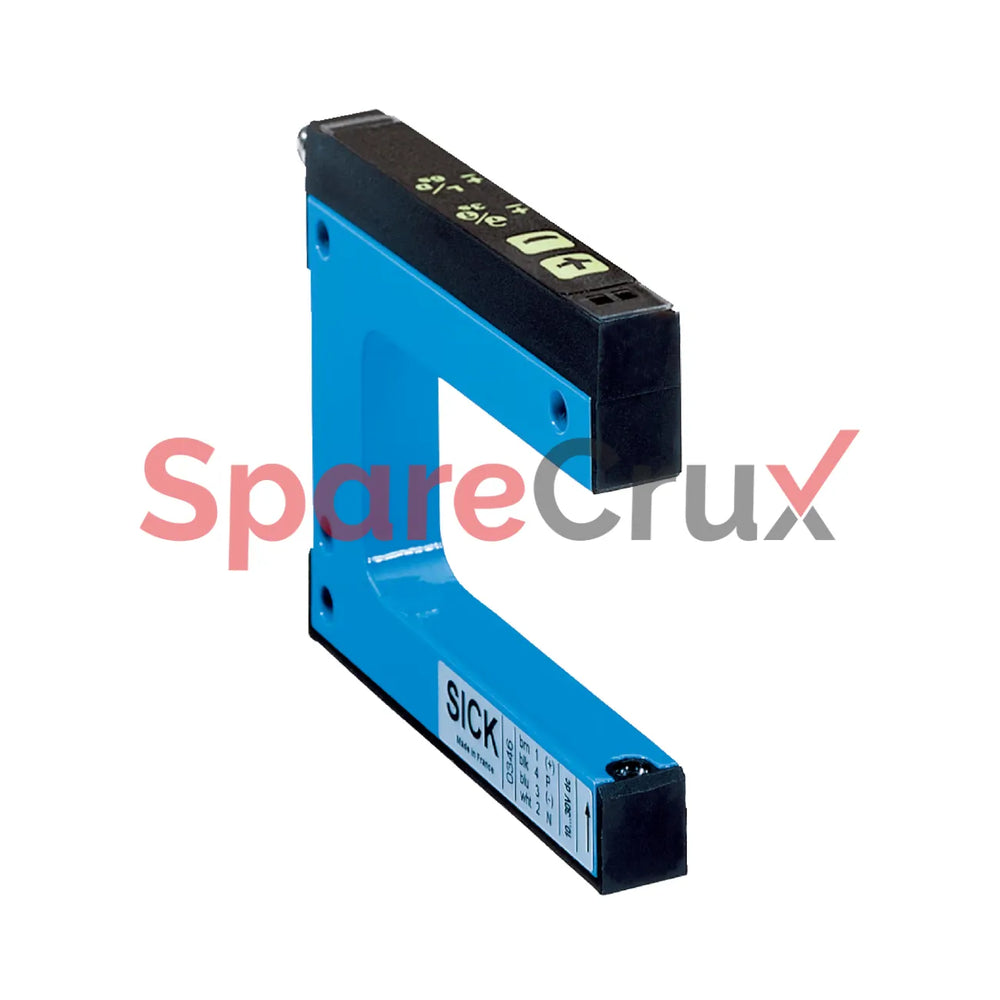

6028448 | SICK SENSORS | WF80-95B410 Fork Sensor

₹ 30,639.41

₹ 25,965.60 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

6028448

الشركة المصنعة للمعدات الأصلية

SICK SENSORS

وصف

Functional principle Optical detection principle
Dimensions (W x H x D) 10 mm x 110 mm x 110 mm
Fork width 80 mm
Fork depth 95 mm
Minimum detectable object (MDO) 0.2 mm
Label detection
Light source LED, infrared, Infrared light
Adjustment Plus/minus button (Sensitivity, light/dark switching, key lock)
Teach-in mode
Supply voltage 10 V DC ... 30 V DC
Ripple < 10 %
Current consumption 40 mA
Switching frequency 10 kHz
Response time ≤ 100 µs
Stability of response time ± 20 µs
Jitter 40 µs
Switching output PNP/NPN



SICK SENSORS 6028448 WF80-95B410 Fork Sensor
SICK SENSORS

6028448 | SICK SENSORS | WF80-95B410 Fork Sensor

₹ 25,965.60
Functional principle Optical detection principle
Dimensions (W x H x D) 10 mm x 110 mm x 110 mm
Fork width 80 mm
Fork depth 95 mm
Minimum detectable object (MDO) 0.2 mm
Label detection
Light source LED, infrared, Infrared light
Adjustment Plus/minus button (Sensitivity, light/dark switching, key lock)
Teach-in mode
Supply voltage 10 V DC ... 30 V DC
Ripple < 10 %
Current consumption 40 mA
Switching frequency 10 kHz
Response time ≤ 100 µs
Stability of response time ± 20 µs
Jitter 40 µs
Switching output PNP/NPN
