SPARECRUX is NOT an authorized distributor for SICK SENSORS

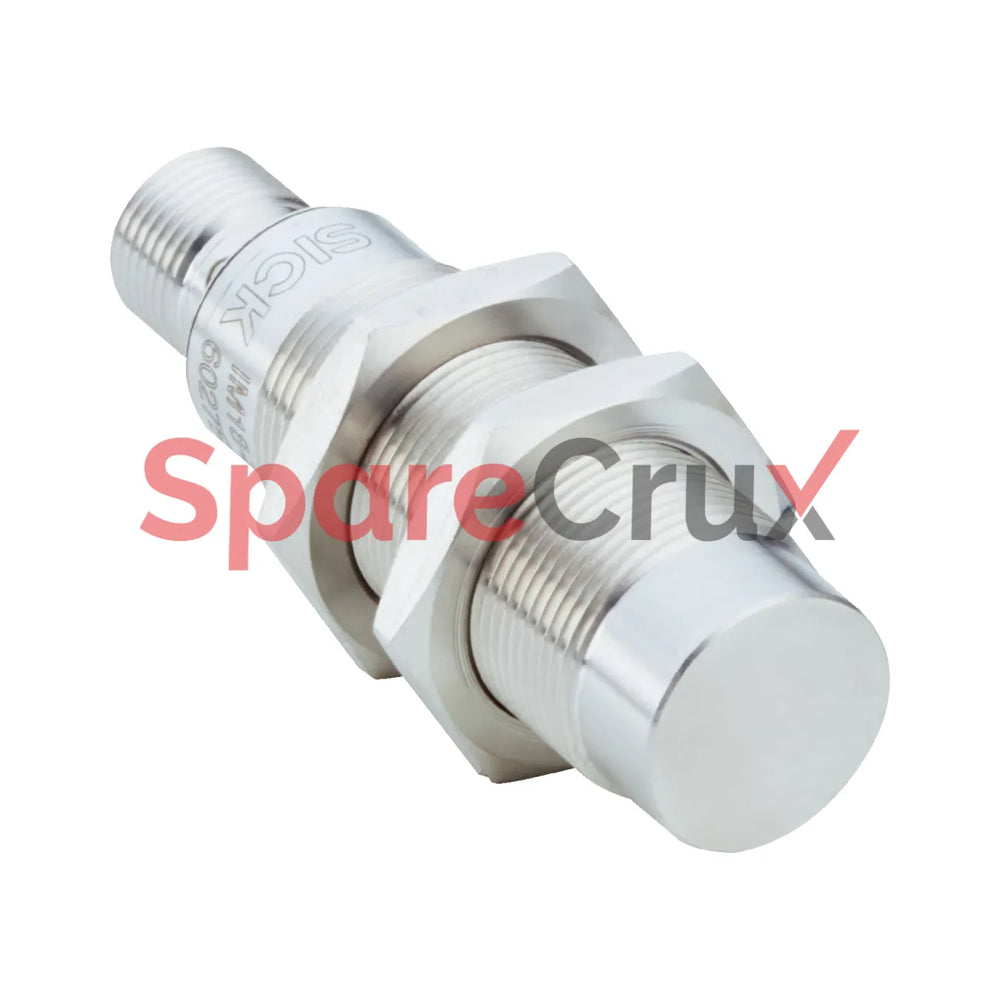

6027580 | SICK SENSORS | IM18-20NPS-NC1 Inductive Proximity Sensor

₹ 17,649.02

₹ 14,956.80 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

6027580

الشركة المصنعة للمعدات الأصلية

SICK SENSORS

وصف

Housing Metric
Thread size M18 x 1
Diameter Ø 18 mm
Pressure resistance ≤ 60 bar
Sensing range Sn 20 mm
Safe sensing range Sa 16.2 mm
Installation type Non-flush
Switching frequency 200 Hz
Connection type Male connector M12, 4-pin
Housing length 63.5 mm
Thread length 35 mm
Tightening torque, max. ≤ 50 Nm
Protection class III



SICK SENSORS 6027580 IM18-20NPS-NC1 Inductive Proximity Sensor
SICK SENSORS

6027580 | SICK SENSORS | IM18-20NPS-NC1 Inductive Proximity Sensor

₹ 14,956.80
Housing Metric
Thread size M18 x 1
Diameter Ø 18 mm
Pressure resistance ≤ 60 bar
Sensing range Sn 20 mm
Safe sensing range Sa 16.2 mm
Installation type Non-flush
Switching frequency 200 Hz
Connection type Male connector M12, 4-pin
Housing length 63.5 mm
Thread length 35 mm
Tightening torque, max. ≤ 50 Nm
Protection class III
