SPARECRUX is NOT an authorized distributor for ABB

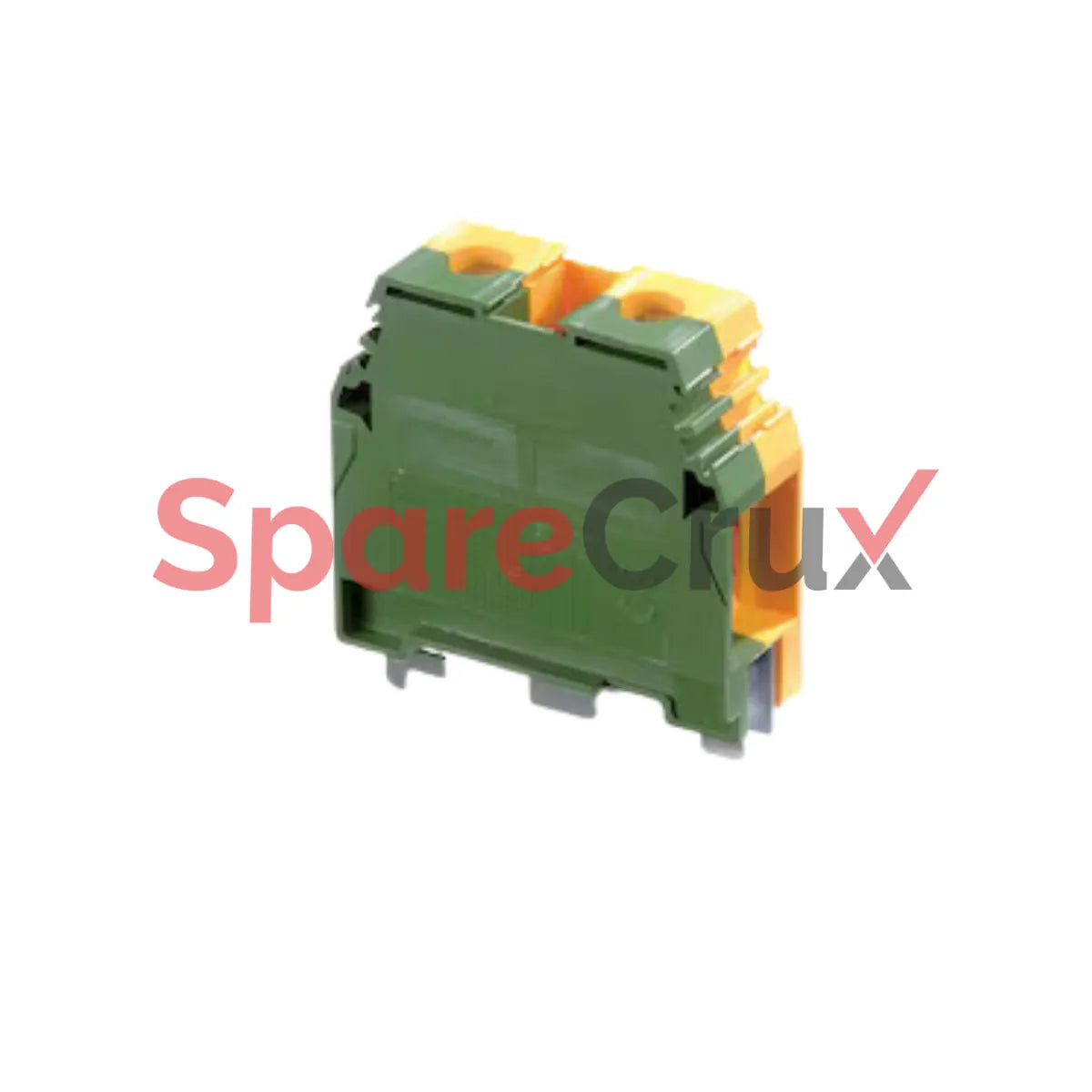

1SNA165111R1400 | ABB | Screw Clamp Terminal Block

₹ 1,222.03

₹ 1,035.62 (Excl. Tax)


ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

1SNA165111R1400

الشركة المصنعة للمعدات الأصلية

ABB

وصف

Feature Specification
Product Type Screw Clamp Terminal Block
Function Grounding
Number of Positions 2
Number of Poles 2
Number of Circuits 1
Number of Levels 1
Wire Gauge (AWG) 1/0
Wire Gauge (mm²) 35
Wire Stripping Length 17 mm
Main Circuit Capacity - Rigid Stranded Conductor: 10–0 AWG (6–50 mm²)
- Flexible Conductor: 4–35 mm²
Product Spacing 16 mm (0.629 in)
Product Dimensions (L x W x H) 46.5 mm x 16 mm x 49 mm (1.831 in x 0.629 in x 1.929 in)
Product Weight 50.5 g (1.781 oz)
Primary Color Green & Yellow
Housing Material Polyamide 6.6
Mounting Type DIN Rail (TH35-7.5, TH35-15, G32)
Torque for Screw Terminal 2.8 Nm (24.9 in-lbs)
Dielectric Withstanding Voltage 3500 V
Short-Time Withstanding Current 4200 A for 1 second
Operating Temperature Range -55°C to +110°C (-67°F to +230°F)
Installation Temperature Range -5°C to +40°C (23°F to 104°F)
Flammability Rating UL 94V-0
Product Series ENTRELEC SNA
