SPARECRUX is NOT an authorized distributor for ABB

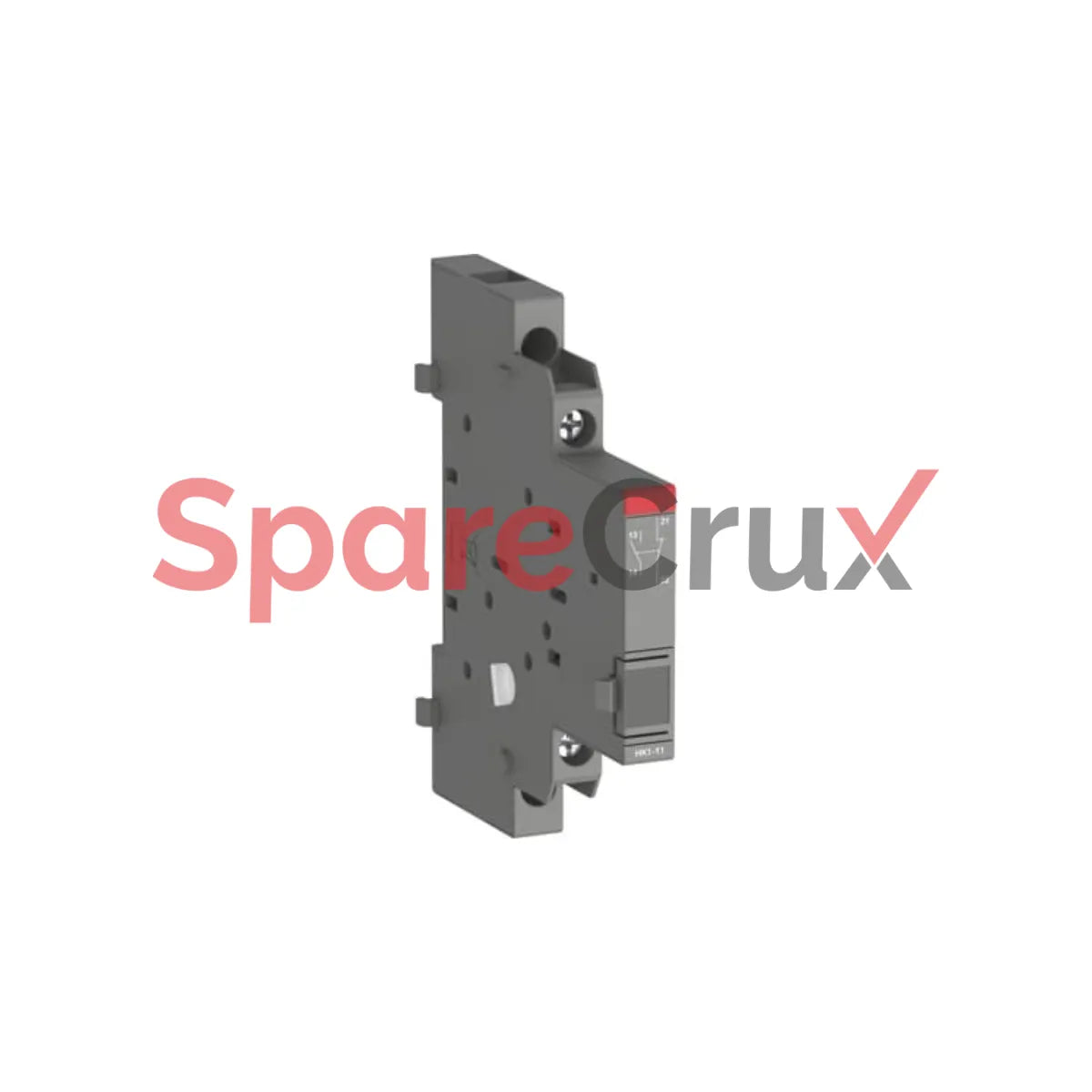

1SAM201902R1001 | ABB | HK1-11 Aux.-contact 1 NO + 1 NC

₹ 4,820.30

₹ 4,085.00 (Excl. Tax)

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

1SAM201902R1001

الشركة المصنعة للمعدات الأصلية

ABB

وصف
Specification Detail
Model / Part Number 1SAM201902R1001 (also known as HK1-11)
Product Type Auxiliary Contact Block
Mounting Type Front Mount
Number of Contacts 1 Normally Open (NO) + 1 Normally Closed (NC)
Rated Operational Voltage 690 V AC / 600 V DC
Rated Operational Current (Ie) AC-15: 6 A at 24 V, 4 A at 240 V, 3 A at 380/400 V, 1 A at 690 V; DC-13: 2 A at 24 V, 0.55 A at 125 V, 0.27 A at 250 V, 0.15 A at 440 V, 0.15 A at 600 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Rated Insulation Voltage (Ui) 690 V
Degree of Protection IP20
Electrical Durability 100,000 cycles
Mechanical Durability 100,000 cycles
Terminal Type Screw Terminals
Connecting Capacity Flexible with Ferrule: 0.75 – 1.5 mm²; Flexible with Insulated Ferrule: 0.75 – 1.5 mm²; Flexible: 0.75 – 1.5 mm²; Rigid: 1 – 1.5 mm²
Tightening Torque 0.8 – 1.2 N·m
Wire Stripping Length 8 mm
Recommended Screw Driver M3 Pozidriv 2
Ambient Temperature Operation: -25°C to +60°C; Storage: -50°C to +80°C
Standards Compliance CSA 22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508, UL 60947-1, UL 60947-5-1
Suitable For MS116, MS132, MO132, MS165, MO165 Manual Motor Starters
Product Class Manual Motor Starter
Accessory Group Electrical
Accessory Type Auxiliary Contact
