SPARECRUX is NOT an authorized distributor for FESTO

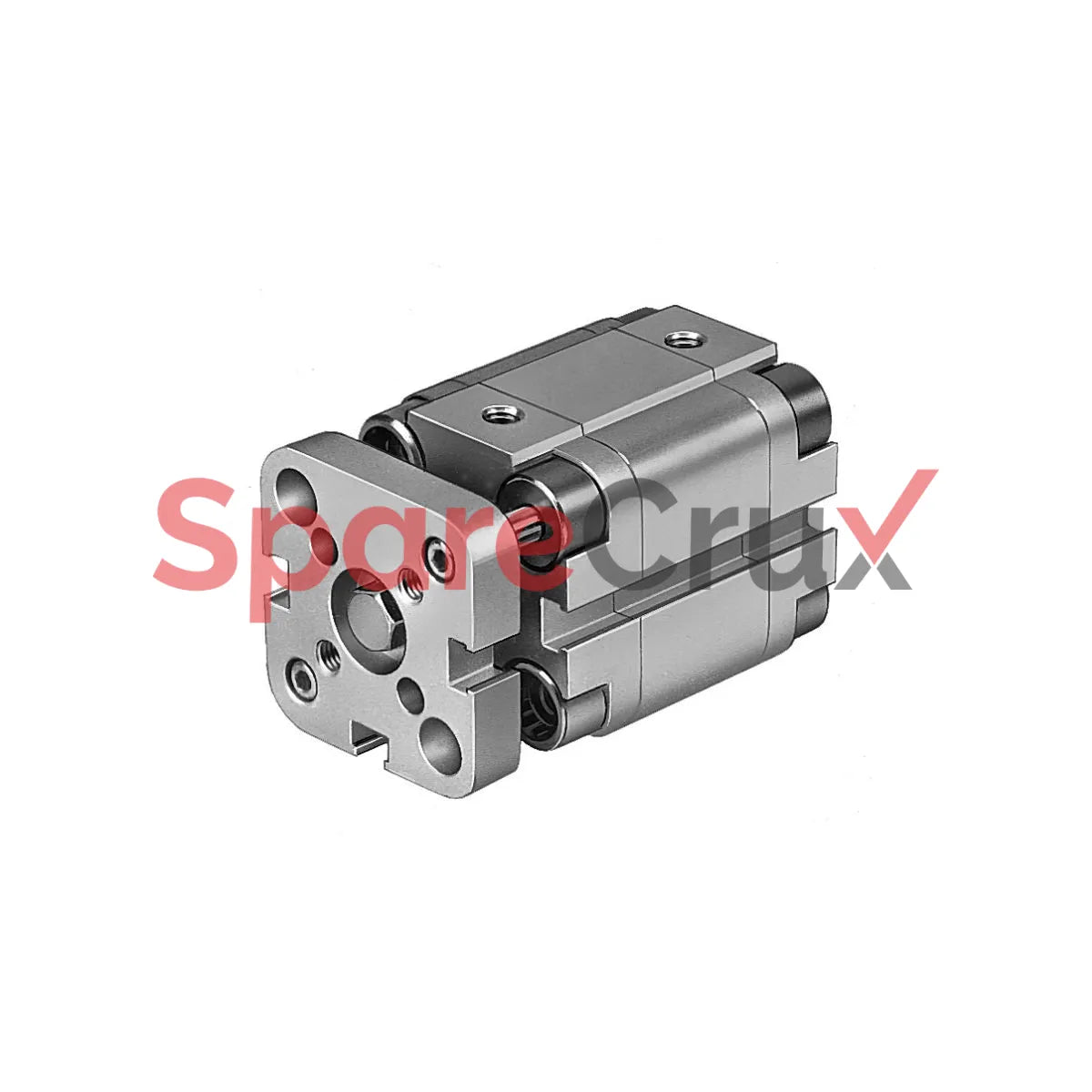

156867 | FESTO | Compact Cylinder

₹ 8,057.02

₹ 6,827.98 (Excl. Tax)


ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

156867

الشركة المصنعة للمعدات الأصلية

FESTO

وصف

Specification Details
Stroke 10 mm
Piston diameter 25 mm
Cushioning Elastic cushioning rings/plates at both ends
Mounting position Optional
Design Piston, Piston rod
Position detection Via proximity switch
Operating pressure 0.1 MPa ... 1 MPa / 1 bar ... 10 bar
Mode of operation Double-acting
Theoretical force at 0.6 MPa, return stroke 247 N
Theoretical force at 0.6 MPa, advance stroke 295 N
Moving mass for 0 mm stroke 61 g
Additional moving mass per 10 mm stroke 11 g
Basic weight for 0 mm stroke 215 g
Additional weight per 10 mm stroke 28 g
Type of mounting With through-hole or with accessories
Pneumatic connection M5
Material collar screws Galvanised steel
Material cover Wrought aluminium alloy
Material dynamic seals NBR, TPE-U (PU)
Material piston rod High-alloy stainless steel
FESTO

156867 | FESTO | Compact Cylinder

₹ 6,827.98
Specification Details
Stroke 10 mm
Piston diameter 25 mm
Cushioning Elastic cushioning rings/plates at both ends
Mounting position Optional
Design Piston, Piston rod
Position detection Via proximity switch
Operating pressure 0.1 MPa ... 1 MPa / 1 bar ... 10 bar
Mode of operation Double-acting
Theoretical force at 0.6 MPa, return stroke 247 N
Theoretical force at 0.6 MPa, advance stroke 295 N
Moving mass for 0 mm stroke 61 g
Additional moving mass per 10 mm stroke 11 g
Basic weight for 0 mm stroke 215 g
Additional weight per 10 mm stroke 28 g
Type of mounting With through-hole or with accessories
Pneumatic connection M5
Material collar screws Galvanised steel
Material cover Wrought aluminium alloy
Material dynamic seals NBR, TPE-U (PU)
Material piston rod High-alloy stainless steel
