SPARECRUX is NOT an authorized distributor for SICK SENSORS

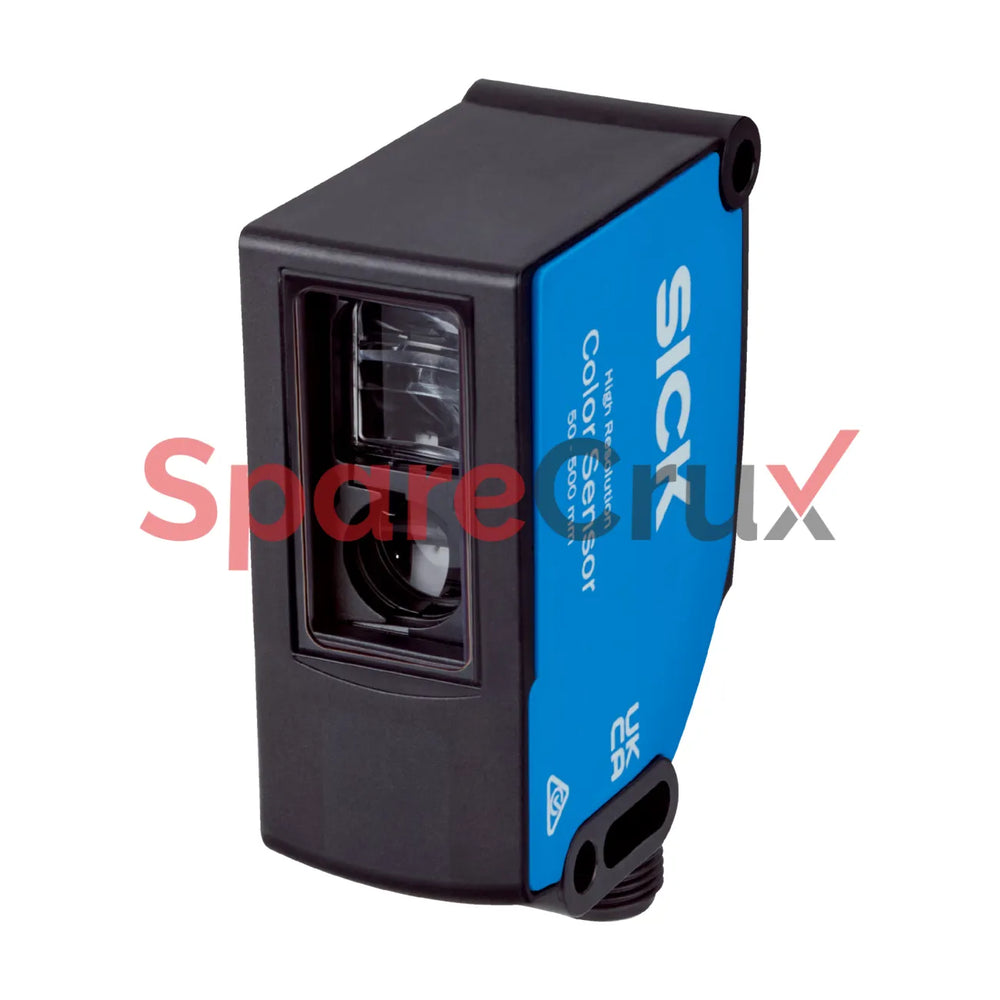

1120176 | SICK SENSORS | CSS-WBGAD4118RZZZZ Color Sensor CSS High Resolution

₹ 54,714.24

₹ 46,368.00 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

1120176

الشركة المصنعة للمعدات الأصلية

SICK SENSORS

وصف

Dimensions (W x H x D) 26 mm x 62 mm x 47.5 mm
Sensing distance 50 mm ... 500 mm
Housing design S housing
Light source LED, RGB 1)
LED risk group marking 2
Wave length 450 nm, 550 nm, 610 nm
Light emission Long side of housing
Light spot size Ø 8 mm ... 32 mm 2)
Light spot direction Round, large
Teach-in mode

Single value teach-in

Multi value teach-in

Supply voltage 10.8 V DC ... 28.8 V DC 1)
Ripple ≤ 5 Vpp 2)
Current consumption < 150 mA 3)
Switching frequency 4 kHz
Response time 120 µs
Jitter 60 µs
Switching output Push-pull: PNP/NPN
Switching output (voltage) Push-pull: PNP/NPN HIGH = U- 3 V/LOW ≤ 3 V
Output current Imax. 100 mA 4)



SICK SENSORS 1120176 CSS-WBGAD4118RZZZZ Color Sensor CSS High Resolution
SICK SENSORS

1120176 | SICK SENSORS | CSS-WBGAD4118RZZZZ Color Sensor CSS High Resolution

₹ 46,368.00
