SPARECRUX is NOT an authorized distributor for SICK SENSORS

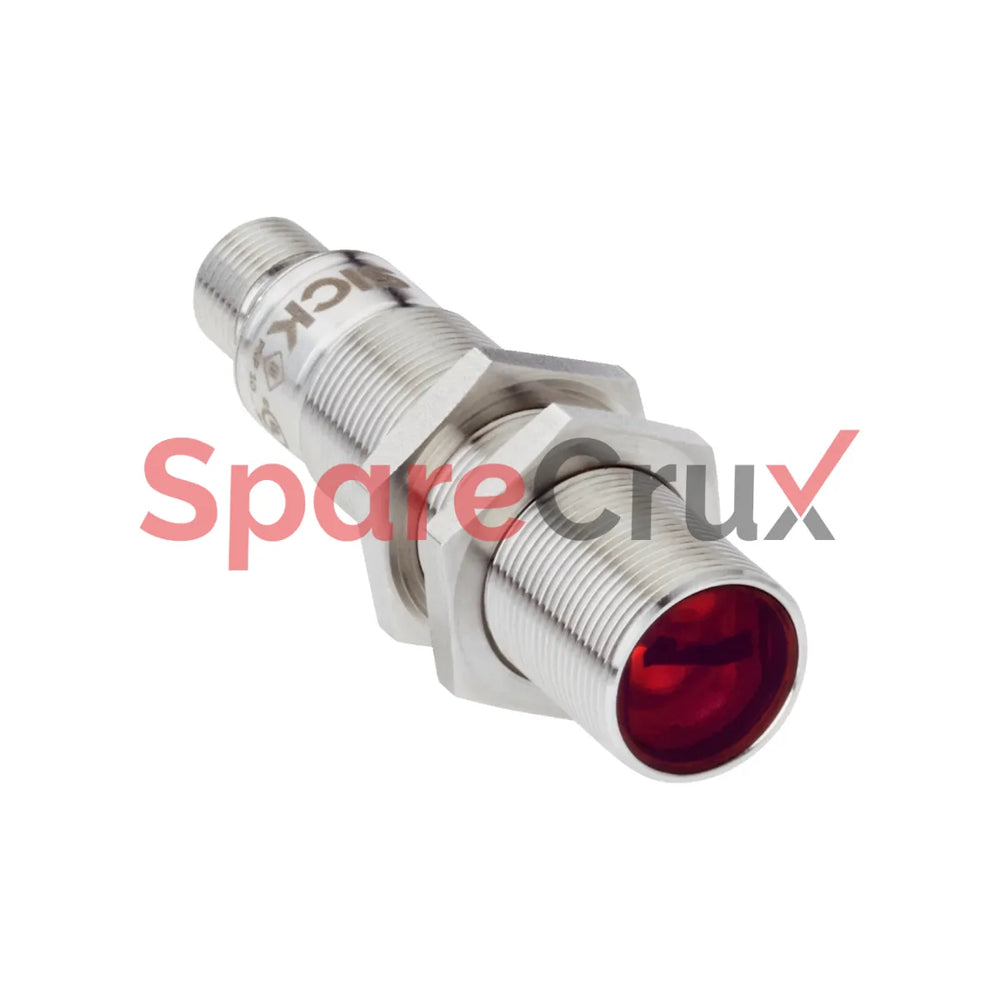

1085706 | SICK SENSORS | GRL18-P2431V Photoelectric Retro-reflective Sensor

₹ 9,450.38

₹ 8,008.80 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

1085706

الشركة المصنعة للمعدات الأصلية

SICK SENSORS

وصف

Functional principle Photoelectric retro-reflective sensor
Functional principle detail With minimum distance to reflector (dual lens system)
Dimensions (W x H x D) 18 mm x 18 mm x 73.5 mm
Housing design (light emission) Cylindrical
Housing length 73.5 mm
Thread length 49.3 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0.03 m ... 7.2 m 1)
Sensing range 0.06 m ... 6 m 1)
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 175 mm (7 m)
Wave length 650 nm
Housing material Metal, Stainless steel V4A (1.4404, 316L)
Optics material Plastic, PMMA
Tightening torque, max. 90 Nm
Enclosure rating

IP67

IP68 10)

IP69K 11)

Items supplied Fastening nuts (2 x)



SICK SENSORS 1085706 GRL18-P2431V Photoelectric Retro-reflective Sensor
SICK SENSORS

1085706 | SICK SENSORS | GRL18-P2431V Photoelectric Retro-reflective Sensor

₹ 8,008.80
Functional principle Photoelectric retro-reflective sensor
Functional principle detail With minimum distance to reflector (dual lens system)
Dimensions (W x H x D) 18 mm x 18 mm x 73.5 mm
Housing design (light emission) Cylindrical
Housing length 73.5 mm
Thread length 49.3 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0.03 m ... 7.2 m 1)
Sensing range 0.06 m ... 6 m 1)
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 175 mm (7 m)
Wave length 650 nm
Housing material Metal, Stainless steel V4A (1.4404, 316L)
Optics material Plastic, PMMA
Tightening torque, max. 90 Nm
Enclosure rating

IP67

IP68 10)

IP69K 11)

Items supplied Fastening nuts (2 x)
