SPARECRUX is NOT an authorized distributor for SICK SENSORS

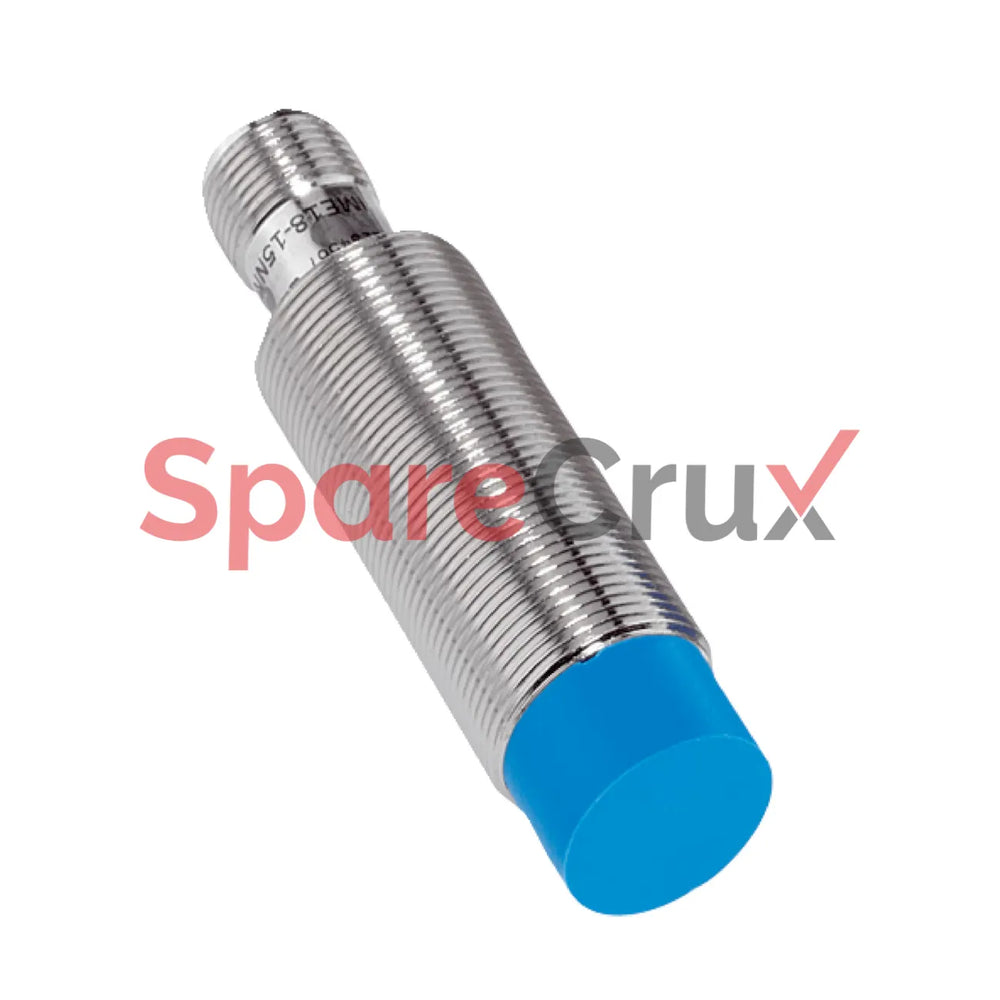

1071279 | SICK SENSORS | IME18-20NNSZC0S Inductive Proximity Sensor

₹ 6,488.11

₹ 5,498.40 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

1071279

الشركة المصنعة للمعدات الأصلية

SICK SENSORS

وصف

IM Standard, IME18

Housing Metric
Housing Standard design
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 20 mm
Safe sensing range Sa 16.2 mm
Installation type Non-flush
Switching frequency 200 Hz
Connection type Male connector M12, 4-pin
Switching output NPN
Switching output detail NPN
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
Housing material Brass, nickel-plated
Sensing face material Plastic, PA 66
Housing length 69 mm
Thread length 42 mm
Tightening torque, max. ≤ 30 Nm
