SPARECRUX is NOT an authorized distributor for SICK SENSORS

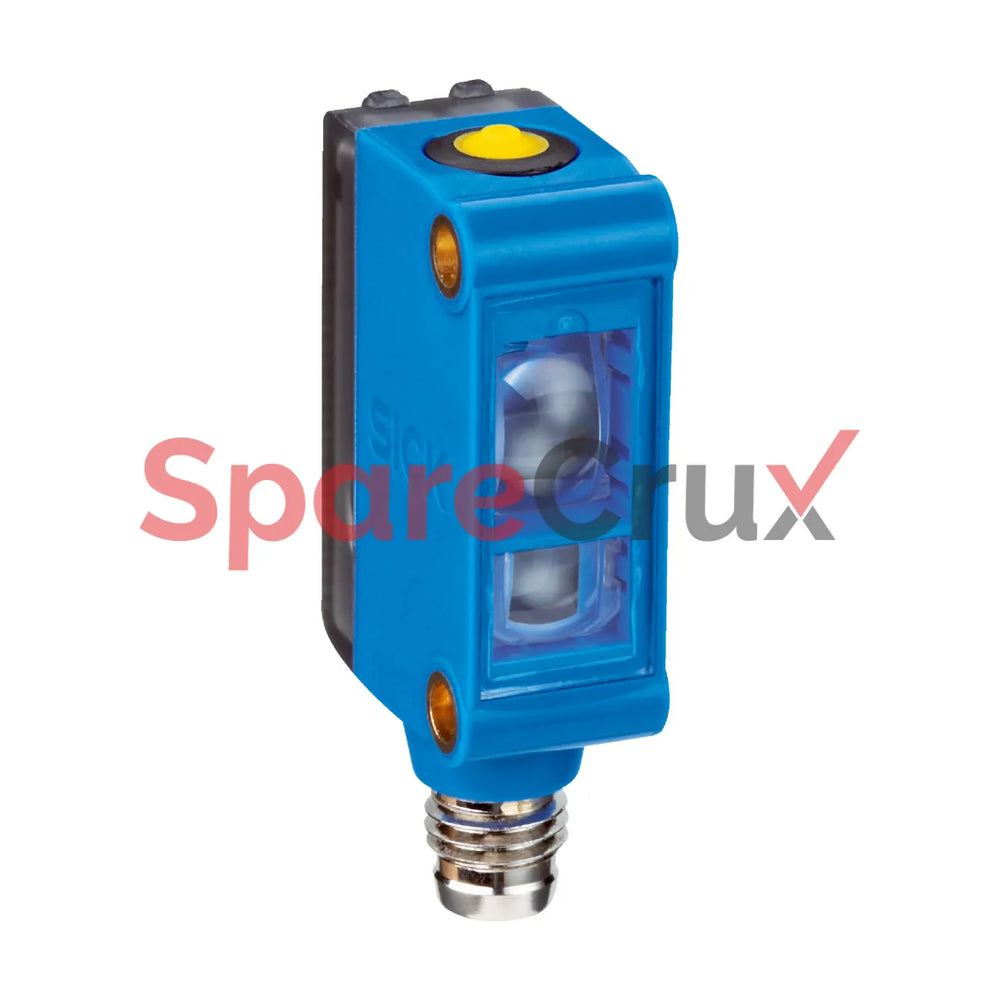

1061770 | SICK SENSORS | KTM-WP117A1P Contrast Sensor

₹ 21,901.74

₹ 18,560.80 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

ضمان

نقدم ضمانًا لمدة عام واحد من تاريخ الشراء للمنتجات الجديدة. بالإضافة إلى ذلك، تأتي المنتجات الفائضة/المستعملة مع ضمان لمدة 30 يومًا .

التسليم والشحن

نهدف إلى معالجة الطلبات خلال ٥-٧ أيام عمل . تختلف خيارات الشحن باختلاف الموقع، مع توفير خدمة التتبع؛ الشحن الدولي متاح مع تحمل العميل مسؤولية الرسوم الجمركية.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

رقم قطعة الشركة المصنعة (MPN)

1061770

الشركة المصنعة للمعدات الأصلية

SICK SENSORS

وصف

Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
Sensing distance ≤ 12.5 mm
Sensing distance tolerance ± 3 mm
Housing design Small
Light source LED, RGB 1)
Wave length 470 nm, 525 nm, 625 nm
Light emission Long side of housing
Light spot size 1.6 mm x 9.5 mm
Light spot direction Vertical 2)
Housing material ABS
Display

LED indicator green: power on

LED indicator, yellow: Status switching output Q

Optics material PMMA
Connection type Male connector M8, 4-pin
Weight 20 g



SICK SENSORS 1061770 KTM-WP117A1P Contrast Sensor
SICK SENSORS

1061770 | SICK SENSORS | KTM-WP117A1P Contrast Sensor

₹ 18,560.80
Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
Sensing distance ≤ 12.5 mm
Sensing distance tolerance ± 3 mm
Housing design Small
Light source LED, RGB 1)
Wave length 470 nm, 525 nm, 625 nm
Light emission Long side of housing
Light spot size 1.6 mm x 9.5 mm
Light spot direction Vertical 2)
Housing material ABS
Display

LED indicator green: power on

LED indicator, yellow: Status switching output Q

Optics material PMMA
Connection type Male connector M8, 4-pin
Weight 20 g
