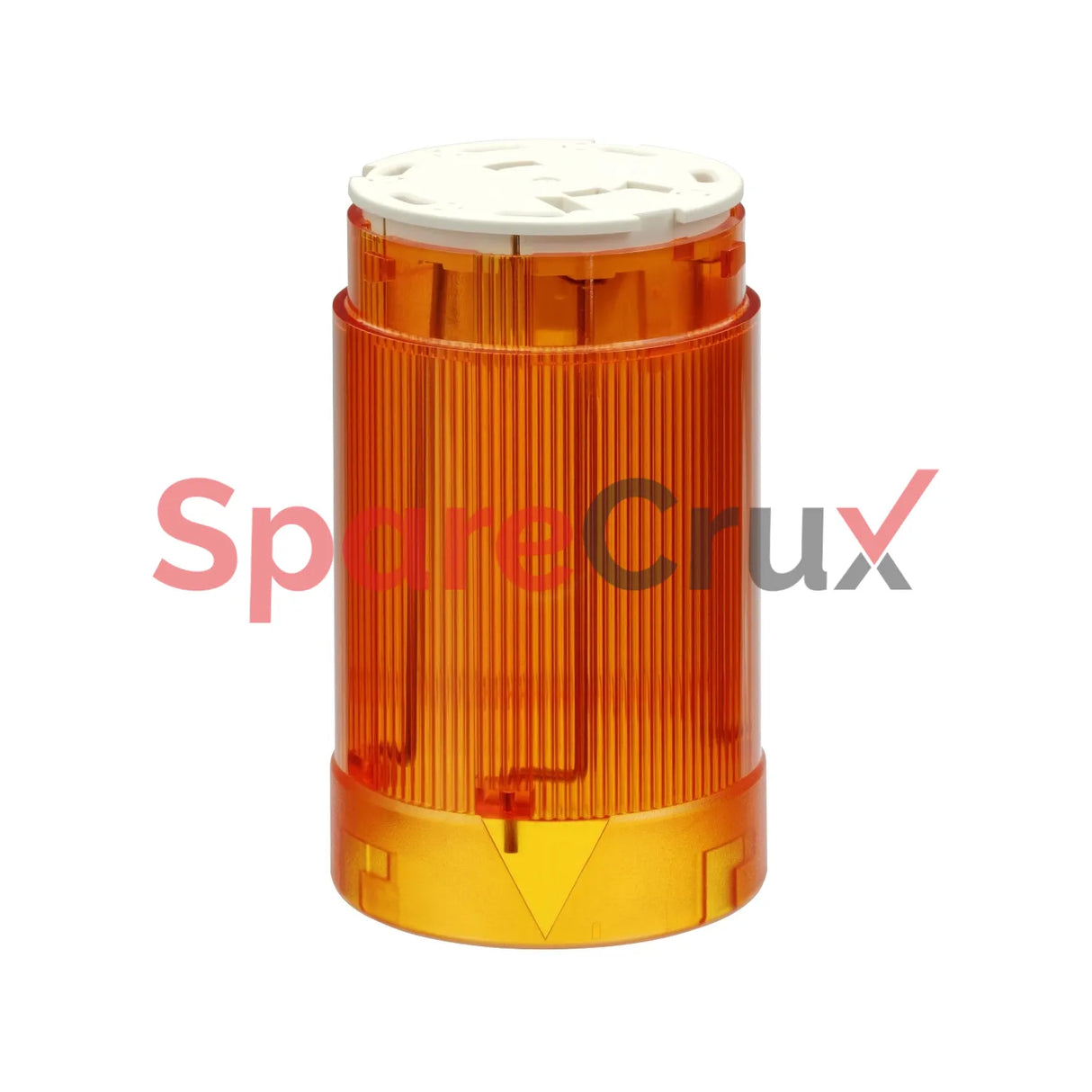

XVMC35 | SCHNEIDER ELECTRIC | illuminated unit - Ø 45 - yellow - BA 15d - bulb not included - <= 230 V AC DC

₹ 1,121.00

₹ 950.00 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

XVMC35

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Description
Product Type Illuminated indicator unit (modular tower lights)
Lens / Colour Orange (Ø45 mm)
Bulb Type BA 15d incandescent or flash discharge (bulb not included)
Rated Supply Voltage ≤ 230 V AC / DC
Power Dissipation ≤ 5 W
Connections / Terminals Screw terminals: 1 × 0.325…1 × 1.5 mm²
Insulation Voltage (Ui) 250 V per IEC 60947‑1
Impulse Withstand (Uimp) 4 kV per IEC 60947‑1
Luminance ≈ 650 cd/m²
Dimensions (W×H×D) 47 × 65 × 47 mm
Weight ≈ 0.04 kg
Certifications / Standards EN/IEC 60947‑1, IEC 60947‑5‑1, CCC
IP Rating IP40 (all orientations); IP42 (vertical position)
Ambient Temp – Operation −10 °C … +50 °C
Ambient Temp – Storage −25 °C … +70 °C
