SPARECRUX is NOT an authorized distributor for IGUS

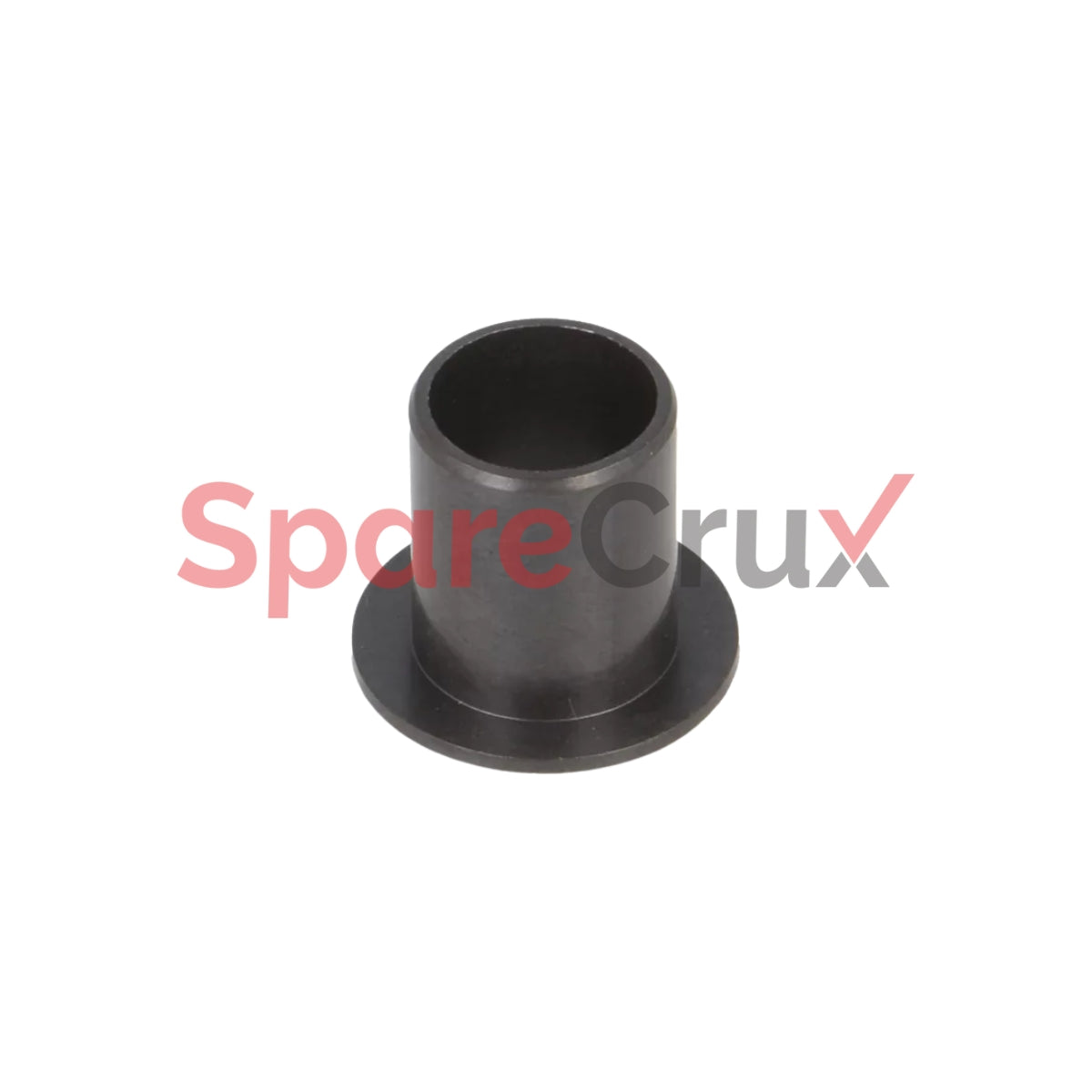

XFM-1012-15 | IGUS | Bearing, Sleeve Bearing with Flange

₹ 2,926.40

₹ 2,480.00 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

XFM-1012-15

Original Equipment Manufacturer

IGUS

Description
Parameter Details
Manufacturer IGUS (Germany)
Part Number XFM-1012-15
Product Type Plain Bearing (Sleeve Bushing)
Type Flanged bearing
Material iglidur® X (high-performance polymer)
Inner Diameter (ID) 10 mm
Outer Diameter (OD) 12 mm
Length 15 mm
Flange Diameter 18 mm
Lubrication Dry running (no grease required)
Operating Temperature -100°C to +250°C (short term up to +315°C)
Max Surface Pressure ~150 MPa
Shaft Tolerance h9 recommended
Housing Tolerance H7
