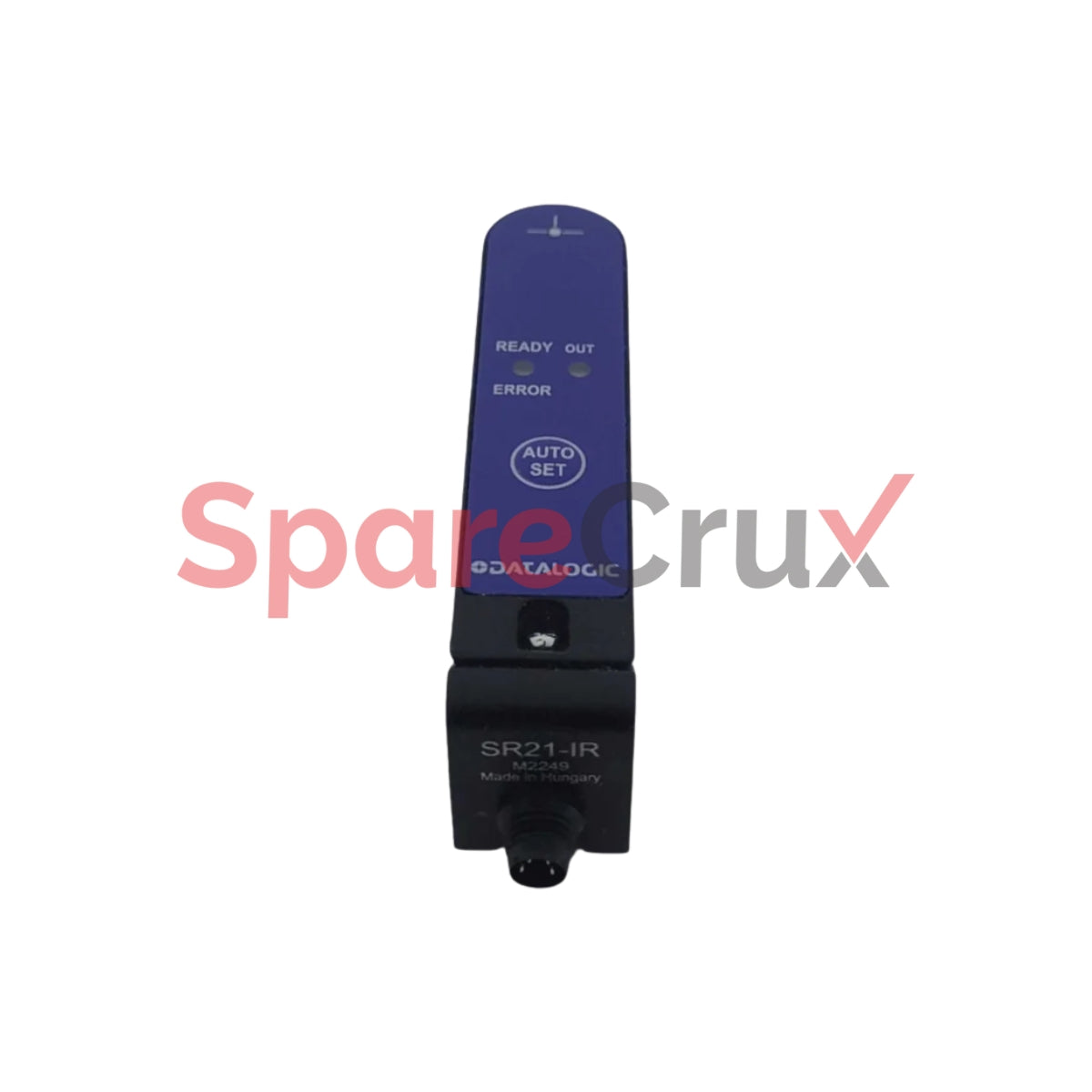

SR21-IR | DATALOGIC | Photoelectric Fork Infrared LED emission Label Sensor

₹ 16,799.42

₹ 14,236.80 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

SR21-IR

Original Equipment Manufacturer

DATALOGIC

Description

Parameter Value
Brand Datalogic / Datasensing
Model SR21-IR (Part No. 953151070)
Product Type Fork / Slot Photoelectric Sensor
Light Source Infrared LED (880 nm)
Slot Width 2 mm
Fork Depth 50 mm
Detection Distance 7.5 mm
Minimum Detectable Object 0.5 mm
Output Type Selectable NPN / PNP
Supply Voltage 10–30 VDC
Output Current 100 mA max
Response Time 20 µs
Switching Frequency 25 kHz
Connection M8, 4-pin connector
Protection Rating IP65
Operating Temperature −20°C to +60°C
Application Label detection, packaging, printing & converting machines
