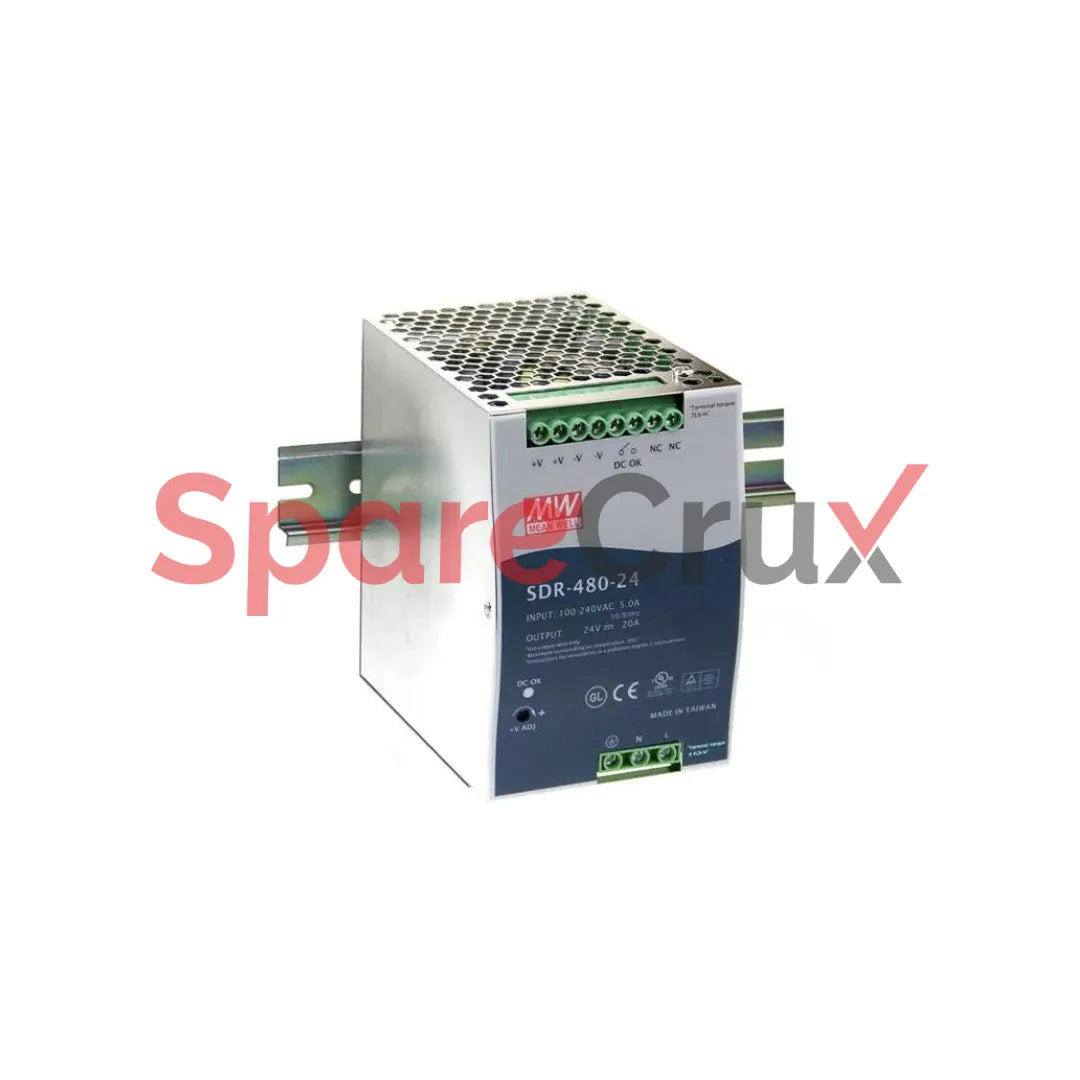

SDR-480P-24 | MEAN WELL | Power Supply 24V, 20A

₹ 16,815.00

₹ 14,250.00 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

SDR-480P-24

Original Equipment Manufacturer

MEAN WELL

Description

Specification Value
Model / Series SDR-480P-24
Type / Function DIN Rail Enclosed AC-DC Power Supply
Input Voltage 90–264 V AC / 127–370 V DC
Output Voltage 24 V DC (adjustable 24–28 V)
Output Current 20 A (continuous) / 30 A (peak)
Output Power 480 W
Efficiency Up to 94%
Cooling Method Free air convection
Operating Temperature –25°C to +70°C (derating applies above 50°C)
Dimensions (L × W × H) 85.5 × 125.2 × 128.5 mm
Mounting DIN Rail TS-35/7.5 or 15
MEAN WELL

SDR-480P-24 | MEAN WELL | Power Supply 24V, 20A

₹ 14,250.00
Specification Value
Model / Series SDR-480P-24
Type / Function DIN Rail Enclosed AC-DC Power Supply
Input Voltage 90–264 V AC / 127–370 V DC
Output Voltage 24 V DC (adjustable 24–28 V)
Output Current 20 A (continuous) / 30 A (peak)
Output Power 480 W
Efficiency Up to 94%
Cooling Method Free air convection
Operating Temperature –25°C to +70°C (derating applies above 50°C)
Dimensions (L × W × H) 85.5 × 125.2 × 128.5 mm
Mounting DIN Rail TS-35/7.5 or 15
