SPARECRUX is NOT an authorized distributor for SCHNEIDER ELECTRIC

This product has been discontinued, and manufacturer warranty or support may no longer be available.

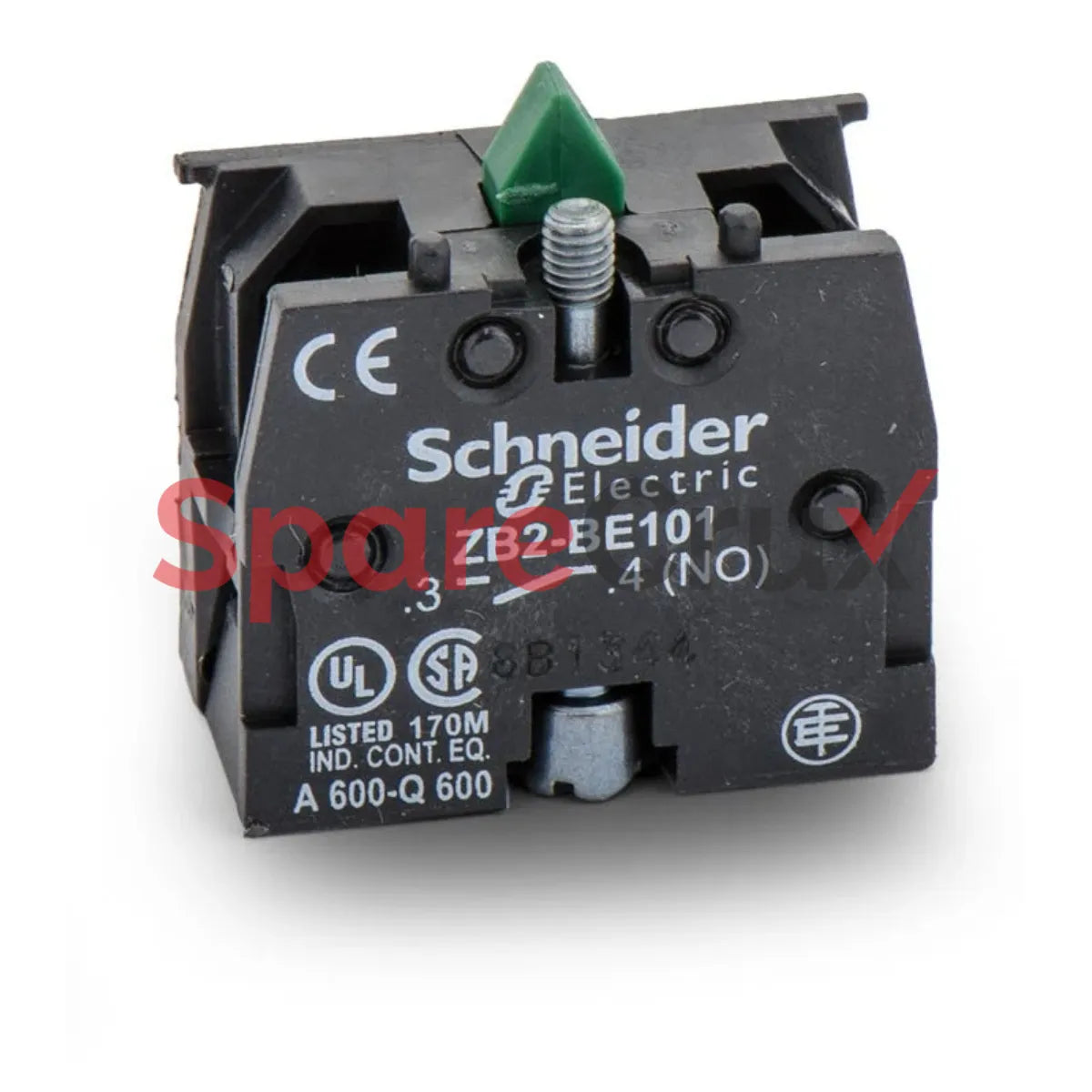

RB2-BE-101 | SCHNEIDER ELECTRIC | Harmony 22 mm Push‑Button Contact Block 10 A

₹ 141.54

₹ 119.95 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

RB2-BE-101

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Description
Part Number RB2‑BE‑101
Series Harmony ZB2 / XB4 Push‑Button System
Contact Configuration 1 NO (Normally Open, SPST)
Rated Current 10 A (Conventional Thermal Current Ithe)
Rated Voltage 240 V AC resistive load; up to 600 V AC / DC depending on usage
Rated Insulation Voltage (Ui) 600 V (Pollution Degree 3)
Impulse Withstand Voltage (Uimp) 6 kV (IEC 60947‑1)
Terminal Type Screw‑clamp terminals (1 × 2.5 mm² or 2 × 1.5 mm² conductors)
Mechanical Durability 1 000 000 life cycles
Rated Contact Power (DC‑13) 48 W @ 24 V, 40 W @ 120 V (1 000 000 cycles @ 3 600 c/h)
Operating Force 13–15 N
Resistance Across Contacts ≤ 25 MΩ (new condition)
Ambient Operating Temperature –25 °C to +70 °C
Storage Temperature –40 °C to +70 °C
Standards & Certifications IEC 60947‑5‑1, EN 60204‑32, UL 508, CSA C22.2 No 14; CE, UL, CSA, EAC
Protection Rating IP20 (enclosed environment)
Weight ≈ 0.02 kg (0.04 lb)
