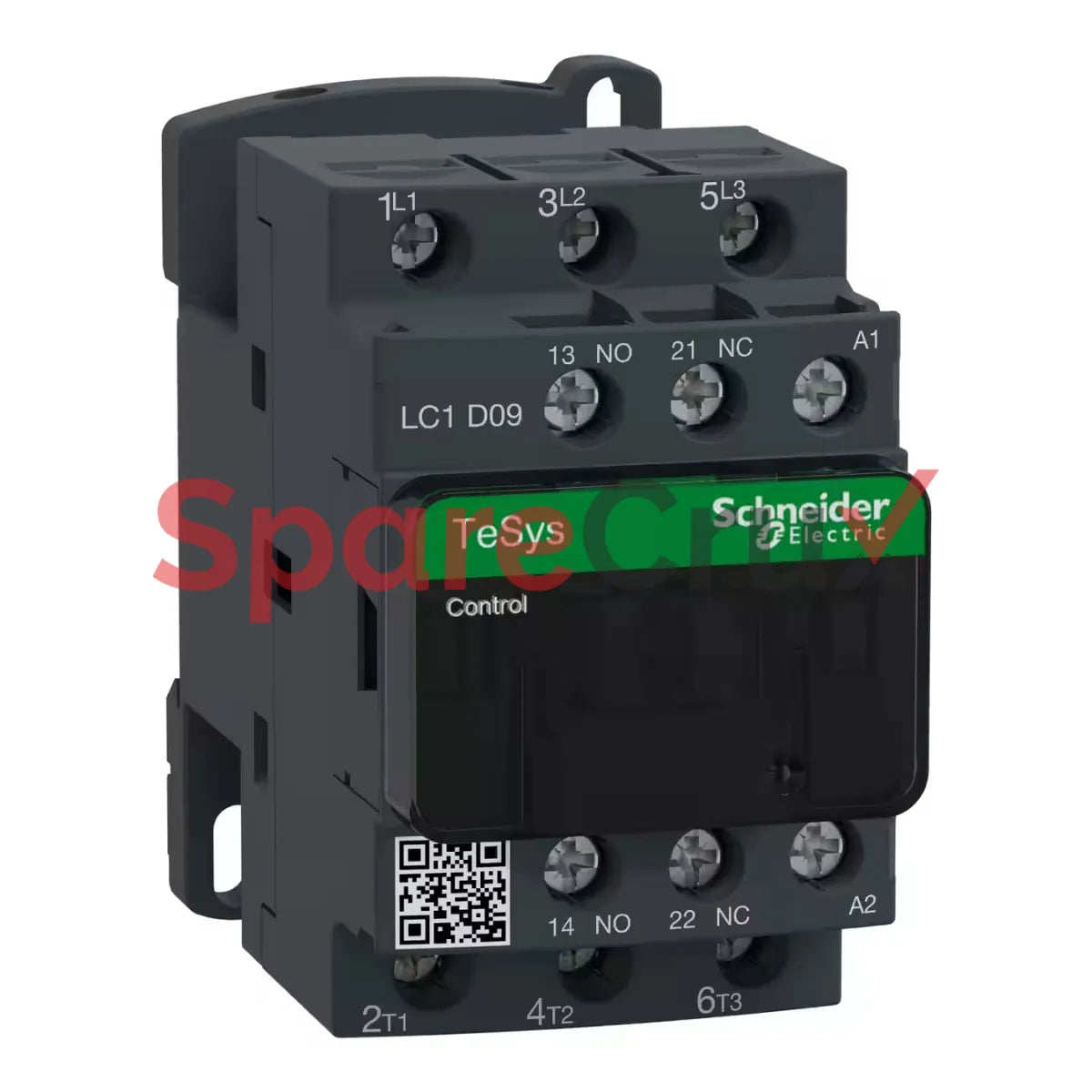

LC1D09M7 | SCHNEIDER ELECTRIC | TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 220 V AC coil

₹ 6,500.20

₹ 5,508.64 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

LC1D09M7

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Description
Manufacturer Schneider Electric (TeSys D Series)
Device Type 3‑Pole Contactor, 3 NO power contacts
Rated Current (Ie) 9 A @ ≤ 440 VAC (AC‑3); 9 A (AC‑3e); 25 A (AC‑1)
Motor Power Rating ≈ 2.2 kW @ 230 VAC; 4 kW @ 400 V; 5.5 kW @ 500–690 V
Coil Voltage (Uc) 220 VAC, 50/60 Hz
Auxiliary Contacts 1 NO + 1 NC (mechanically linked)
Rated Insulation Voltage (Ui) 690 VAC (IEC); 600 VAC (UL/CSA)
Impulse Withstand (Uimp) 6 kV
Tightening Torque 1.7 N·m on screw clamp terminals
Connections Screw clamp terminals for 1…4 mm² flexible/solid conductors
Operating Time Close: 12–22 ms; Open: 4–19 ms
Electrical Durability 2 M cycles @ 9 A AC‑3; 0.6 M @ 25 A AC‑1
Mechanical Durability 15 million operations
Pollution / Overvoltage Pollution Degree 3, Overvoltage Category III
Standards & Certifications IEC 60947‑4‑1; IEC 60947‑5‑1; UL 508; CSA; CE; CCC; DNV; GL; GOST; RINA; LROS
IP Rating IP20 (front face)
Operating Temp. −40 °C to +60 °C (up to +70 °C with derating)
Dimensions Height: 77 mm; Width: 45 mm; Depth: 86 mm
Weight ≈ 0.32 kg
