SPARECRUX is an authorized distributor for HENSEL ELECTRIC

KV PC 8109 | HENSEL | Distribution Box IP 65

₹ 4,229.12

₹ 3,584.00 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

KV PC 8109

Original Equipment Manufacturer

HENSEL ELECTRIC

Description

KV PC 8109

  • 9 modules: 1 x 9 x 18 mm
  • Without PE and N terminal
  • 1-row
  • Box walls without knockouts
  • Order PE/N terminals separately
  • For indoor (normal environment and/or protected outdoor) and outdoor installation (harsh environment and/or outdoor)
  • For the installation of DIN rail equipment up to 63 A, top hat profile 35 mm
  • With transparent lid, sealable
  • Locking device for hinged lid and sealing facility see accessories
  • With cable entry cover
  • Protective cover can be cut out
  • Degree of protection: IP 65
  • Colour: grey, RAL 7035

Technical Data

rated insulation voltage Ui = 400 V A.C.
Ui = 1000 V D.C.
power dissipation capability Pde = 16 watts at 30 K according to EN 60670-24
protection class II
material PC (Polycarbonate)

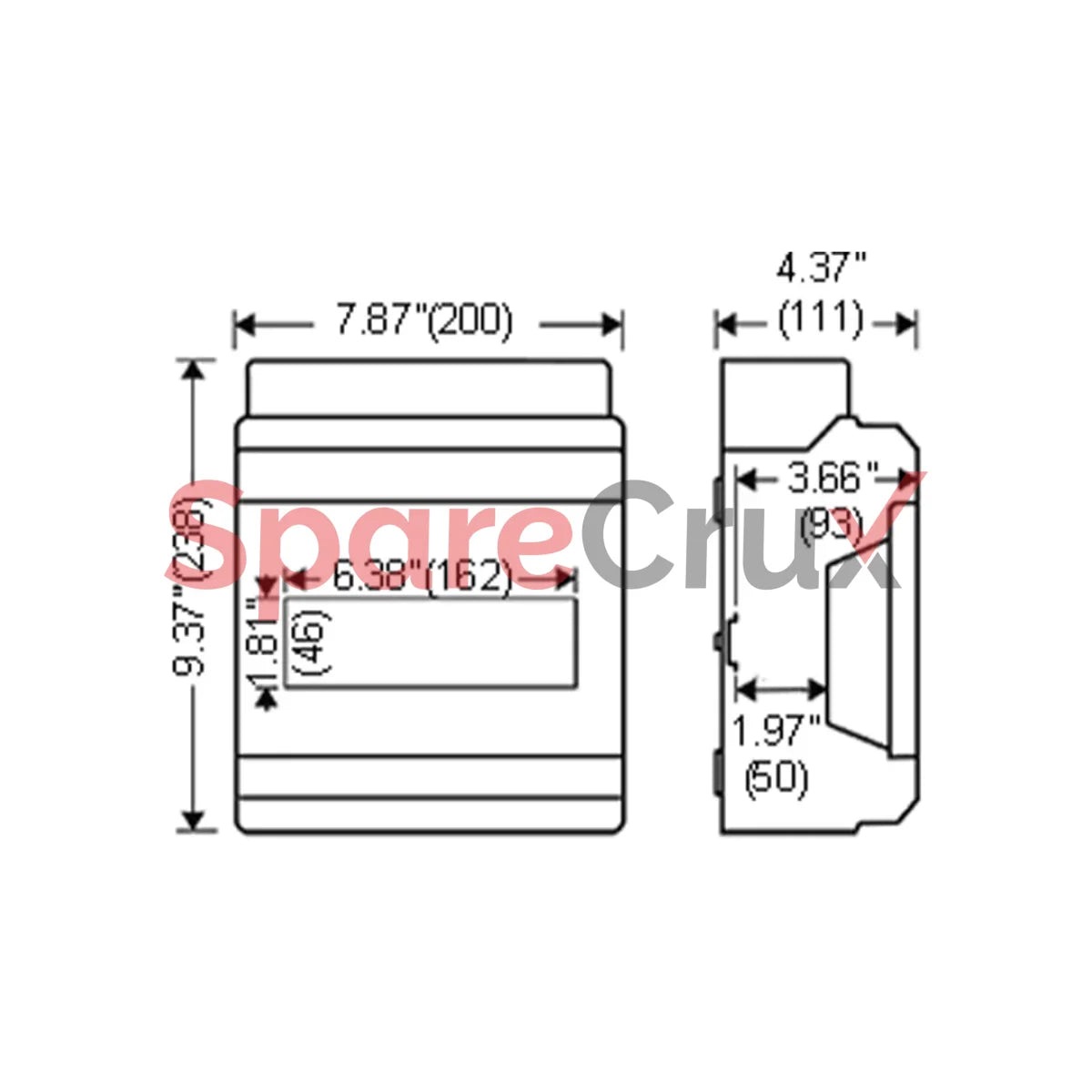

height 238 mm
width 200 mm
depth 111 mm
weight 0,948 kg
Kv Pc 8109 | Hensel Distribution Box Ip 65
HENSEL ELECTRIC

KV PC 8109 | HENSEL | Distribution Box IP 65

₹ 3,584.00

KV PC 8109

Technical Data

rated insulation voltage Ui = 400 V A.C.
Ui = 1000 V D.C.
power dissipation capability Pde = 16 watts at 30 K according to EN 60670-24
protection class II
material PC (Polycarbonate)
height 238 mm
width 200 mm
depth 111 mm
weight 0,948 kg
