SPARECRUX is an authorized distributor for HENSEL ELECTRIC

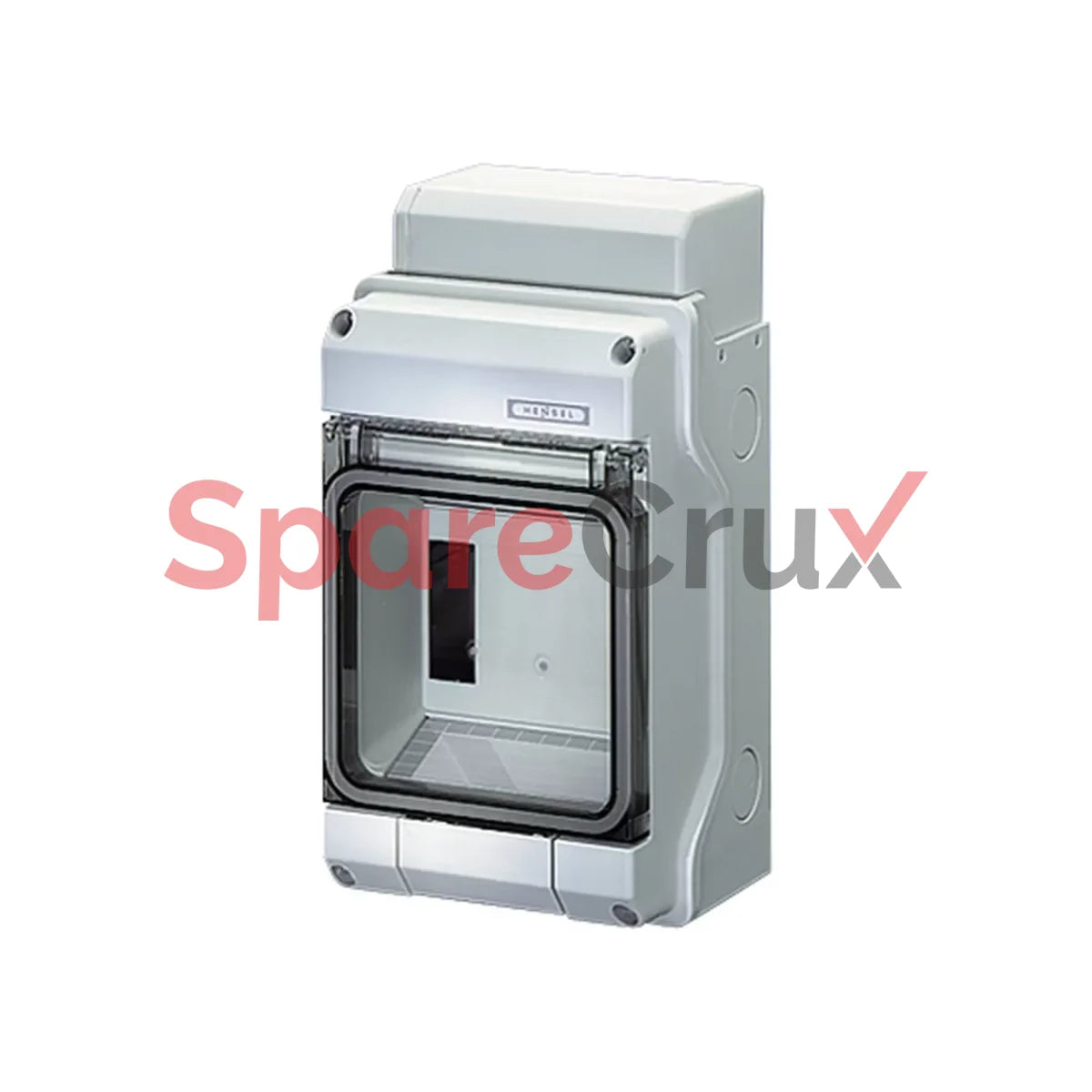

KV 7104 | HESNEL | Circuit Breaker Boxes IP 65

₹ 2,931.12

₹ 2,484.00 (Excl. Tax)

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

KV 7104

Original Equipment Manufacturer

HENSEL ELECTRIC

Description

KV 7104

  • 4.5 modules: 1 x 4.5 x 18 mm
  • 1-row
  • Knockouts: top and bottom walls 2x M20 and 1x M25/32 each
  • Per PE/N number x cross section 2 x 25 mm², 4 x 4 mm² Cu, FIXCONNECT® terminal technology, for terminal technology refer to technical data
  • For the installation of DIN rail equipment up to 63 A, top hat profile 35 mm
  • With transparent lid, sealable
  • Locking device for hinged lid and sealing facility see accessories
  • With cable entry cover
  • Protective cover can be cut out
  • Degree of protection: IP 65
  • Colour: grey, RAL 7035

Technical Data

rated insulation voltage Ui = 400 V A.C.
power dissipation capability Pde = 12 watts at 30 K according to EN 60670-24
protection class II
material PS (Polystyrene)

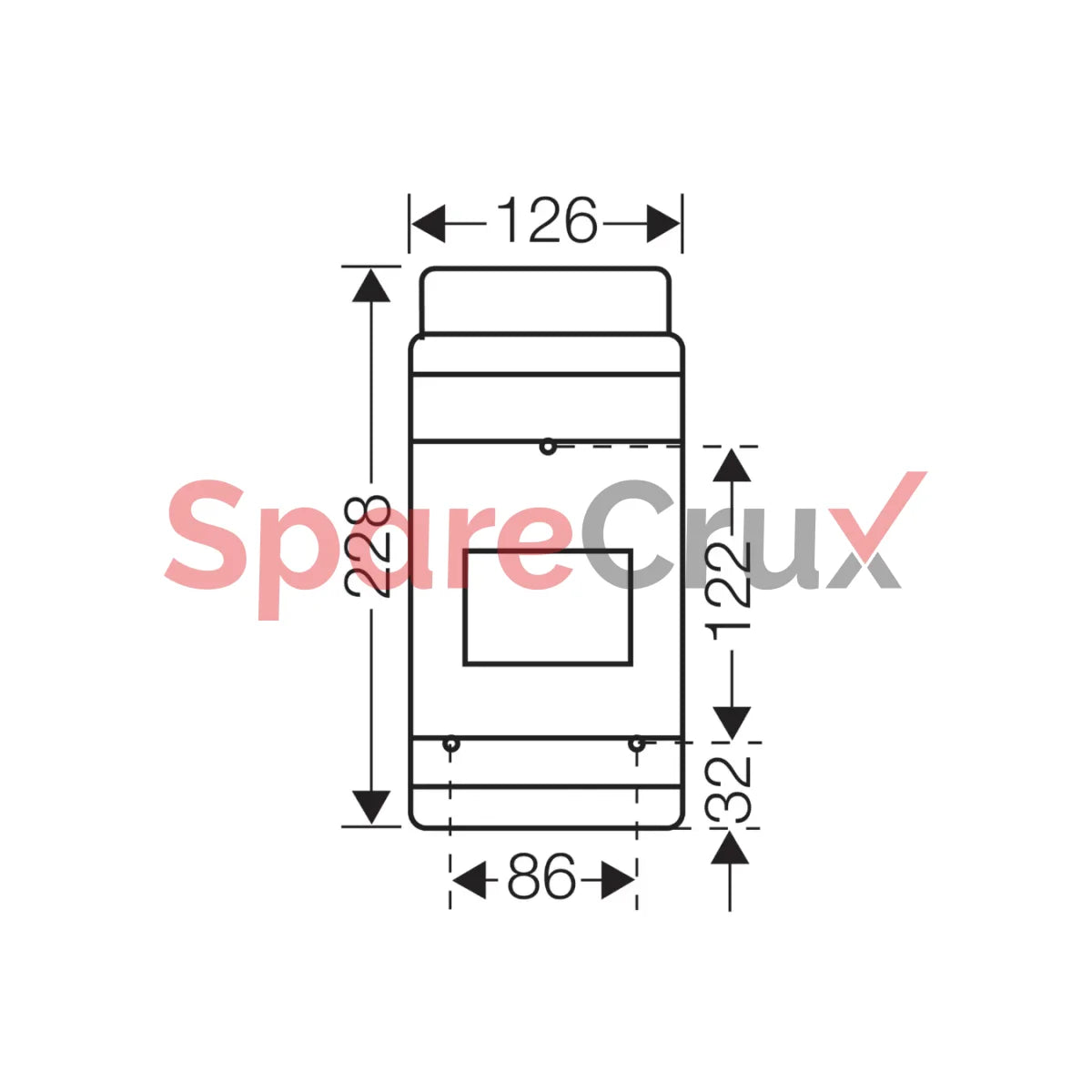

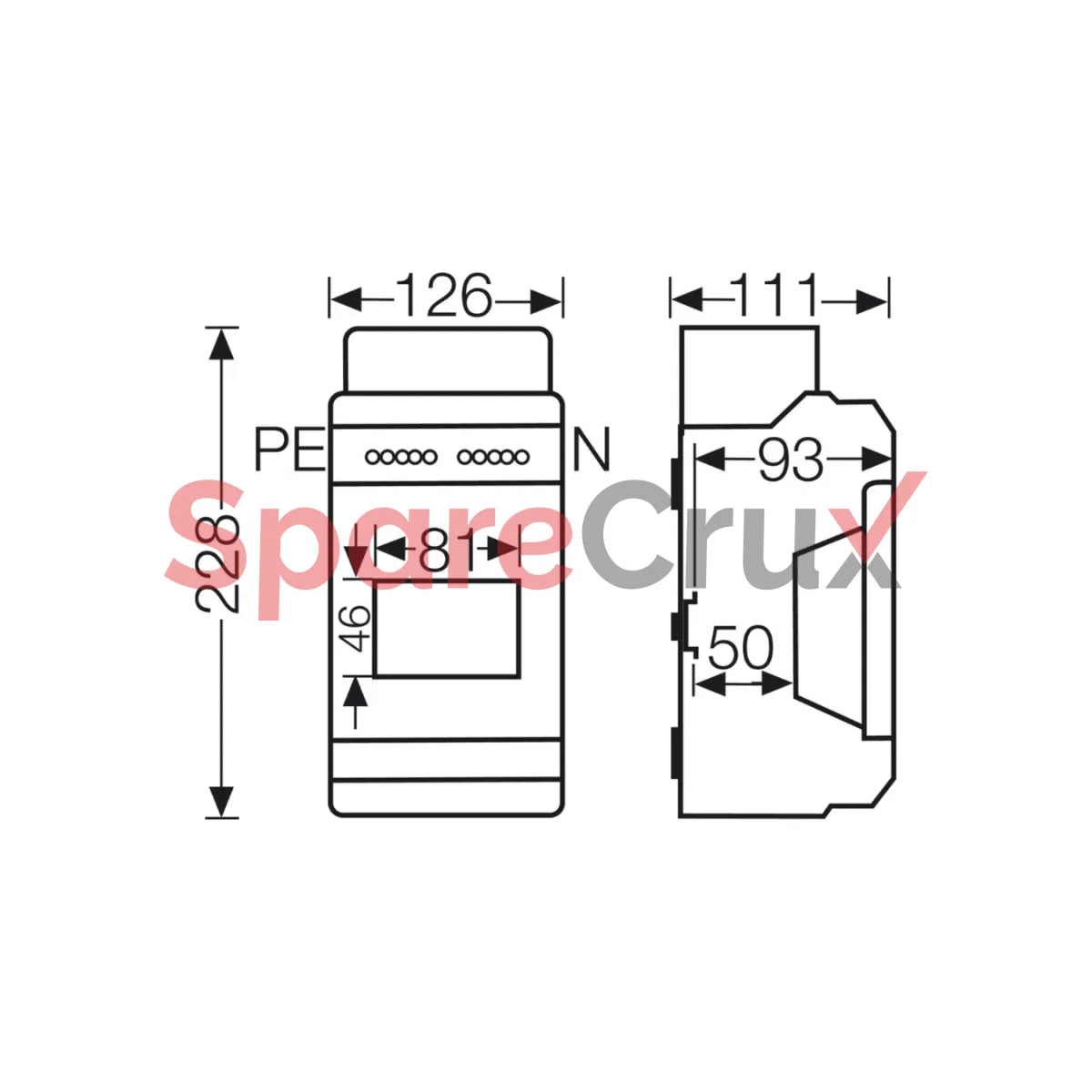

width 126 mm
height 228 mm
depth 111 mm
weight 0,614 kg
