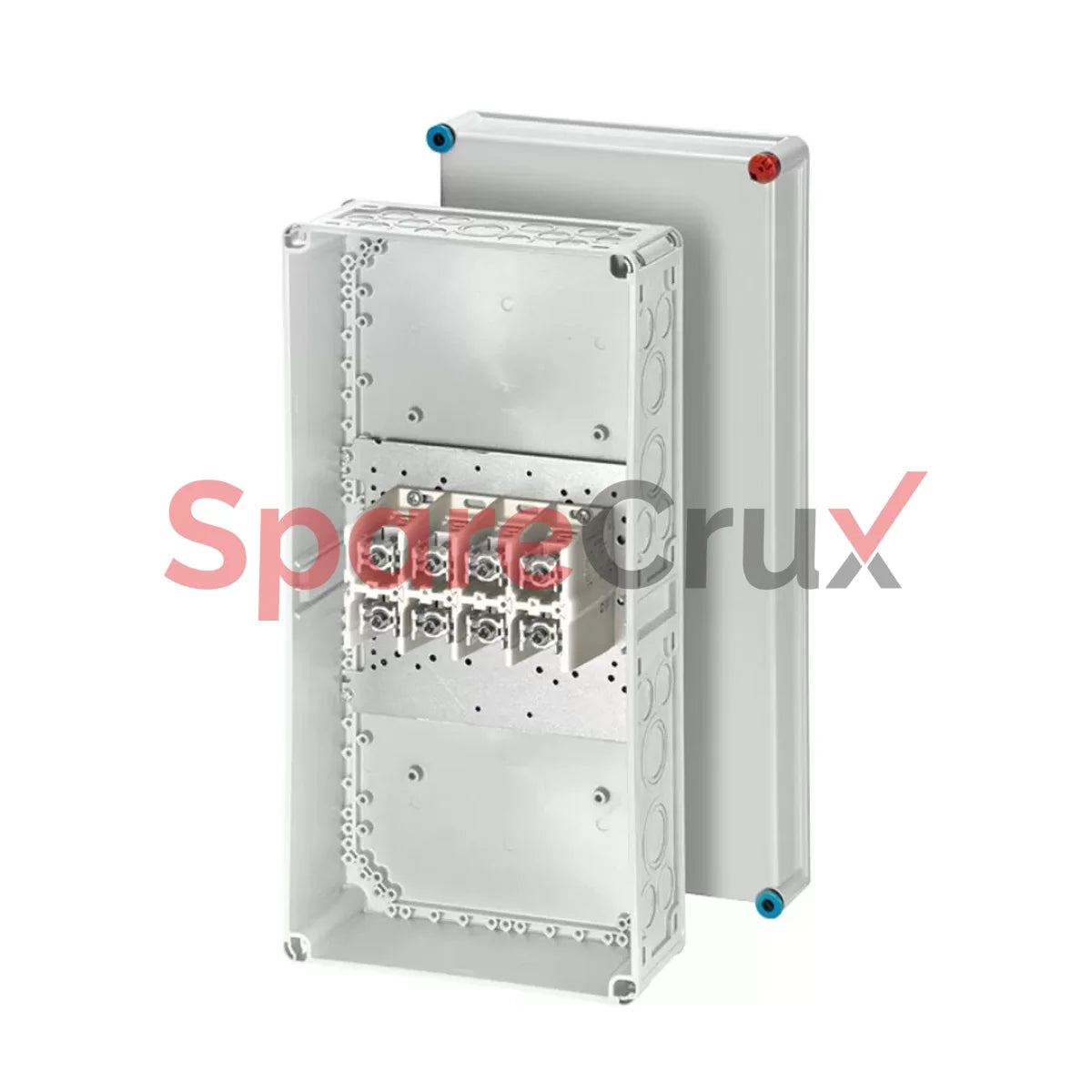

K 2404 | HENSEL | Cable junction box
₹ 53,468.16
₹ 45,312.00 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
4-pole per pole 2 x 25-185/240 mm², 4 x 25-120 mm², conductors can be inserted from the front into the clamping unit, terminal technology, see annex DK Cable junction boxes
Sealable
Order cable glands, flanges and other accessories separately as required
Before connecting, aluminum conductors must be pre-treated according to the appropriate technical recommendations, see technical information aluminum conductors
For normal environment and protected outdoor
Colour: grey, RAL 7035
Technical Data
rated insulation voltage
Ui= 690 V A.C./D.C.
rated current:
400 A
material
PC (Polycarbonate)
degree of protection
IP 65
conductor cross section
2 x 25-50 Cu/Alu, sol (round) mm² 2 x 25-240 Cu/Alu, s / f (round) mm² 2 x 50-185 Cu/Alu, sol (sector) mm² 2 x 35-240 Cu, s (sector) mm²
conductor cross section
2 x 95-185 Alu, s (sector) mm² 4 x 25-50 Cu/Alu, sol (round) mm² 4 x 25-120 Cu/Alu, s / f (round) mm² 4 x 50-120 Cu/Alu, sol (sector) mm²
conductor cross section
4 x 35-120 Cu, s (sector) mm² 4 x 50-95 Alu, s (sector) mm²
width
300 mm
height
600 mm
depth
170 mm
weight
8,357 kg
tightening torque for terminal
40.0 Nm
