SPARECRUX is NOT an authorized distributor for SPIRAX SARCO

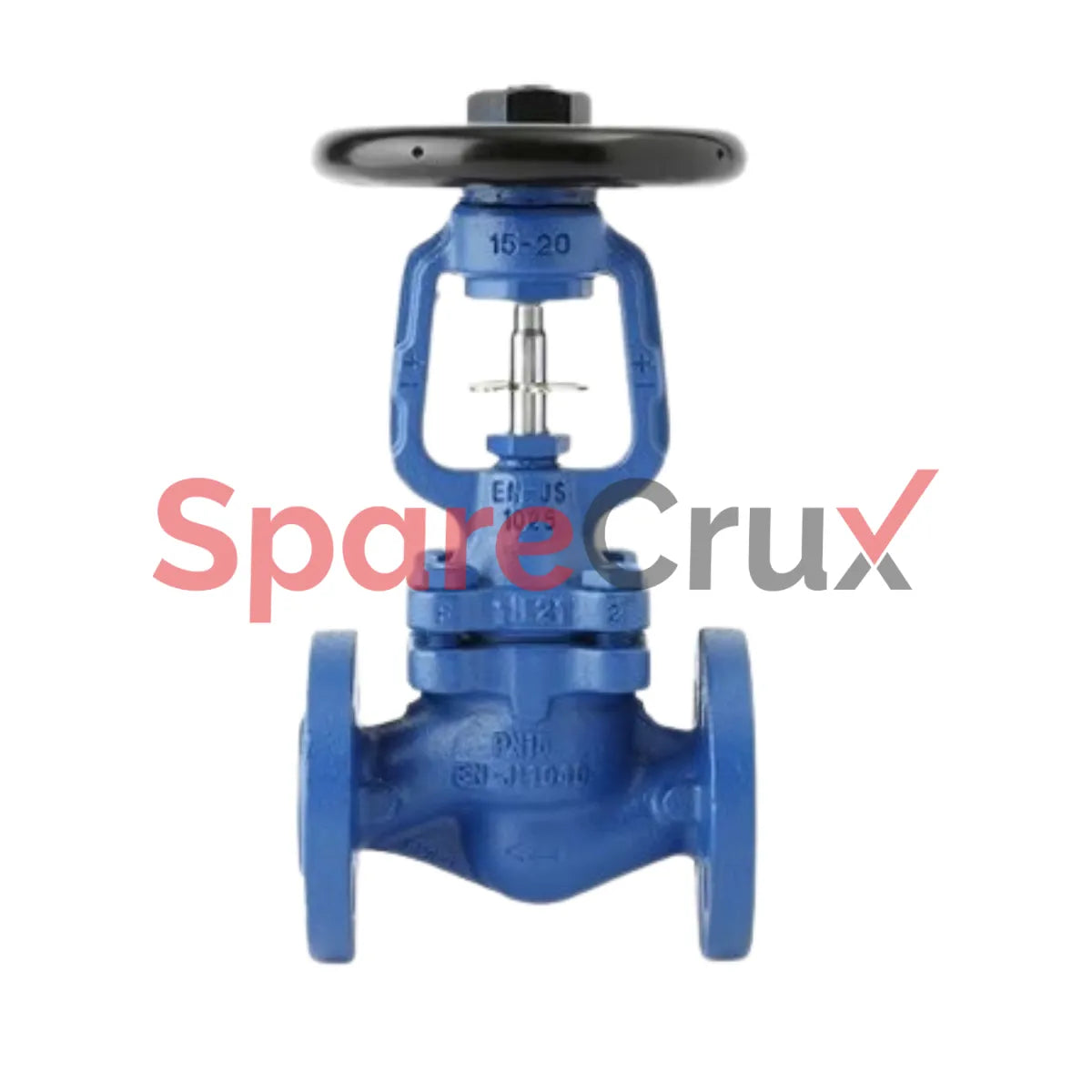

IM-P184-03 | SPIRAX SARCO | Stop Valve

₹ 155,819.00

₹ 132,050.00 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

IM-P184-03

Original Equipment Manufacturer

SPIRAX SARCO

Description
Specification Details
Brand / Manufacturer Spirax Sarco
Model / Type BSA64T (Bellows-Sealed Stop Valve)
Size Metric / Nominal Diameter DN50 (2″)
Pressure Rating PN 40 (flanged EN 1092) / ASME equivalent for PN40 class. :contentReference[oaicite:1]{index=1}
Body Material Stainless steel body (EN 10213 / ASTM CF8M) for BSA64T series. :contentReference[oaicite:2]{index=2}
Bonnet Material Carbon steel bonnet (for DN50 size) in BSA64T series. :contentReference[oaicite:3]{index=3}
Seat / Disc Material Stainless steel disc (EN 100222 / EN 10088) for DN50-100 sizes. :contentReference[oaicite:4]{index=4}
Bellows Seal Type Twin-ply stainless steel bellows for zero stem seal leak. :contentReference[oaicite:5]{index=5}
Application / Media Designed for steam, gas, liquid, condensate and water systems. :contentReference[oaicite:6]{index=6}
Maximum Allowable Pressure (PMA) / Temperature (TMA) 40 bar g at 50 °C / up to 400 °C @ ~25 bar g (for metal‐seat version) in PN40 range. :contentReference[oaicite:7]{index=7}
SPIRAX SARCO

IM-P184-03 | SPIRAX SARCO | Stop Valve

₹ 132,050.00
Specification Details
Brand / Manufacturer Spirax Sarco
Model / Type BSA64T (Bellows-Sealed Stop Valve)
Size Metric / Nominal Diameter DN50 (2″)
Pressure Rating PN 40 (flanged EN 1092) / ASME equivalent for PN40 class. :contentReference[oaicite:1]{index=1}
Body Material Stainless steel body (EN 10213 / ASTM CF8M) for BSA64T series. :contentReference[oaicite:2]{index=2}
Bonnet Material Carbon steel bonnet (for DN50 size) in BSA64T series. :contentReference[oaicite:3]{index=3}
Seat / Disc Material Stainless steel disc (EN 100222 / EN 10088) for DN50-100 sizes. :contentReference[oaicite:4]{index=4}
Bellows Seal Type Twin-ply stainless steel bellows for zero stem seal leak. :contentReference[oaicite:5]{index=5}
Application / Media Designed for steam, gas, liquid, condensate and water systems. :contentReference[oaicite:6]{index=6}
Maximum Allowable Pressure (PMA) / Temperature (TMA) 40 bar g at 50 °C / up to 400 °C @ ~25 bar g (for metal‐seat version) in PN40 range. :contentReference[oaicite:7]{index=7}
