SPARECRUX is NOT an authorized distributor for SCHNEIDER ELECTRIC

This product has been discontinued, and manufacturer warranty or support may no longer be available.

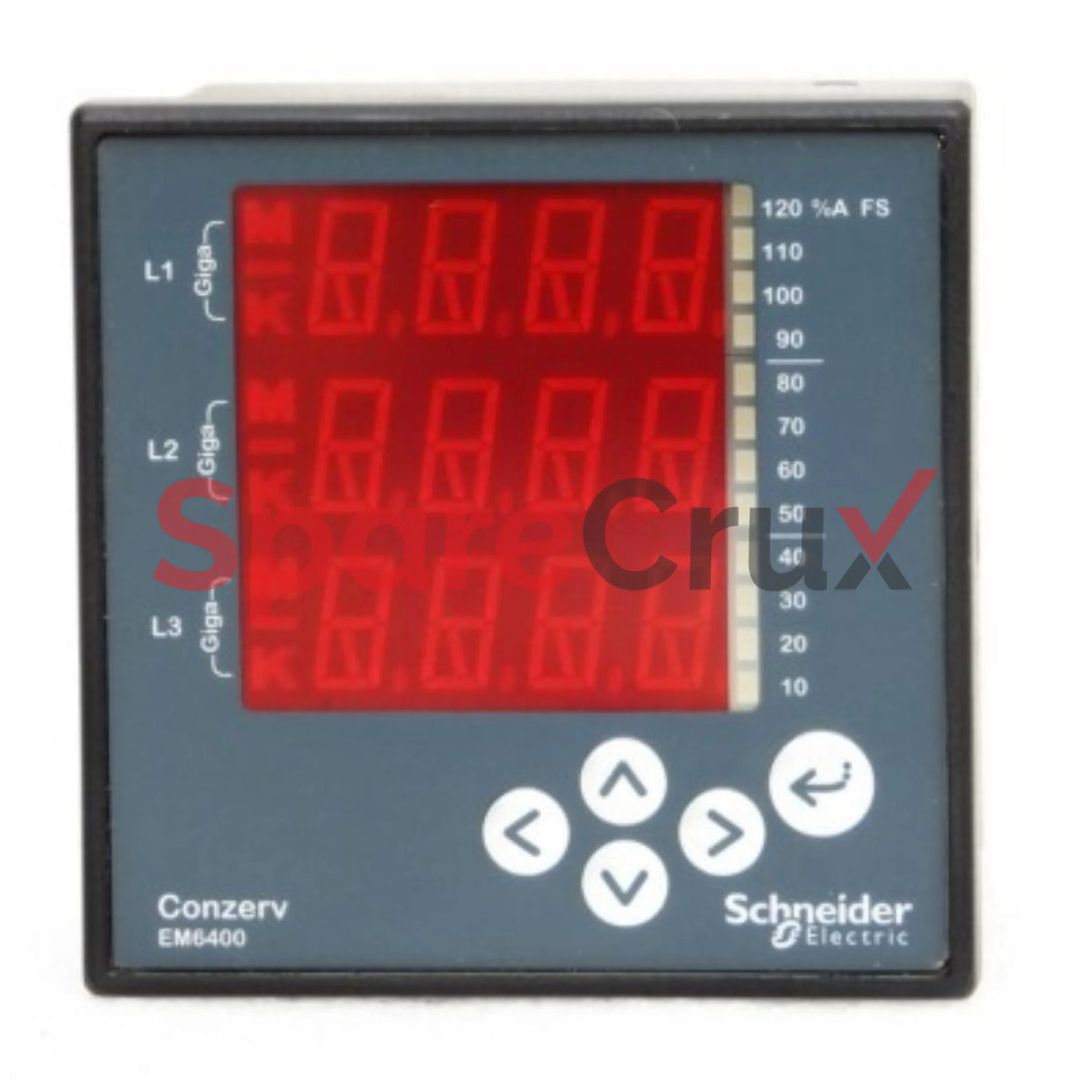

EM6400 | SCHNEIDER ELECTRIC | Conzerv 3‑Phase Class 1.0 Power & Energy Meter, RS‑485 / Modbus

₹ 9,528.50

₹ 8,075.00 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

EM6400

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Description
Function 3‑phase multi‑function power & energy meter
Current Input Range 50 mA to 6 A (CT secondary)
Voltage Input Range 80 to 600 V AC line‑to‑line
Accuracy Class Class 1.0
Auxiliary Supply 44–300 V AC/DC, <5 VA
Power Consumption < 5 VA
Communication RS‑485, Modbus RTU (baud up to 19200) turn0search2turn0search11
Display 3 × 4‑character LED rows + analog load bar turn0search5turn0search13
Passive Power Quality THD & individual harmonics to 15th order (IEC 61557‑12) turn0search12turn0search14
Measurement Parameters Voltage, Current, Power, Energy, Power Factor, Demand, Unbalance, Frequency, Harmonics, RPM
Environment –10 °C to +60 °C operating; –25 °C to +70 °C storage; 5–95 % RH non‑condensing turn0search2
Protection / Safety Category CAT III; double insulated accessible parts; isolation ≤ 2 kV between circuits turn0search2
Weight Approx. 400 g (unpacked), 500 g (packaged) turn0search2turn0search11
Panel Cut‑out 92 × 92 mm; bezel 96 × 96 mm; mounting depth ≈ 80 mm turn0search5turn0search2
Standards & Certifications IEC 62053‑21/24, IEC 61557‑12, IEC 61010‑1; cULus, CE, RCM, EAC; Green Premium compliant turn0search6turn0search13
SCHNEIDER ELECTRIC

EM6400 | SCHNEIDER ELECTRIC | Conzerv 3‑Phase Class 1.0 Power & Energy Meter, RS‑485 / Modbus

₹ 8,075.00
Function 3‑phase multi‑function power & energy meter
Current Input Range 50 mA to 6 A (CT secondary)
Voltage Input Range 80 to 600 V AC line‑to‑line
Accuracy Class Class 1.0
Auxiliary Supply 44–300 V AC/DC, <5 VA
Power Consumption < 5 VA
Communication RS‑485, Modbus RTU (baud up to 19200) turn0search2turn0search11
Display 3 × 4‑character LED rows + analog load bar turn0search5turn0search13
Passive Power Quality THD & individual harmonics to 15th order (IEC 61557‑12) turn0search12turn0search14
Measurement Parameters Voltage, Current, Power, Energy, Power Factor, Demand, Unbalance, Frequency, Harmonics, RPM
Environment –10 °C to +60 °C operating; –25 °C to +70 °C storage; 5–95 % RH non‑condensing turn0search2
Protection / Safety Category CAT III; double insulated accessible parts; isolation ≤ 2 kV between circuits turn0search2
Weight Approx. 400 g (unpacked), 500 g (packaged) turn0search2turn0search11
Panel Cut‑out 92 × 92 mm; bezel 96 × 96 mm; mounting depth ≈ 80 mm turn0search5turn0search2
Standards & Certifications IEC 62053‑21/24, IEC 61557‑12, IEC 61010‑1; cULus, CE, RCM, EAC; Green Premium compliant turn0search6turn0search13
