SPARECRUX is NOT an authorized distributor for OMRON

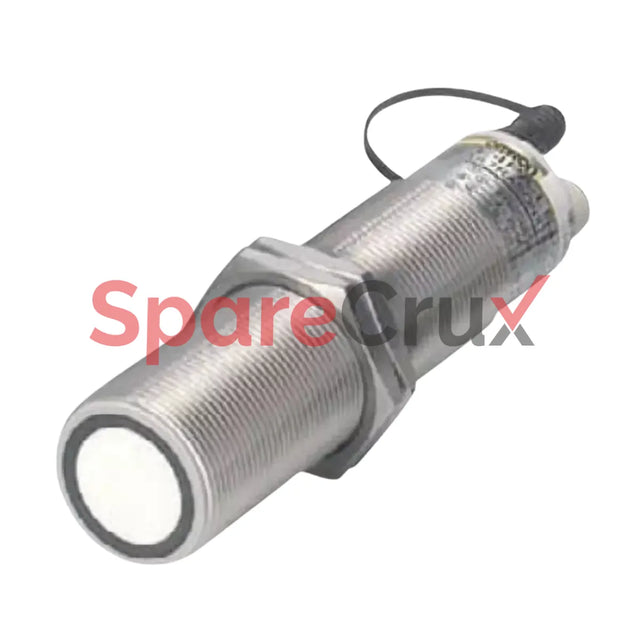

E4PA-LS400-M1-N | OMRON | Ultrasonic Sensor

₹ 113,279.06

₹ 95,999.20 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

E4PA-LS400-M1-N

Original Equipment Manufacturer

OMRON

Description
Parameter Specification
Type of Product Ultrasonic Displacement Sensor
Protection Class IEC60529 standard IP65
Case Material Stainless steel (SUS303)
Connection Type 5pole connector type
Analog Output Current output: 4–20mA (allowable load resistance 500Ω or less)
Voltage output: 0–10V (1000Ω or more)
Type Discriminating displacement sensor
Monotaro ID 8586356
Power Supply Voltage DC10–30 Ripple (pp) 10% or less
Linearity ± 1% FS or less
Ambient Temperature When using: 10 to +55℃, Storage: -40 to +85℃ (with no icing or condensation)
Ambient Humidity During use and storage: 35 to 85% RH (no condensation)
Power Consumption 1800 mW or less
Detection Distance 240～4000 mm
OMRON

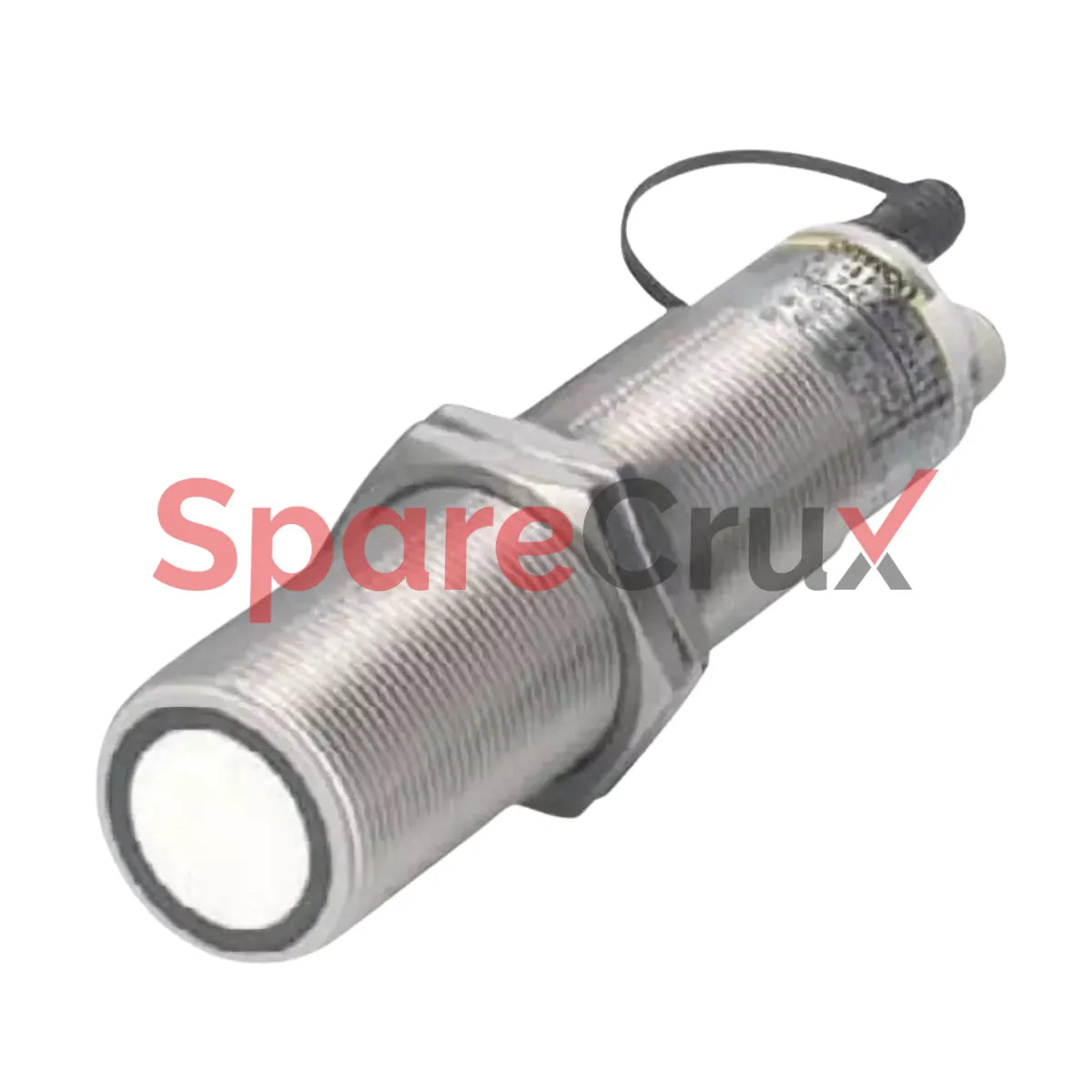

E4PA-LS400-M1-N | OMRON | Ultrasonic Sensor

₹ 95,999.20
Parameter Specification
Type of Product Ultrasonic Displacement Sensor
Protection Class IEC60529 standard IP65
Case Material Stainless steel (SUS303)
Connection Type 5pole connector type
Analog Output Current output: 4–20mA (allowable load resistance 500Ω or less)
Voltage output: 0–10V (1000Ω or more)
Type Discriminating displacement sensor
Monotaro ID 8586356
Power Supply Voltage DC10–30 Ripple (pp) 10% or less
Linearity ± 1% FS or less
Ambient Temperature When using: 10 to +55℃, Storage: -40 to +85℃ (with no icing or condensation)
Ambient Humidity During use and storage: 35 to 85% RH (no condensation)
Power Consumption 1800 mW or less
Detection Distance 240～4000 mm
