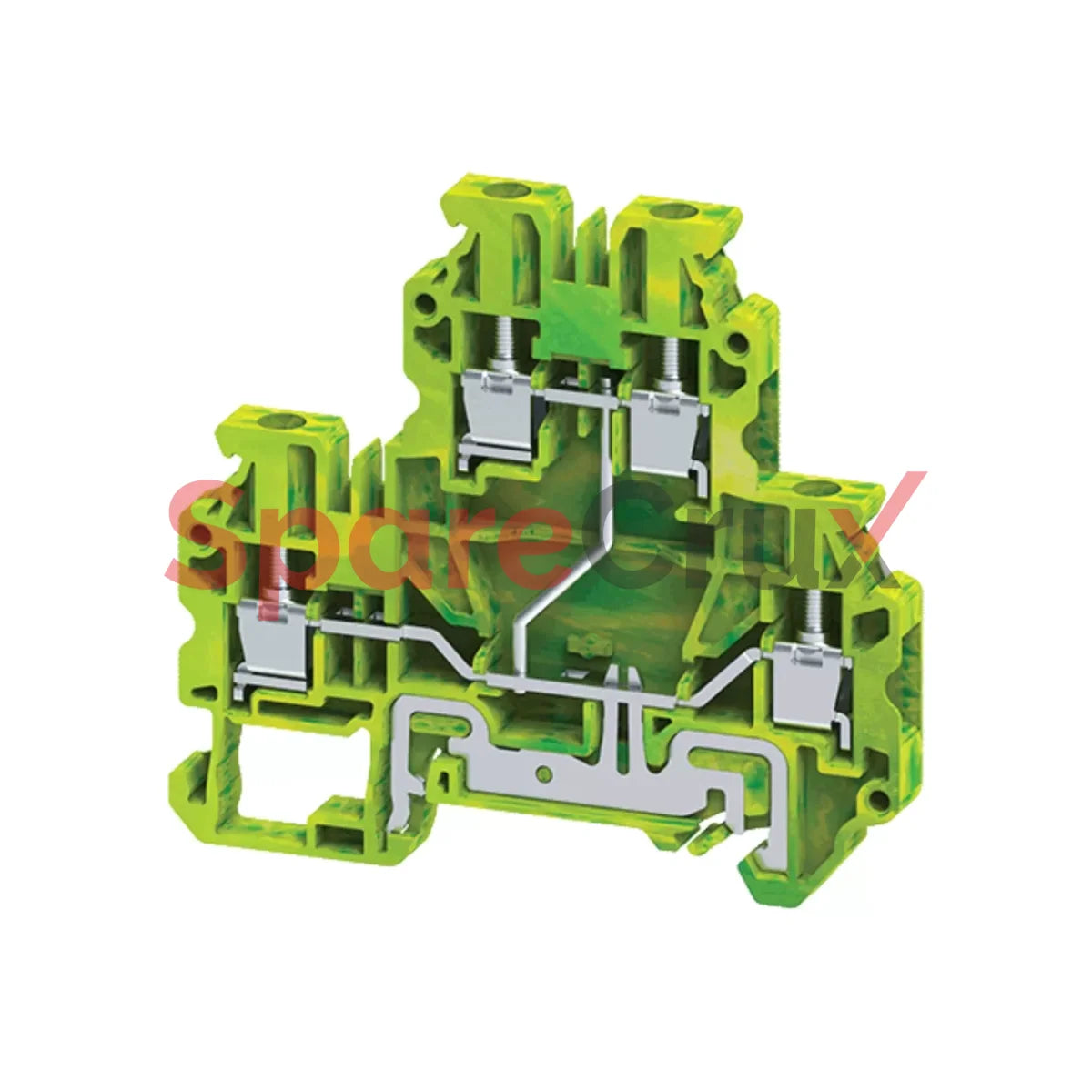

CYDLG4(I.S) | CONNECTWELL | 4 sq.mm 2 Level Feed Through Earthing Terminal Block

₹ 168.22

₹ 142.56 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Manufacturer Part Number (MPN)

CYDLG4(I.S)

Original Equipment Manufacturer

CONNECTWELL

Description

These blocks are ideal for use in applications requiring high density wiring . Interconnection / shorting is possible at both levels. CYDL4 & CYDL4(I.S) are the newer version of the with push in jumper possibility. It is suited for 800 V application and can accommodate larger K6 marking tags.CYDLG4(I.S) is the double level earthing Terminal Block.

Technical Data

Tightening Torque 0.5 Nm
Housing Material Polyamide
Standard Colour Green-Yellow
Product Function Earthing/Grounding
Wire Entry Orientation Side Entry
Mounting Possibility DIN 35/DIN 35-15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 8 KV
Pollution Degree 3
