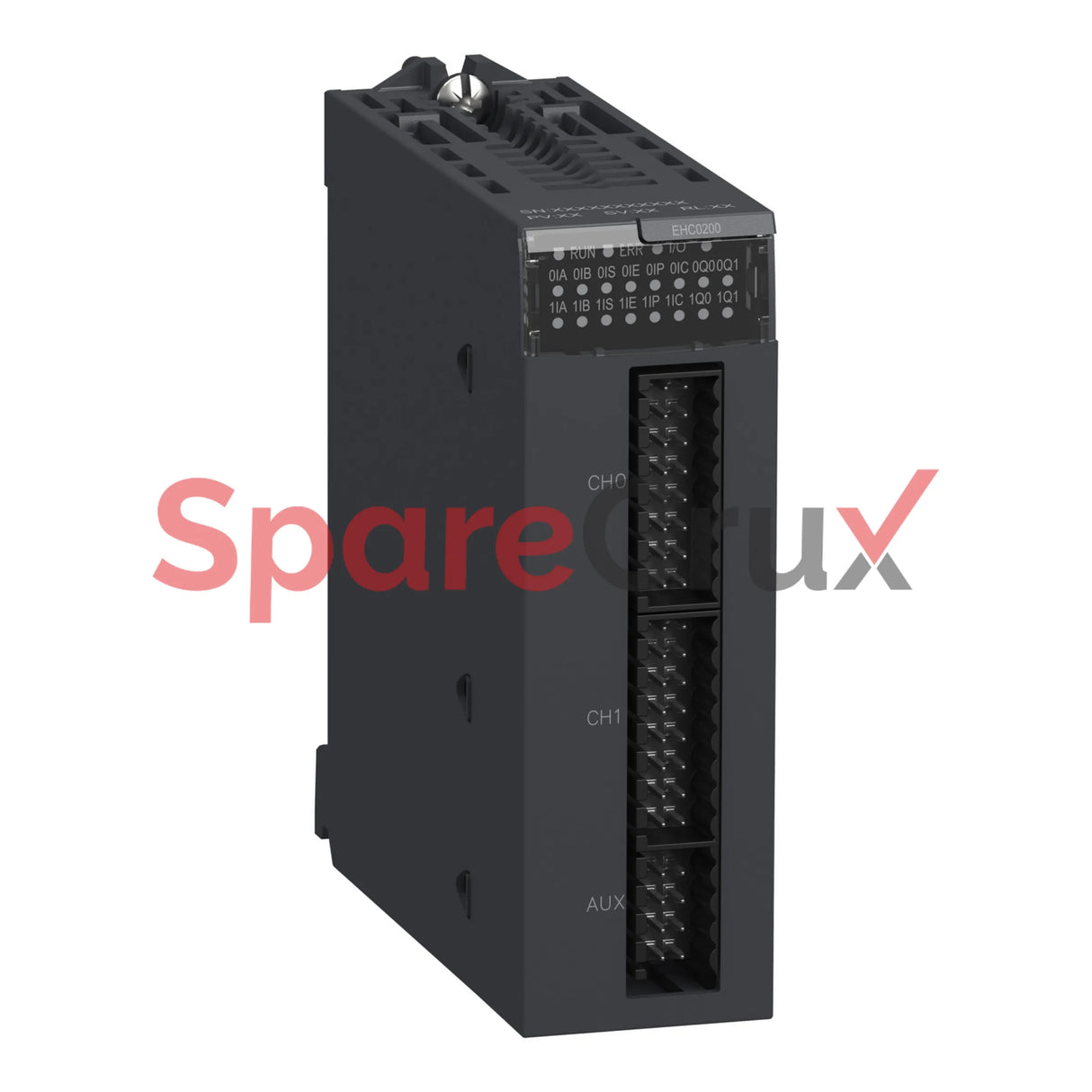

BMXEHC0200 | SCHNEIDER ELECTRIC | Modicon M340 High-Speed Counter Module, 2 Channels, 60 kHz

₹ 29,146.00

₹ 24,700.00 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

BMXEHC0200

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Description
Product Type High Speed Counter Module for Modicon M340 (Modicon X80 series)
Number of Channels 2
Maximum Counting Frequency ≤ 60 kHz
Number of Inputs 6 × 24 V DC (proximity sensors or incremental encoder)
Number of Outputs 2 × 24 V DC transistor outputs
Input Compatibility 2‑wire/3‑wire proximity sensor 19.2–30 V; incremental encoder BUZZ outputs 10–30 V
Counter Functions Loop (modulo) counting, down counting, width modulation, frequency measurement, time period measurement, ratio count, event counting, 32‑bit counter
Cycle Time 1 ms
Output Logic Configurable positive or negative logic
Output Current Limits ≤ 0.5 A per output; ≤ 2 A per module
Output Overload Protection Integrated
Short‑Circuit Protection 1.5 A integrated
Leakage Current ≤ 0.1 mA at logic 0
Voltage Drop (Logic 1) < 3 V
Isolation Voltage 1500 V for 60 s
Connection Interface 3 terminal blocks: 2 × 16-pin for counters; 1 × 10-pin for aux‑input & sensor power supply
Operating Input Power ~100 mA at 3.3 V bus; ~40 mA at 24 V rack; ~80 mA sensor load
Ingress Protection IP20
Weight ≈ 0.112 kg
Standards / Certifications EN 61131-2; EN 61000-6-4; EN 61000-6-2; EN 61010-2-201
Application Modicon M340 PAC high-speed counting (incremental encoder / proximity sensor)
