SPARECRUX is NOT an authorized distributor for BECKHOFF

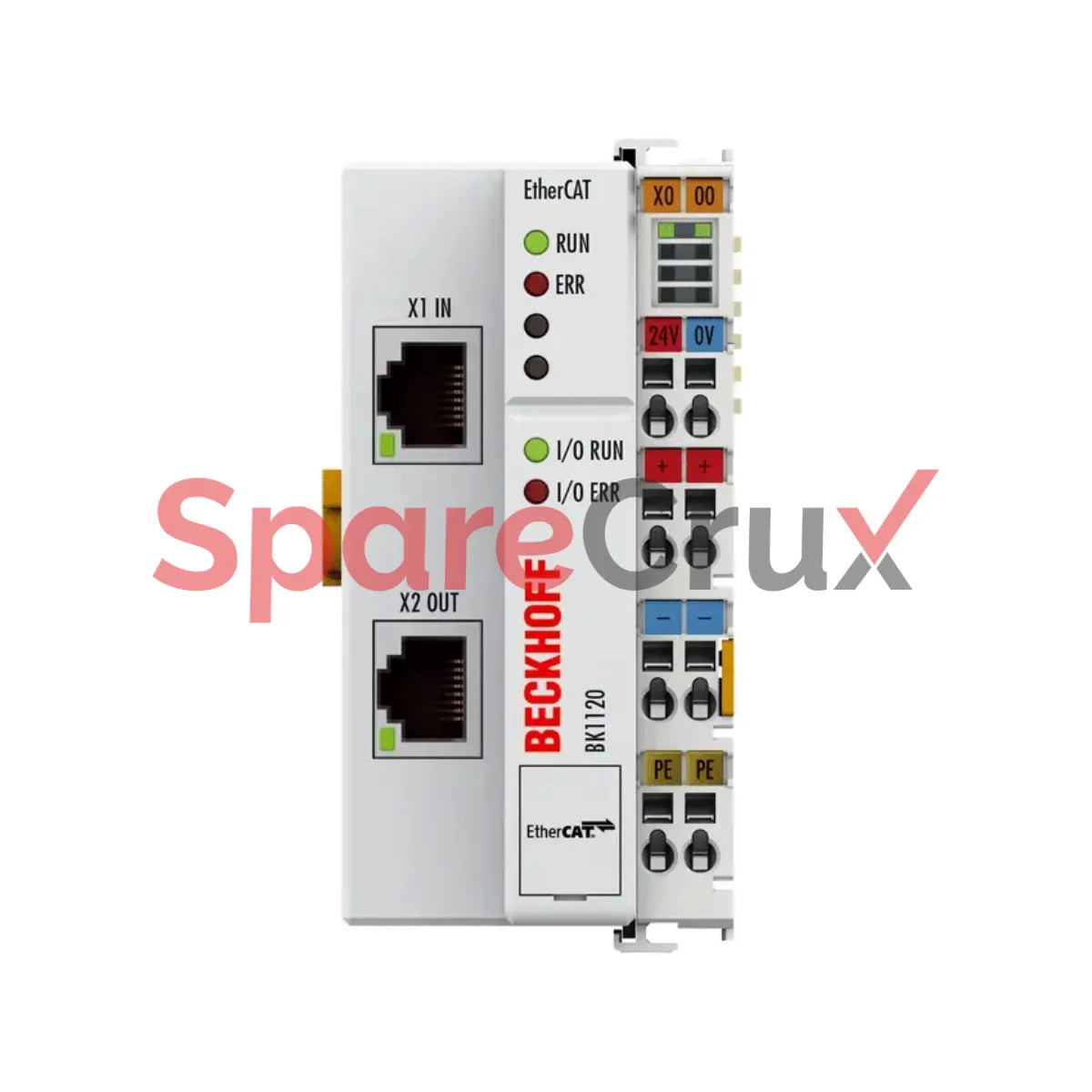

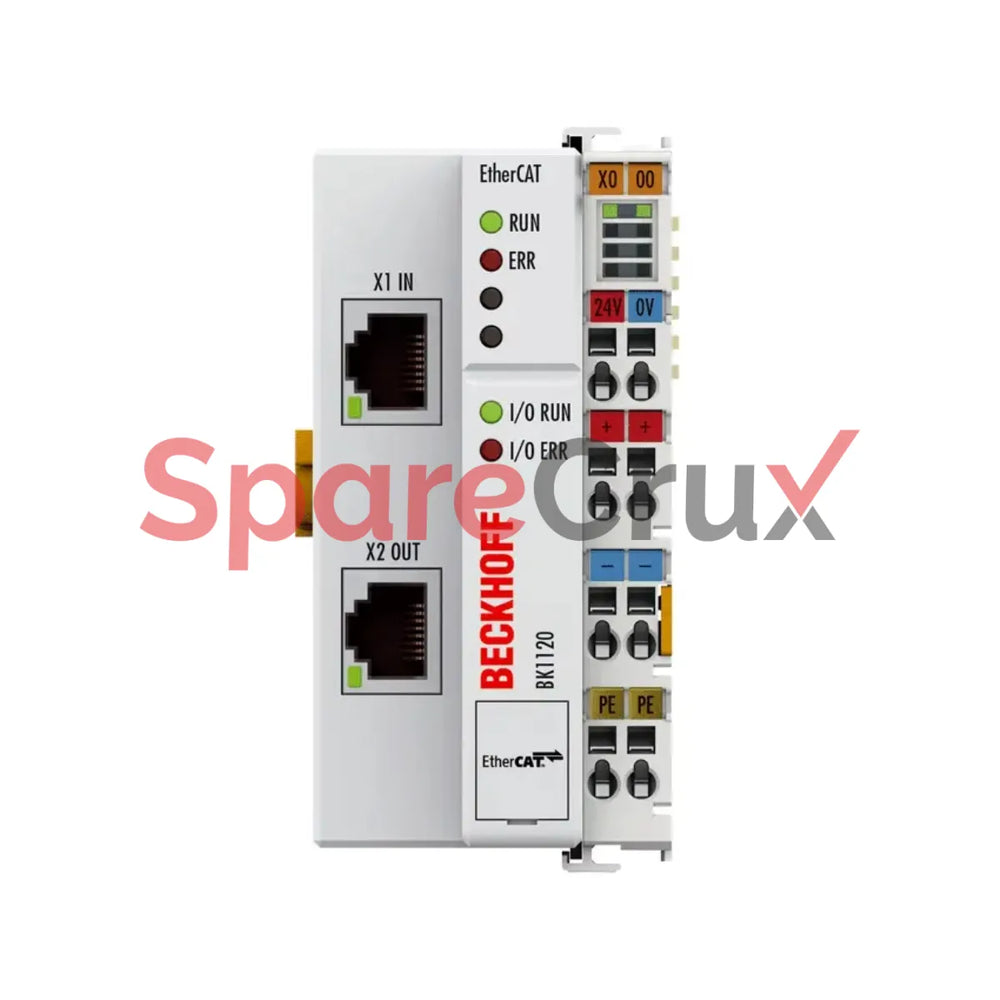

BK1120 | BECKHOFF | EtherCAT Bus Coupler For Standard Bus Terminals

₹ 43,719.00

₹ 37,050.00 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

BK1120

Original Equipment Manufacturer

BECKHOFF

Description
umber of Bus Terminals 64 (255 with K-bus extension)
Max. number of bytes fieldbus 1024 byte input and 1024 byte output
Configuration via KS2000 or EtherCAT (ADS)
Data transfer rates 100 Mbit/s
Bus interface 2 x RJ45
Data transfer medium Ethernet/EtherCAT Cat.5 cable
Power supply 24 V DC (-15%/+20%)
Input current 70 mA + (total K-bus current)/4, 500 mA max.
Starting current approx. 2.5 x continuous current
Recommended fuse ≤ 10 A
Current supply K-bus 1750 mA
Power contacts max. 24 V DC/max. 10 A
BECKHOFF

BK1120 | BECKHOFF | EtherCAT Bus Coupler For Standard Bus Terminals

₹ 37,050.00
umber of Bus Terminals 64 (255 with K-bus extension)
Max. number of bytes fieldbus 1024 byte input and 1024 byte output
Configuration via KS2000 or EtherCAT (ADS)
Data transfer rates 100 Mbit/s
Bus interface 2 x RJ45
Data transfer medium Ethernet/EtherCAT Cat.5 cable
Power supply 24 V DC (-15%/+20%)
Input current 70 mA + (total K-bus current)/4, 500 mA max.
Starting current approx. 2.5 x continuous current
Recommended fuse ≤ 10 A
Current supply K-bus 1750 mA
Power contacts max. 24 V DC/max. 10 A
