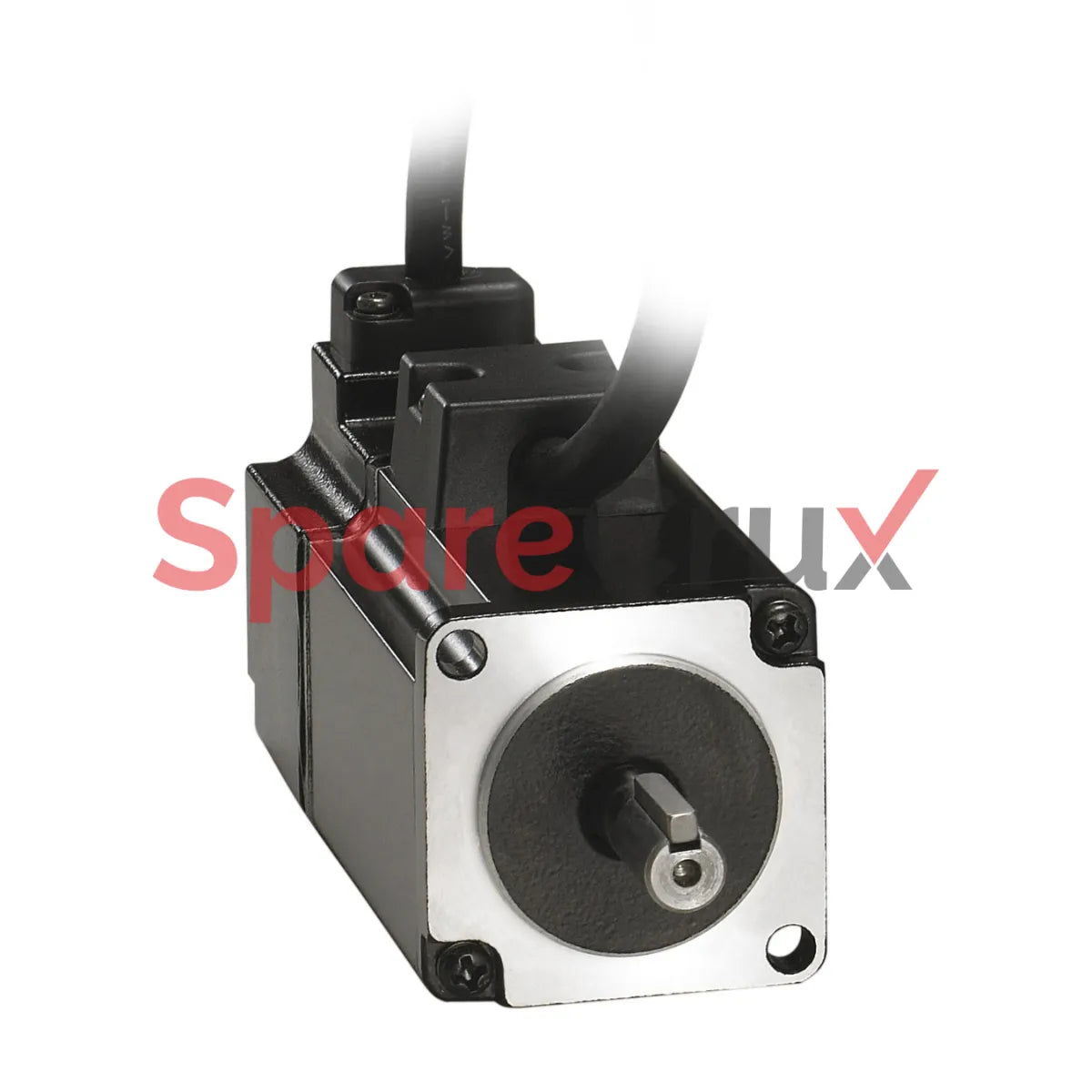

BCH0401O12A1C | SCHNEIDER ELECTRIC | Servo motor, Lexium 23 plus, 22VDC single phase, 0.1kW, IP40 protection

₹ 72,403.15

₹ 61,358.60 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

BCH0401O12A1C

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Description

Range compatibility Lexium 23 Plus
Device short name BCH
Product or component type Servo motor
Maximum mechanical speed 5000 rpm
[Us] rated supply voltage 220 V
Network number of phases Single phase
Continuous stall current 0.9 A
Continuous power 0.1 kW
Shaft end Keyed
Second shaft Without second shaft end
Shaft diameter 8 mm
Shaft length 20 mm
Key width 3 mm
Feedback type 20 bits incremental encoder
Holding brake Without
Mounting support Asian standard flange
Motor flange size 40 mm
Centring collar diameter 30 mm
Centring collar depth 2.5 mm
Number of mounting holes 4
Mounting holes diameter 4.5 mm
Circle diameter of the mounting holes 46 mm
