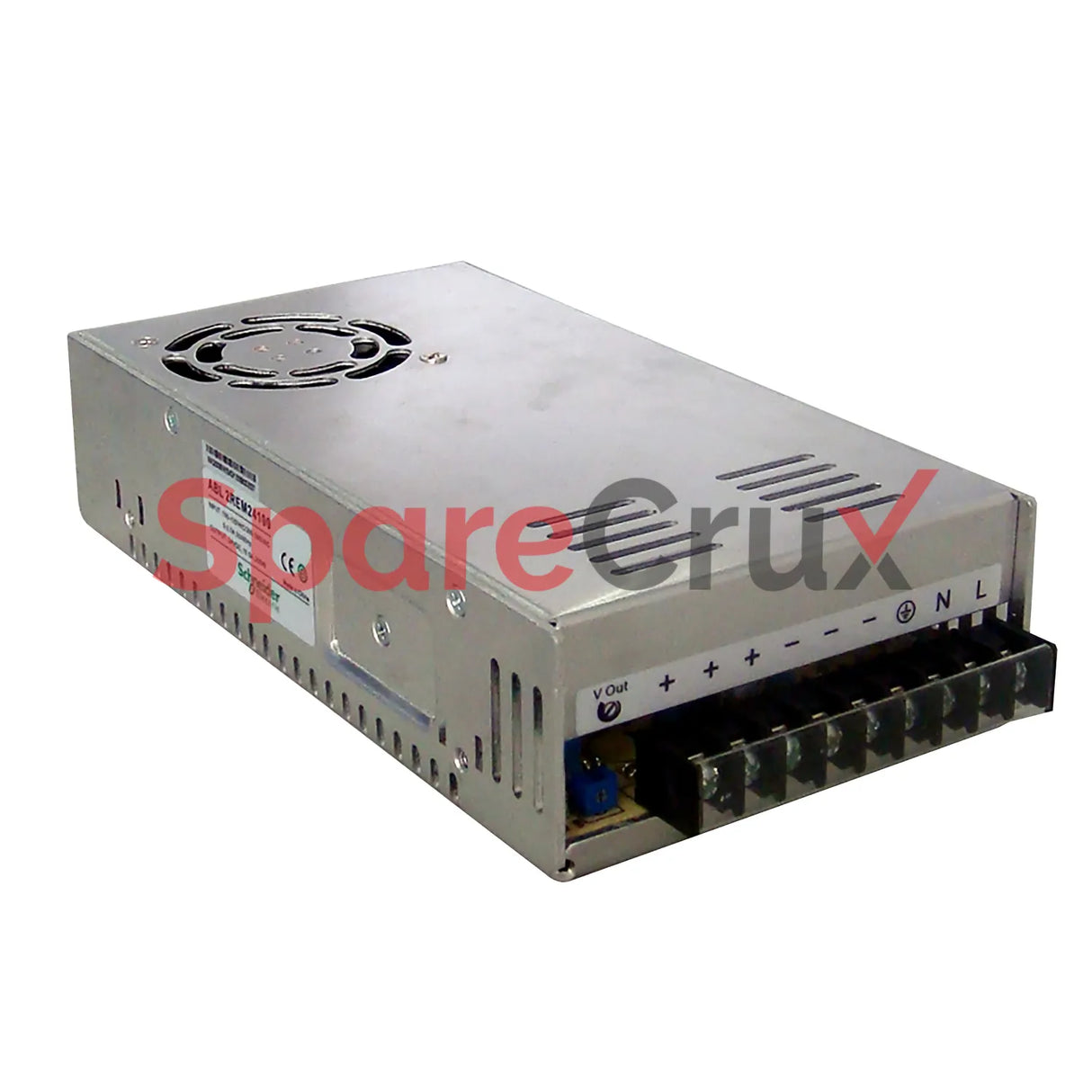

ABL2REM24100H | SCHNEIDER ELECTRIC | Switching Mode Power Supply In 100…120/200…240 VAC

₹ 8,407.50

₹ 7,125.00 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

ABL2REM24100H

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Description
Range of product Easy Modicon ABL2
Product or component type Power supply
Power supply type Regulated switch mode
Rated power in W 250 W
Main Input Voltage 100...120 V AC single phase, 200...240 V
Input voltage limits 85...264 V, 180...264 V
Network frequency 47...63 Hz
Inrush current 60 A at 100...120 V AC, 60 A at 200...240 V AC
Cos phi 0.5
Efficiency 83 %
Power dissipation in W 30.9 W
Current consumption 2.5 A at 240 V
Input protection type Integrated fuse (not interchangeable)
Output voltage 24 V DC
Output voltage limits 21.6...26.4 V
Line and load regulation ± 1 %
Power supply output current 10.5 A
Holding time ≥ 12 ms at 115 V
Status LED 1 LED (green) output voltage
Operating position Any position
Width 115 mm
Height 215 mm
Depth 50 mm
