SPARECRUX is NOT an authorized distributor for WAGO

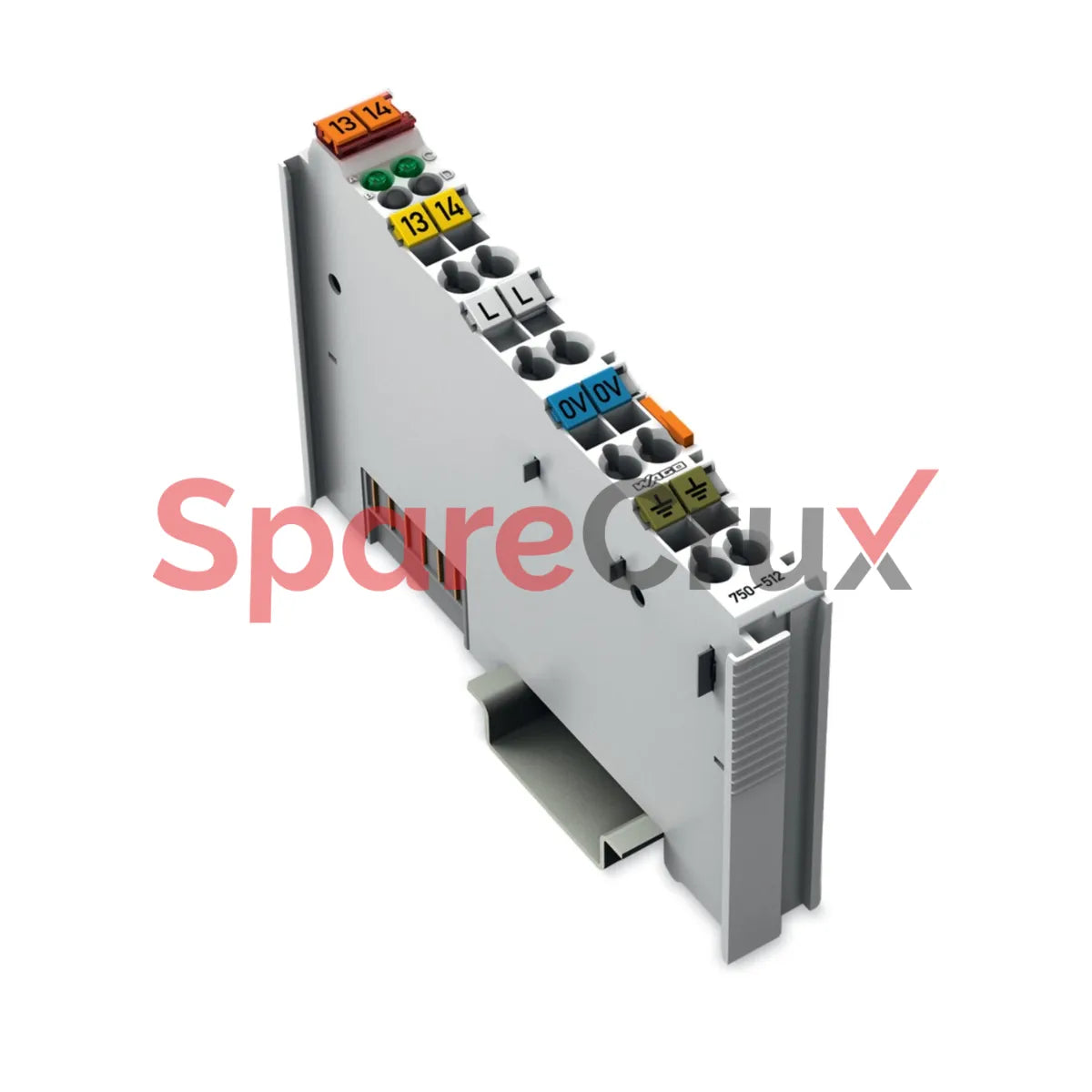

750-512 | WAGO | 2-channel Relay Output, AC 250 V, 2.0 A, 2 Make Contact

₹ 16,571.72

₹ 14,043.83 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

750-512

Original Equipment Manufacturer

WAGO

Description
Number of digital outputs 2
Total number of channels (module) 2
Signal type Digital
Actuator connection 2 x (2-wire, 3-wire)
Output circuit design 2 make contacts
Relay
Output characteristic non-floating
Pull-in time (max.) 10ms
Drop-out time (max.) 10ms
Bounce time (typ.) 1.2ms
Switching frequency (max.) 0.5 Hz; Nominal load
Switching voltage (max.) 250 VAC, 30 VDC
Switching current (max.) 2A
Switching voltage (min.) 5V
Switching current (min.) 10mA
Switching power 500 VA / 60 W (purely resistive load); cos ϕ max. = 0.4; L/R max. = 7 ms
