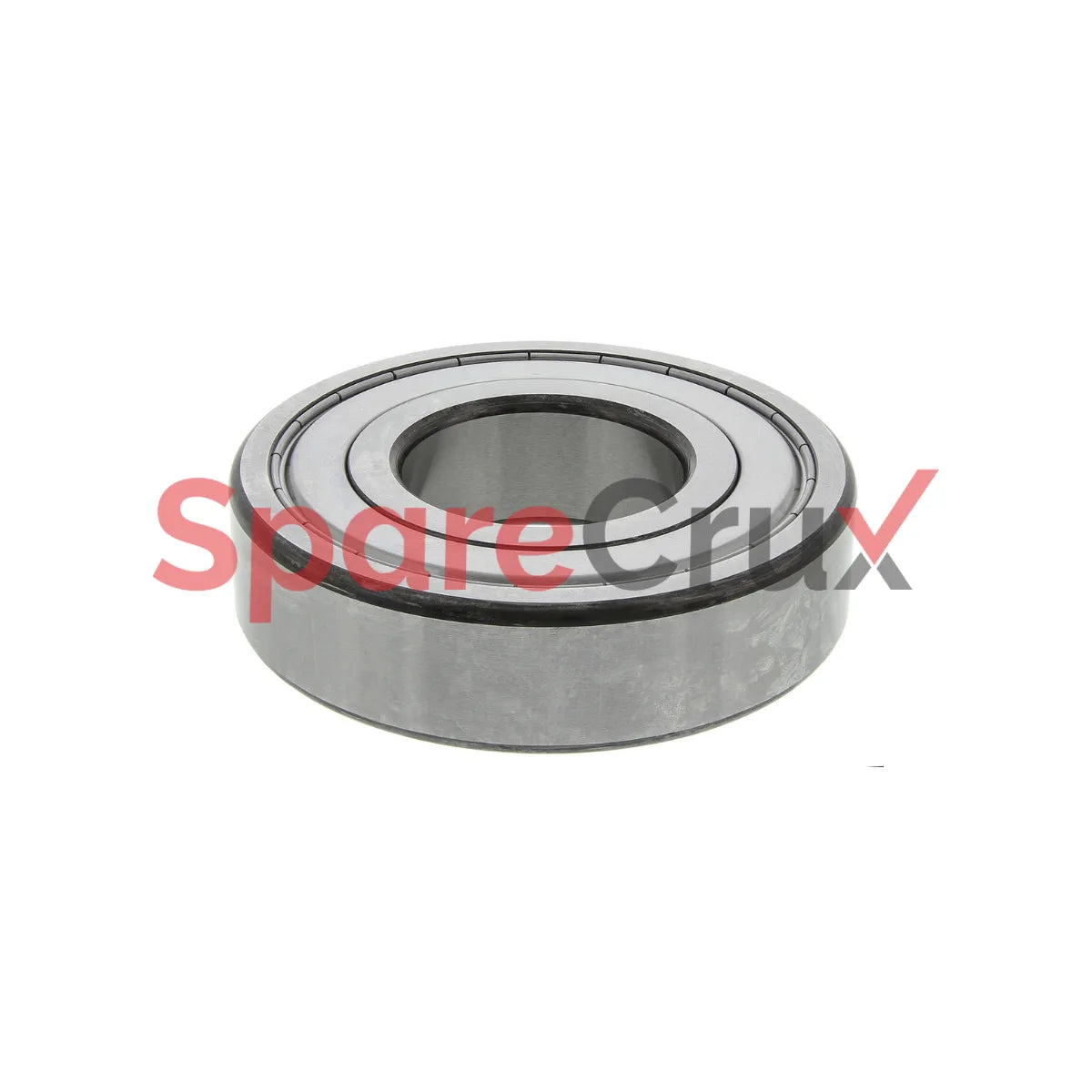

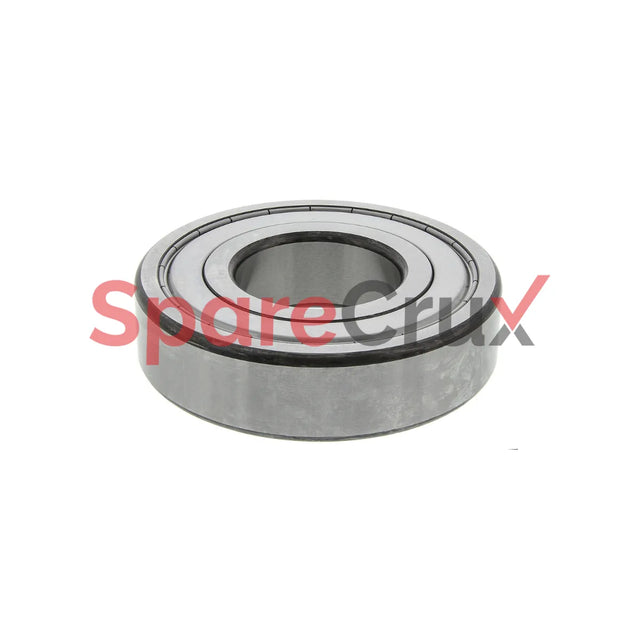

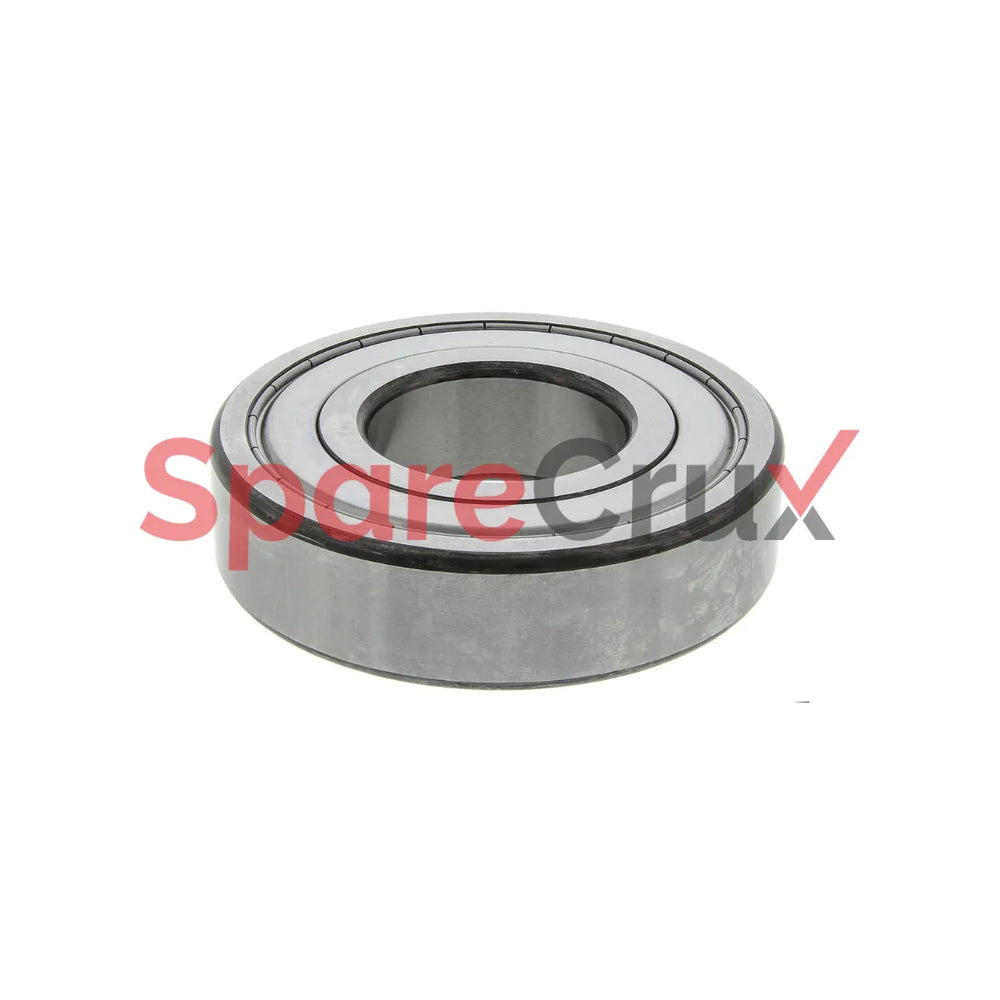

6309-2Z/C3 | SKF | Single Row Deep Groove Ball Bearing- Both Sides Shielded 45mm I.D, 100mm O.D

₹ 1,681.50

₹ 1,425.00 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

6309-2Z/C3

Original Equipment Manufacturer

SKF

Description

Attribute Value
Brand SKF
Model Number 63092ZC3
Partial Bearing Code 6309
Bearing Series 3 Medium
Ball Bearing Type Single Row Deep Groove Ball Bearing
Inside Diameter (d) 45 mm
Outside Diameter (D) 100 mm
Race Width (B) 25 mm
Sealing Arrangement Both Sides Shielded
Bearing Clearance C3
Material Steel
Ball Material Steel
Cage Material Sheet Metal
Number of Rows 1
Static Load Rating (C₀) 31.5 kN
Dynamic Load Rating (C) 55.3 kN
Bore Type Parallel
Race Type Plain
