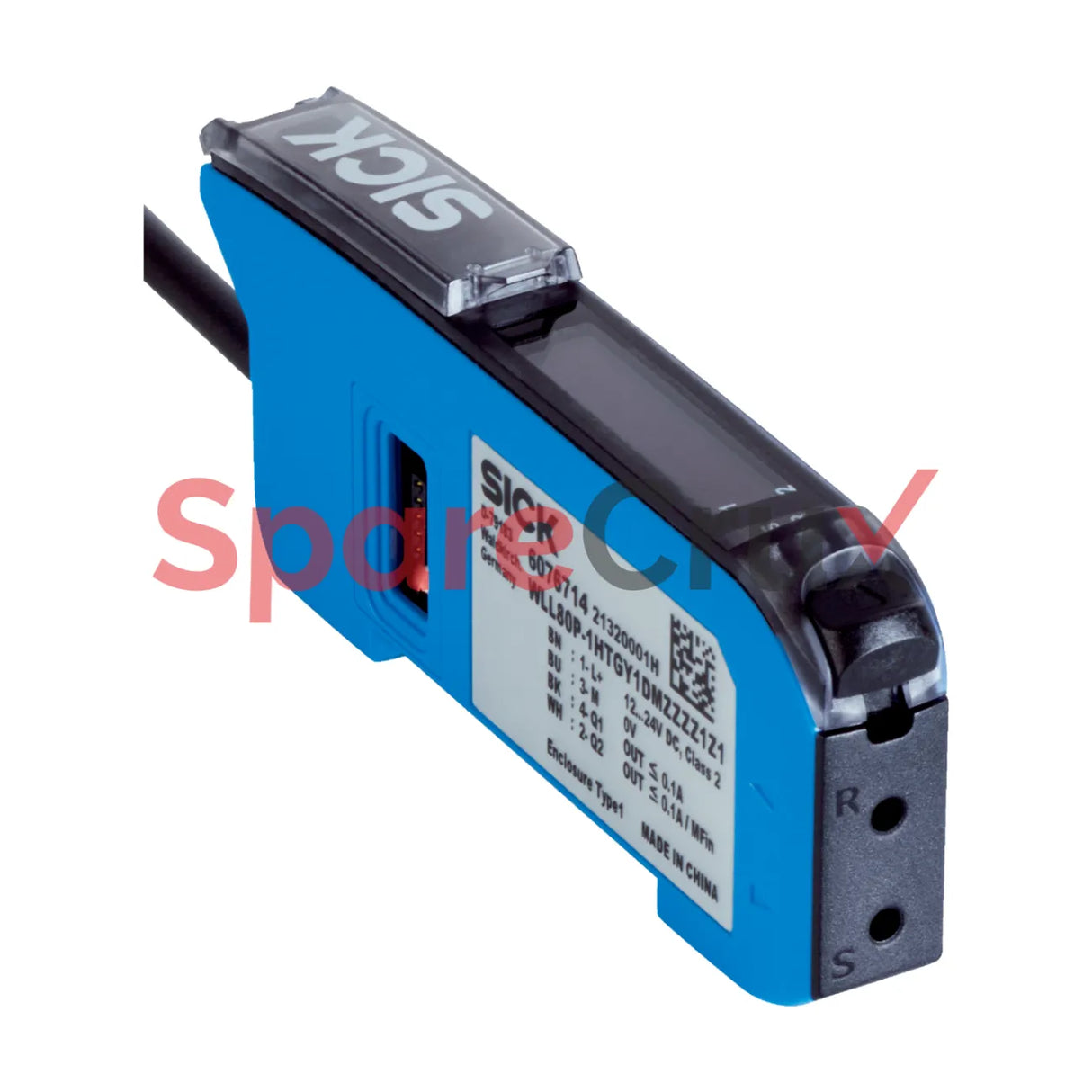

6076718 | SICK SENSORS | WLL80P-1FTGY1DEZZZZ1Z1 Fiber Optic Sensor

₹ 21,781.62

₹ 18,459.00 (Excl. Tax)

Get Best Price on WhatsApp

Product Description
Specification Details
Device Type Fiber-optic amplifier
Device Type Detail Expansion unit
Functional Principle Detail Depending on the optical fiber cable used
Sensing Range Max. Depending on the optical fiber cable used
Supply Voltage (UB) 12 V DC … 24 V DC ¹)
Ripple ± 10 % ²)
Current Consumption ≤ 50 mA ³)
Protection Class III
Housing Rectangular
Dimensions (W × H × D) 10.5 mm × 33.2 mm × 79.9 mm
Connection Cable, 2-wire, 2 m



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

6076718

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Device type – Fiber-optic amplifier

Device type detail – Expansion unit

Functional principle detail – Depending on the optical fiber cable used

Sensing range max. – Depending on the optical fiber cable used

Light source – LED

Type of light – Visible red light

Normative reference – EN 62471:2008-09 | IEC 62471:2006, modified

LED risk group marking – Free group

Wave length – 660 nm

Average service life – 100,000 h at Ta = +25 °C

Supply voltage UB – 12 V DC ... 24 V DC 1)

Ripple – ± 10 % 2)

Current consumption – ≤ 50 mA 3)

Protection class – III

Housing – Rectangular

Dimensions (W x H x D) – 10.5 mm x 33.2 mm x 79.9 mm

Connection – Cable, 2-wire, 2 m

Housing – Plastic, PC

Protection hood – Plastic, PC

Operating buttons – Plastic, Rubber

Cable – Plastic, PVC

Weight – Approx. 69 g

MTTFD – 304.4 years

DCavg – 0%

TM (mission time) – 20 years

EU declaration of conformity – ✔

UK declaration of conformity – ✔

ACMA declaration of conformity – ✔

Moroccan declaration of conformity – ✔

China RoHS – ✔

cULus certificate – ✔

Photobiological safety (DIN EN 62471) certificate – ✔

Information according to Art. 3 of Data Act (Regulation EU 2023/2854) – ✔

ECLASS 5.1.4 – 27270905

ECLASS 6.0 – 27270905

ECLASS 7.0 – 27270905

ECLASS 8.0 – 27270905

ECLASS 9.0 – 27270905

ECLASS 10.0 – 27270905

ECLASS 11.0 – 27270905

ECLASS 12.0 – 27270905

ECLASS 13.0 – 27270905
