SPARECRUX is NOT an authorized distributor for SICK SENSORS

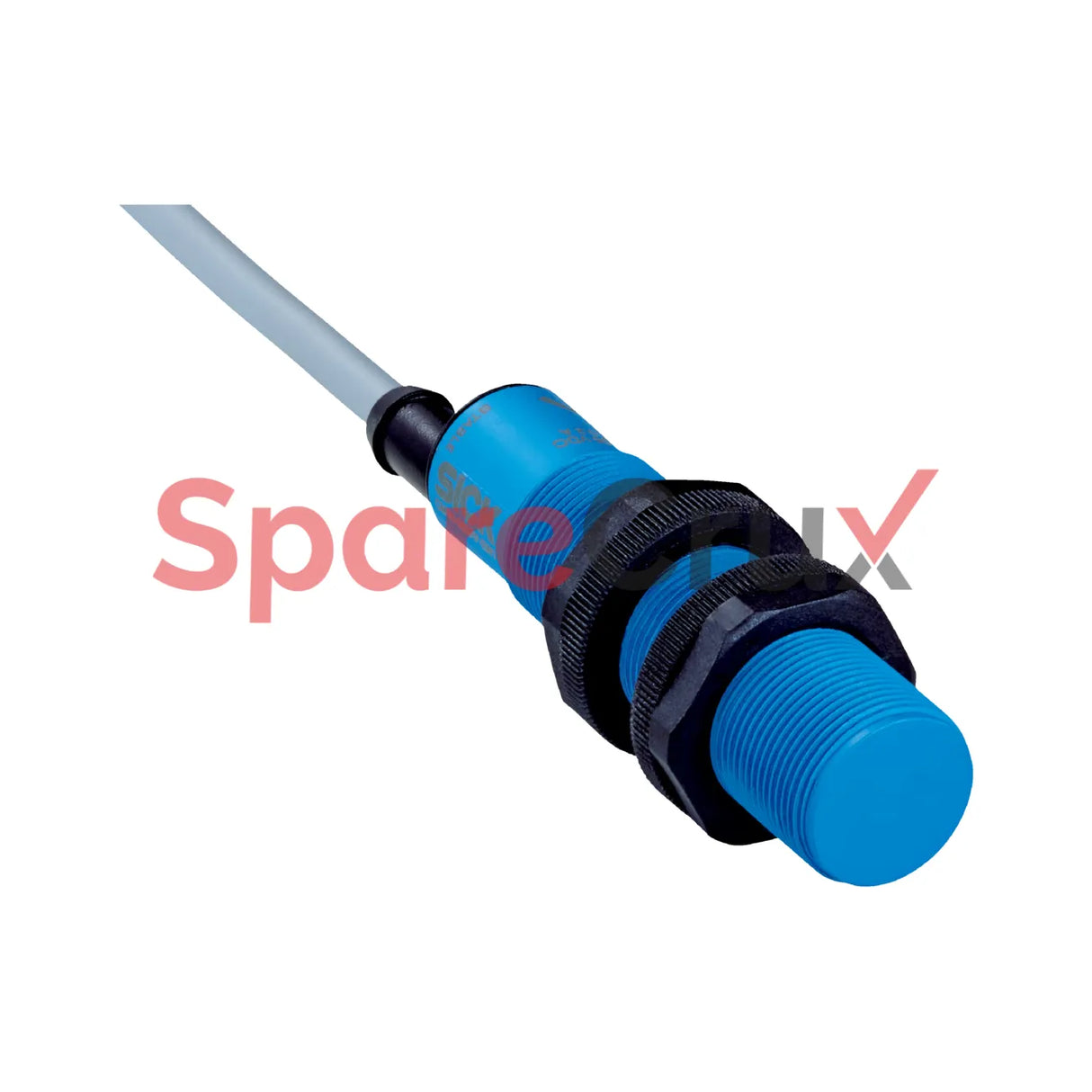

6058146 | SICK SENSORS | CM18-08BNP-EW1 Capacitive Proximity Sensors

₹ 10,878.66

₹ 9,219.20 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

6058146

Original Equipment Manufacturer

SICK SENSORS

Description

Housing Metric
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 3 mm ... 8 mm
Safe sensing range Sa 6.12 mm 1)
Installation type Flush
Switching frequency 50 Hz
Connection type Cable, 4-wire, 2 m 2)
Switching output NPN
Switching output detail NPN
Supply voltage 10 V DC ... 36 V DC
Ripple ≤ 10 % 1)
Voltage drop ≤ 2.5 V DC 2)
Current consumption 12 mA 3)
Time delay before availability ≤ 200 ms
Hysteresis 3 % ... 20 %
Reproducibility

≤ 5 % 4)

 5)

Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia ≤ 200 mA
Cable material PVC
Conductor size 0.34 mm²



SICK SENSORS 6058146 CM18-08BNP-EW1 Capacitive Proximity Sensors
SICK SENSORS

6058146 | SICK SENSORS | CM18-08BNP-EW1 Capacitive Proximity Sensors

₹ 9,219.20
Housing Metric
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 3 mm ... 8 mm
Safe sensing range Sa 6.12 mm 1)
Installation type Flush
Switching frequency 50 Hz
Connection type Cable, 4-wire, 2 m 2)
Switching output NPN
Switching output detail NPN
Supply voltage 10 V DC ... 36 V DC
Ripple ≤ 10 % 1)
Voltage drop ≤ 2.5 V DC 2)
Current consumption 12 mA 3)
Time delay before availability ≤ 200 ms
Hysteresis 3 % ... 20 %
Reproducibility

≤ 5 % 4)

 5)

Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia ≤ 200 mA
Cable material PVC
Conductor size 0.34 mm²
