SPARECRUX is NOT an authorized distributor for SICK SENSORS

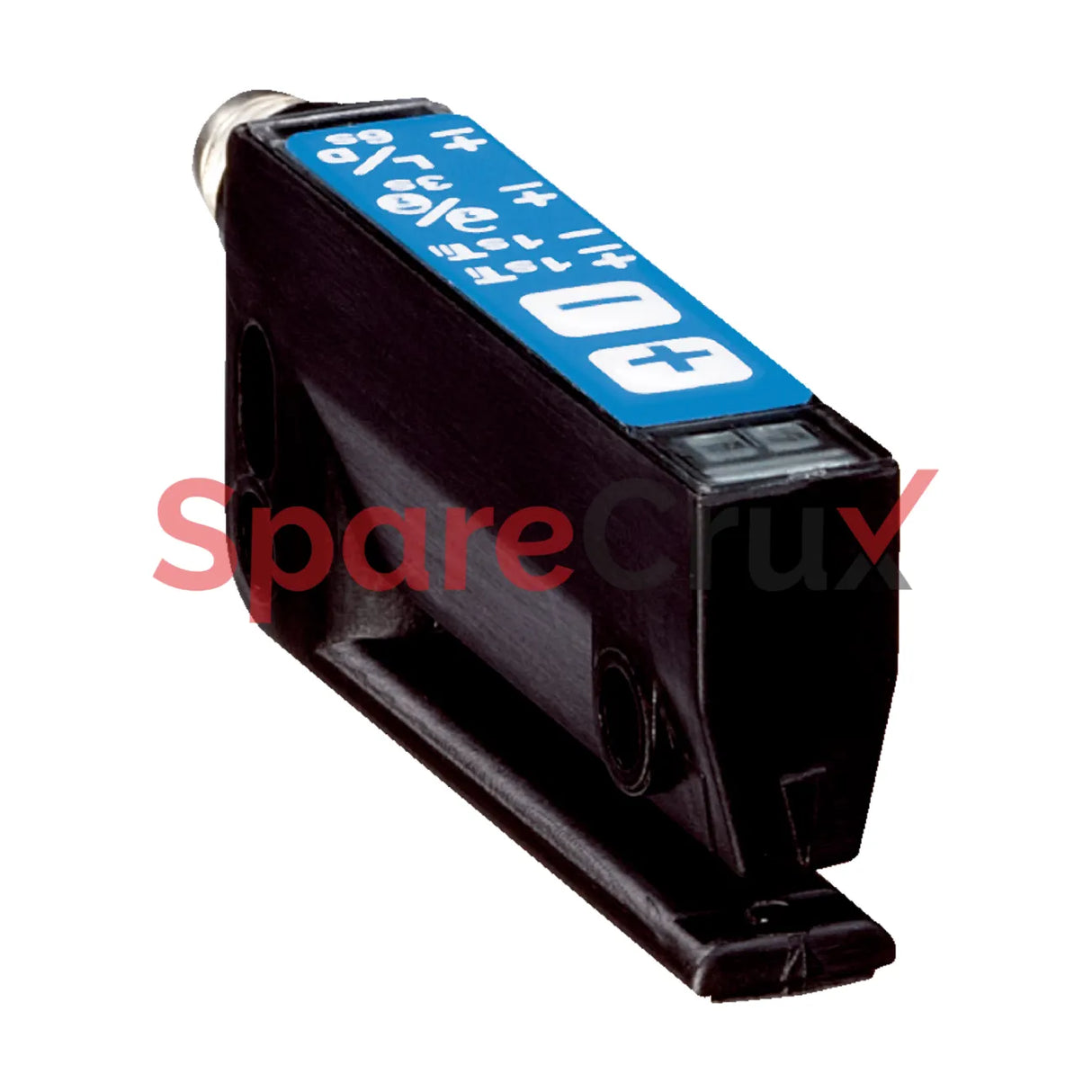

6055433 | SICK SENSORS | WFS3-40P115 Fork Sensor

₹ 17,311.07

₹ 14,670.40 (Excl. Tax)

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

6055433

Original Equipment Manufacturer

SICK SENSORS

Description
Functional principle Optical detection principle
Dimensions (W x H x D) 10 mm x 25 mm x 64.3 mm
Fork width 3 mm
Fork depth 42 mm
Minimum detectable object (MDO) Gap between Labels / Size of labels: 2 mm 1)
Label detection ✔
Light source LED, infrared, Infrared light
Adjustment Plus/minus button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic)
Supply voltage 10 V DC ... 30 V DC
Ripple < 10 %
Current consumption 20 mA 1)
Switching frequency 10 kHz
Response time ≤ 50 µs 2)
Stability of response time ± 20 µs
Jitter 40 µs
Switching output PNP
Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V
Switching mode Light/dark switching
Output current Imax. 100 mA
Input, teach-in (ET)

PNP

Teach: U > 5 V ... < UV

Run: U < 4 V



SICK SENSORS 6055433 WFS3-40P115 Fork Sensor
SICK SENSORS

6055433 | SICK SENSORS | WFS3-40P115 Fork Sensor

₹ 14,670.40
Functional principle Optical detection principle
Dimensions (W x H x D) 10 mm x 25 mm x 64.3 mm
Fork width 3 mm
Fork depth 42 mm
Minimum detectable object (MDO) Gap between Labels / Size of labels: 2 mm 1)
Label detection ✔
Light source LED, infrared, Infrared light
Adjustment Plus/minus button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic)
Supply voltage 10 V DC ... 30 V DC
Ripple < 10 %
Current consumption 20 mA 1)
Switching frequency 10 kHz
Response time ≤ 50 µs 2)
Stability of response time ± 20 µs
Jitter 40 µs
Switching output PNP
Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V
Switching mode Light/dark switching
Output current Imax. 100 mA
Input, teach-in (ET)

PNP

Teach: U > 5 V ... < UV

Run: U < 4 V
