SPARECRUX is NOT an authorized distributor for SICK SENSORS

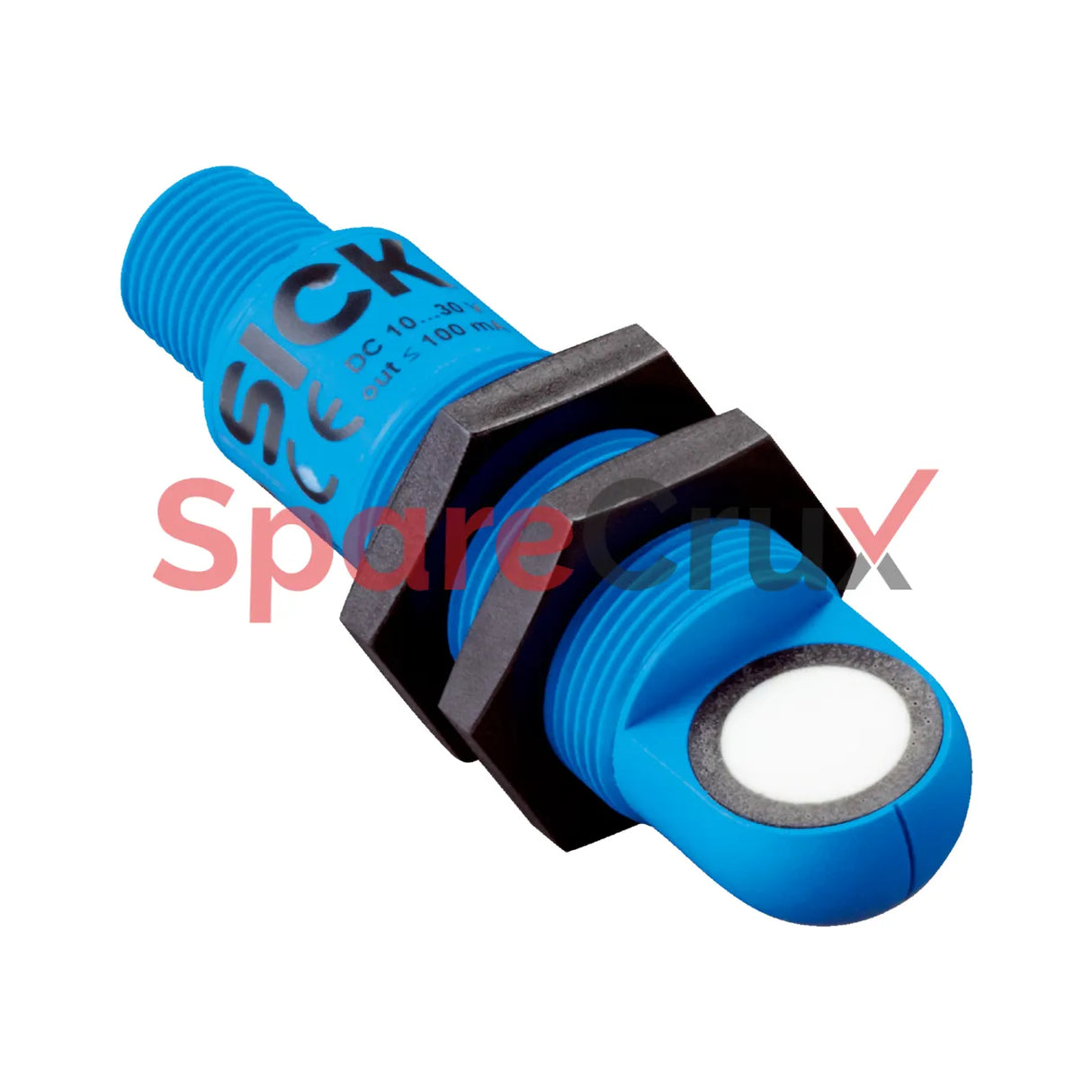

6048409 | SICK SENSORS | UM18-217161102 Ultrasonic Distance Sensors

₹ 21,971.60

₹ 18,620.00 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

6048409

Original Equipment Manufacturer

SICK SENSORS

Description

Operating range, limiting range 20 mm ... 150 mm, 250 mm
Target Natural objects
Resolution ≥ 0.2 mm
Repeatability ± 0.15 % 1)
Measurement accuracy ± 1 % 2)
Dimensions (W x H x D) 18 mm x 18 mm x 68.7 mm
Design Cylindrical
Sending axis Angled
Housing material Plastic (PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin)
Weight 20 g
Thread size M18 x 1
Connection type Male connector, M12, 4-pin



SICK SENSORS 6048409 UM18-217161102 Ultrasonic Distance Sensors
SICK SENSORS

6048409 | SICK SENSORS | UM18-217161102 Ultrasonic Distance Sensors

₹ 18,620.00
Operating range, limiting range 20 mm ... 150 mm, 250 mm
Target Natural objects
Resolution ≥ 0.2 mm
Repeatability ± 0.15 % 1)
Measurement accuracy ± 1 % 2)
Dimensions (W x H x D) 18 mm x 18 mm x 68.7 mm
Design Cylindrical
Sending axis Angled
Housing material Plastic (PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin)
Weight 20 g
Thread size M18 x 1
Connection type Male connector, M12, 4-pin
