SPARECRUX is NOT an authorized distributor for SICK SENSORS

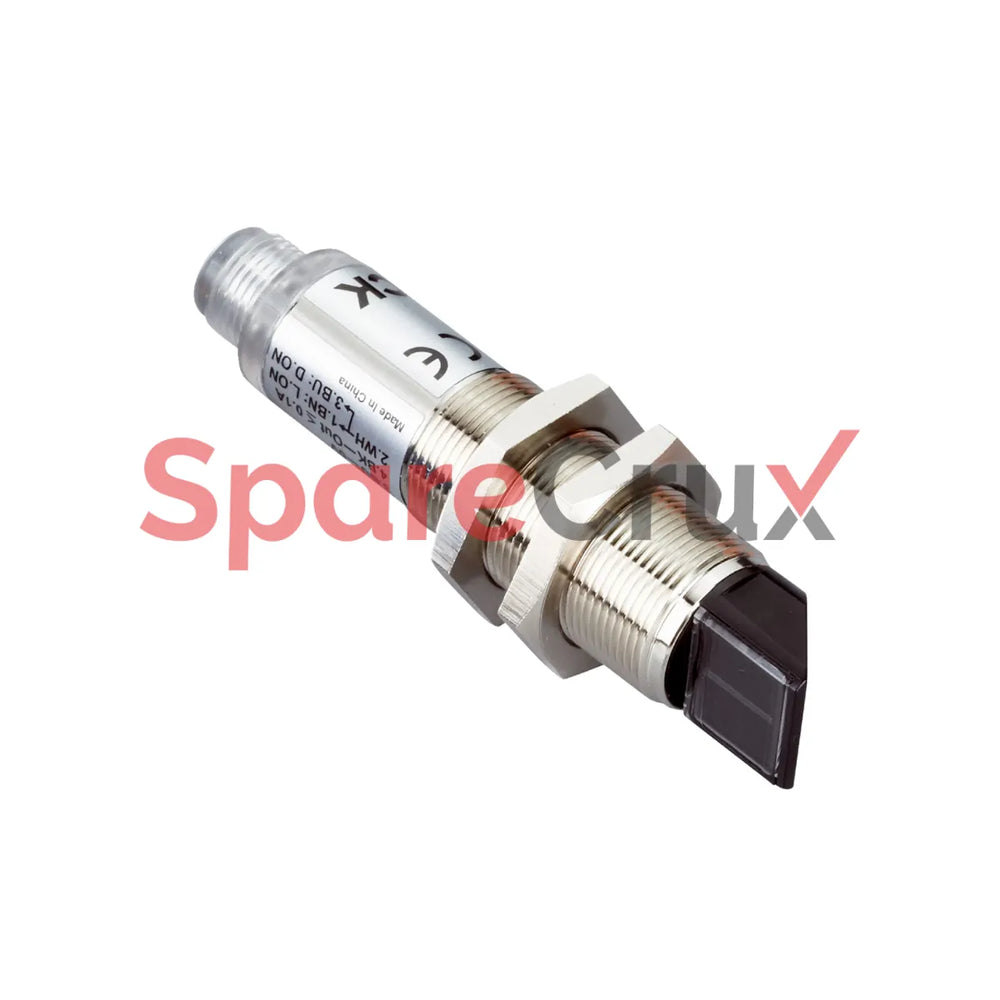

6041823 | SICK SENSORS | VSE180-2P42432 Through-beam Photoelectric Sensor

₹ 7,393.41

₹ 6,265.60 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

6041823

Original Equipment Manufacturer

SICK SENSORS

Description

Functional principle Through-beam photoelectric sensor
Dimensions (W x H x D) 18 mm x 18 mm x 69.8 mm
Housing design (light emission) Cylindrical
Housing length 69.8 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0 m ... 28 m
Sensing range 0 m ... 20 m
Focus Approx. 5°
Type of light Visible red light
Light source LED 1)
Light spot size (distance) Ø 1,100 mm (20 m)
Angle of dispersion Approx. 5°
Wave length 645 nm
Housing material Metal, Nickel-plated brass and PC
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied Fastening nuts (4 x)
Ambient operating temperature –25 °C ... +55 °C
Ambient temperature, storage –40 °C ... +70 °C



SICK SENSORS 6041823 VSE180-2P42432 Through-beam Photoelectric Sensor
SICK SENSORS

6041823 | SICK SENSORS | VSE180-2P42432 Through-beam Photoelectric Sensor

₹ 6,265.60
Functional principle Through-beam photoelectric sensor
Dimensions (W x H x D) 18 mm x 18 mm x 69.8 mm
Housing design (light emission) Cylindrical
Housing length 69.8 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0 m ... 28 m
Sensing range 0 m ... 20 m
Focus Approx. 5°
Type of light Visible red light
Light source LED 1)
Light spot size (distance) Ø 1,100 mm (20 m)
Angle of dispersion Approx. 5°
Wave length 645 nm
Housing material Metal, Nickel-plated brass and PC
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied Fastening nuts (4 x)
Ambient operating temperature –25 °C ... +55 °C
Ambient temperature, storage –40 °C ... +70 °C
