6011991 | SICK | IM18-05BPS-ZC1
Manufacturer Part Number (MPN)
IM18-05BPS-ZC1 (6011991)
Original Equipment Manufacturer
SICK SENSORS
Description
Description

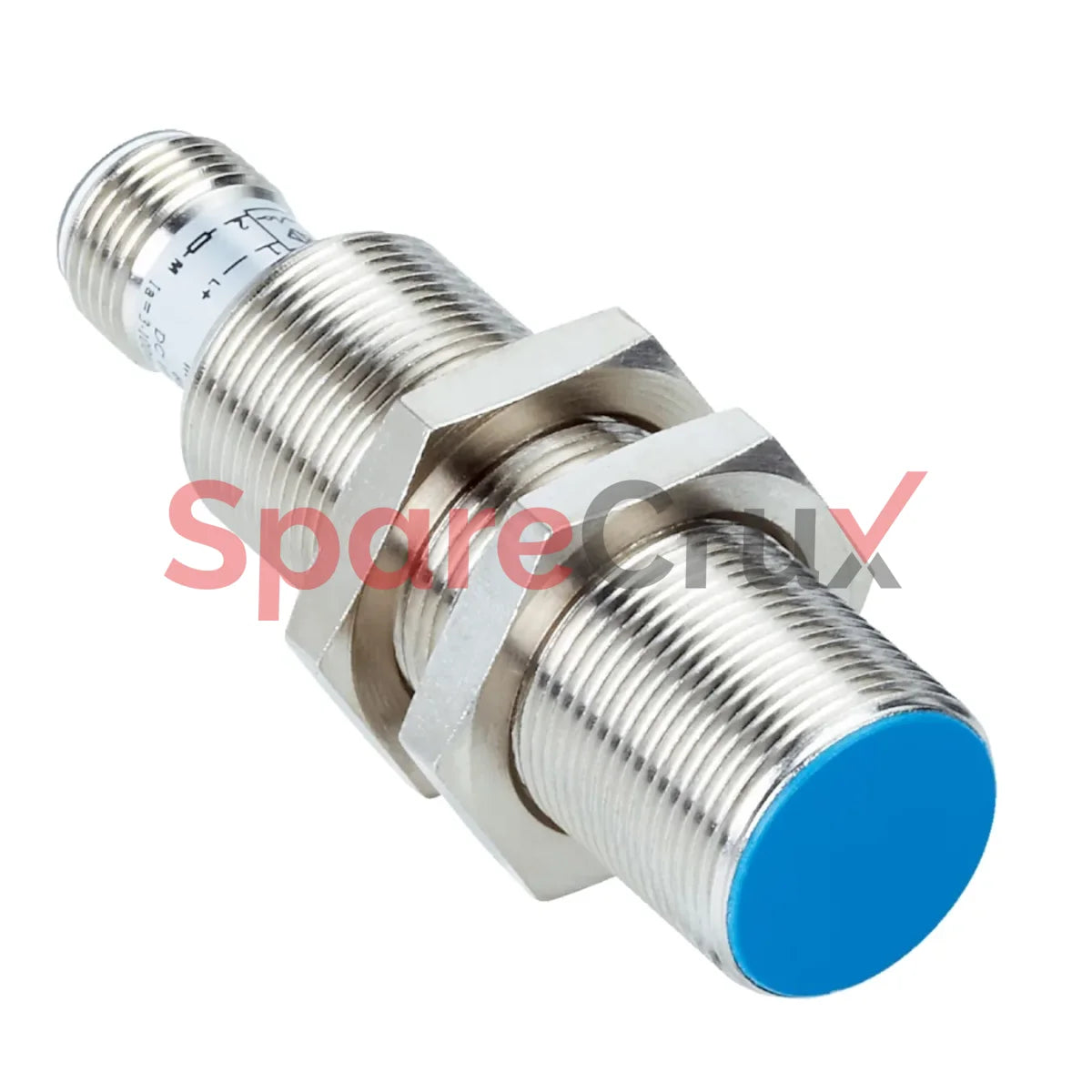

The IM18-05BPS-ZC1 is an inductive proximity sensor from SICK's IM Standard series, designed for non-contact detection of metallic objects. Featuring a robust M18 cylindrical housing and a sensing range of 5 mm, it is suitable for various industrial automation applications.
- Functional Principle: Inductive proximity sensor
- Sensing Range: 5 mm
- Installation Type: Non-flush
- Output Type: PNP, normally open (NO)
- Supply Voltage: 10 V DC to 30 V DC
- Continuous Current: ≤ 400 mA
- Short-Circuit Protection: Yes
- Housing Size: M18 x 1
- Connection Type: M12, 4-pin male connector
- Housing Material: Nickel-plated brass
- Enclosure Rating: IP67
- Ambient Operating Temperature: –25 °C to +70 °C
- Dimensions (L x D): 64 mm x 18 mm
- Weight: 50 g
The IM18-05BPS-ZC1 is ideal for detecting metallic objects in industrial automation settings, offering reliable performance and easy installation.
