SPARECRUX is NOT an authorized distributor for FESTO

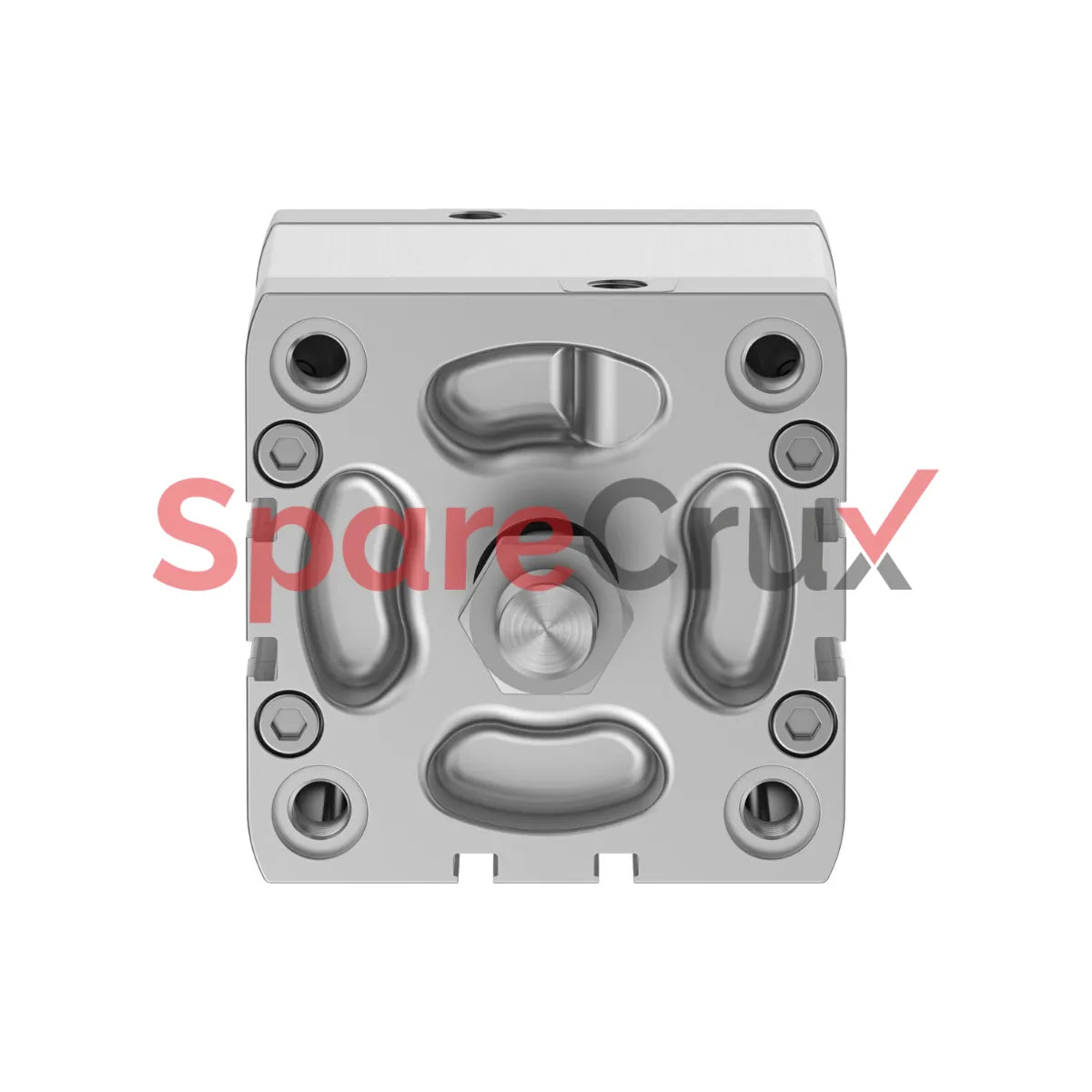

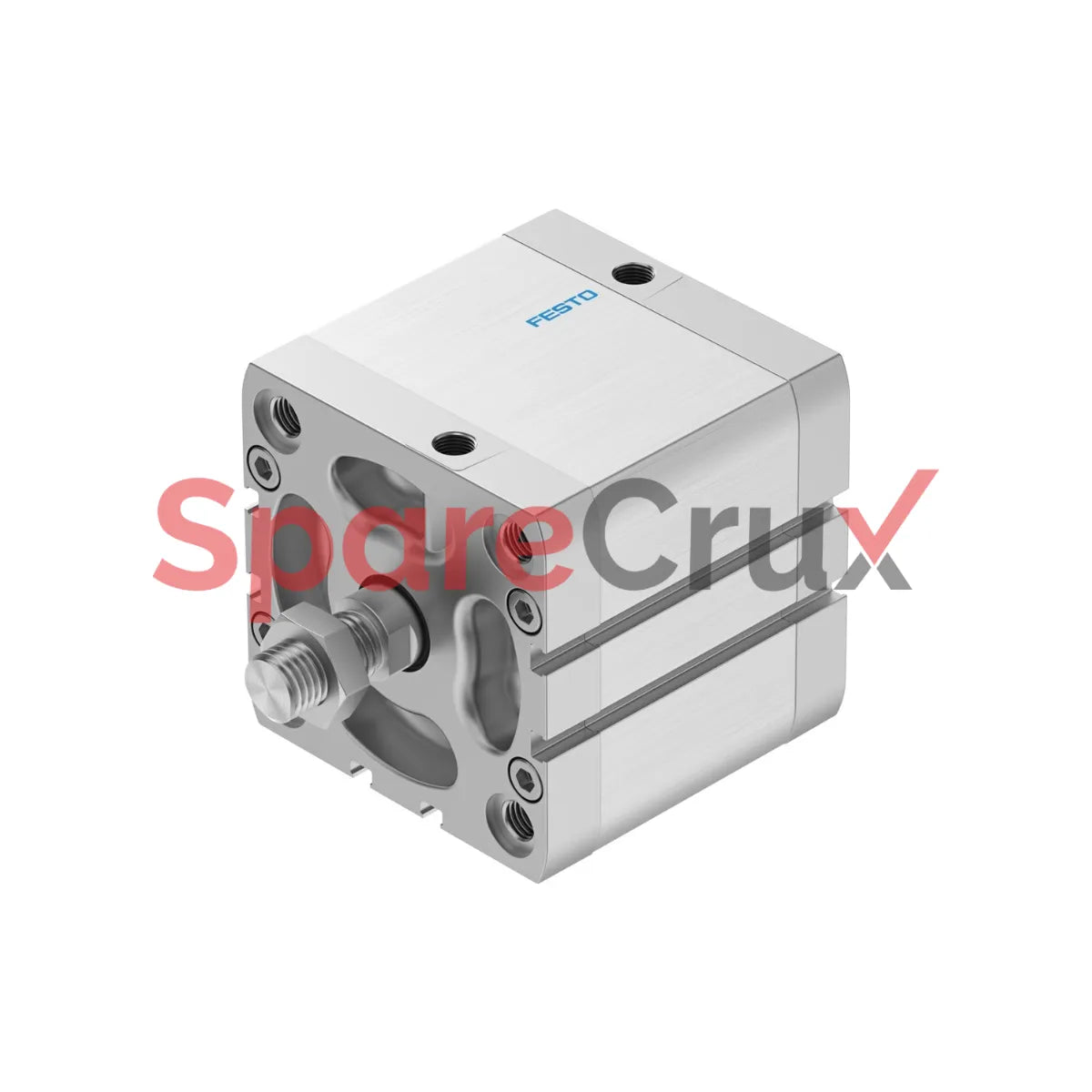

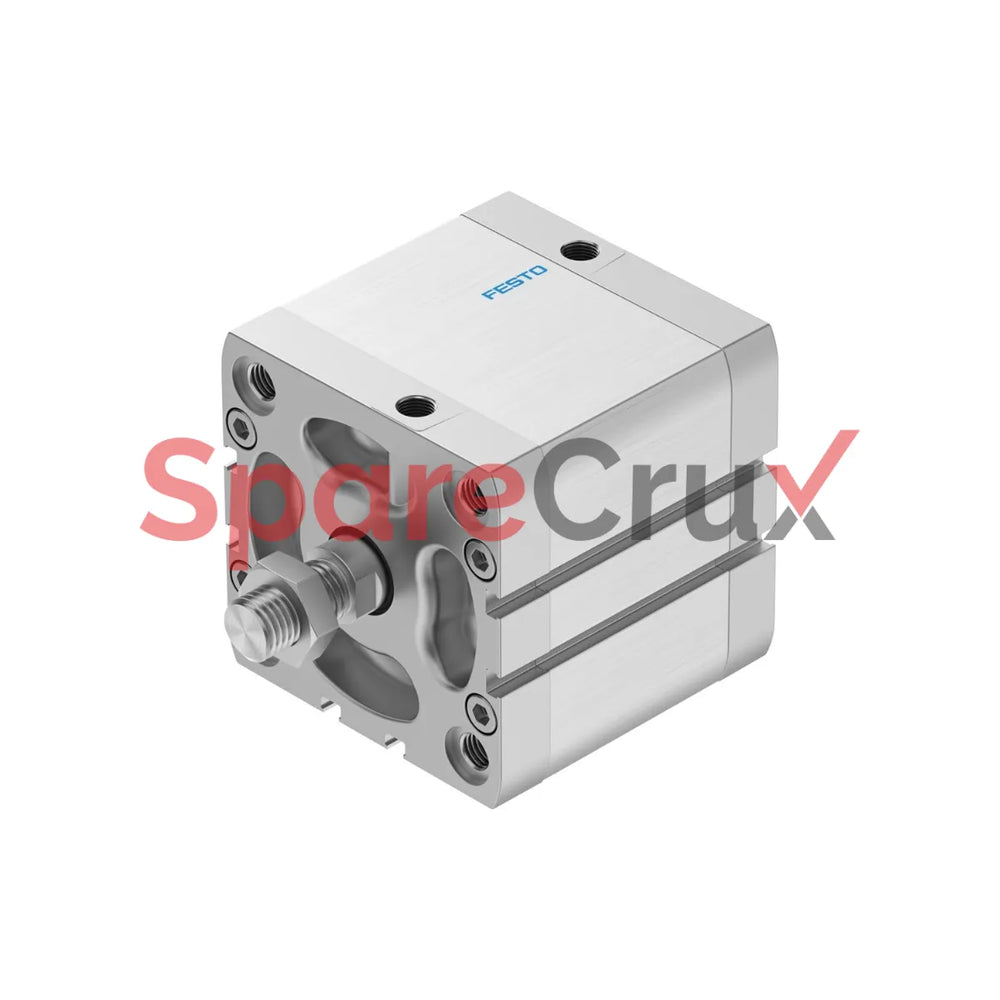

536358 | FESTO | Compact Cylinder ADN-80-40-A-P-A

₹ 7,086.08

₹ 6,005.15 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

Original Equipment Manufacturer

FESTO

Description
Parameter Value
Stroke 40 mm
Piston diameter 80 mm
Piston rod thread M16x1.5
Cushioning Elastic cushioning rings/plates at both ends
Mounting position Optional
Conforms to standard ISO 21287
Piston-rod end Male thread
Position detection Via proximity switch
Symbol 00991217
Variants Piston rod at one end
Operating pressure 0.06 MPa ... 1 MPa
Operating pressure 0.6 bar ... 10 bar
Mode of operation Double-acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (lubricated operation always required if used)
Corrosion resistance class (CRC) 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20 °C ... 80 °C
Impact energy in end positions 1.8 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 2827 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 3016 N
Moving mass 531 g
Product weight 1459 g
Type of mounting With through-hole, via female thread
Pneumatic connection G1/8
