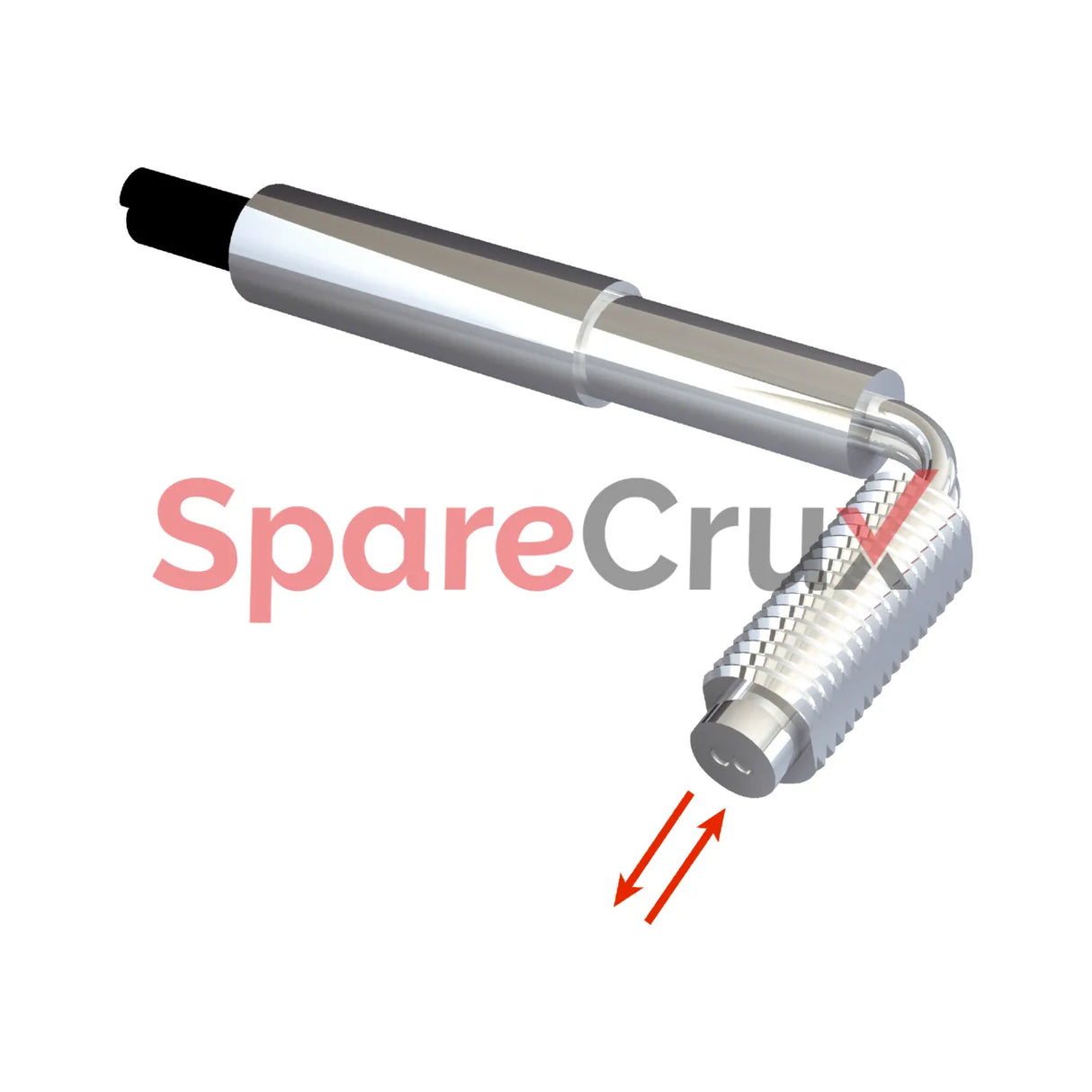

5325991 | SICK SENSORS | LL3-DB09 Proximity System

₹ 15,140.82

₹ 12,831.20 (Excl. Tax)


  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

5325991

Original Equipment Manufacturer

SICK SENSORS

Description

Device type Fiber-optic cables
Functional principle Proximity system
Fiber-optic head design Threaded sleeve, 90° deflection
Application Standard
Compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180
Sensing range max. 1,100 mm (Sensing range of WLL80 at 8 ms)
Minimal object diameter 0.02 mm 1)
Fiber length 2,000 mm
Bending radius 25 mm
Dynamic flexibility (robotics) No
Outside diameter, optical fiber cable connection 2.2 mm
Fiber arrangement Singlefiber
Core structure 2 x Ø 1,0 mm Singlefiber



SICK SENSORS 5325991 LL3-DB09 Proximity System
SICK SENSORS

5325991 | SICK SENSORS | LL3-DB09 Proximity System

₹ 12,831.20
Device type Fiber-optic cables
Functional principle Proximity system
Fiber-optic head design Threaded sleeve, 90° deflection
Application Standard
Compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180
Sensing range max. 1,100 mm (Sensing range of WLL80 at 8 ms)
Minimal object diameter 0.02 mm 1)
Fiber length 2,000 mm
Bending radius 25 mm
Dynamic flexibility (robotics) No
Outside diameter, optical fiber cable connection 2.2 mm
Fiber arrangement Singlefiber
Core structure 2 x Ø 1,0 mm Singlefiber
