SPARECRUX is NOT an authorized distributor for FESTO

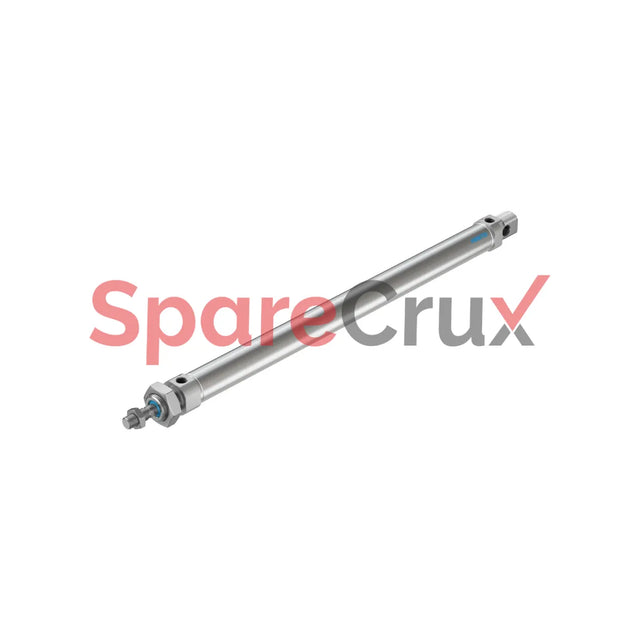

35193 | FESTO | ISO Cylinder DSNU-25-400-PPV-A

₹ 3,157.28

₹ 2,675.66 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

35193

Original Equipment Manufacturer

FESTO

Description
Parameter Specification
Stroke 400 mm
Piston Diameter 25 mm
Piston Rod Thread M10 x 1.25
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting Position Optional
Standard ISO 6432
Piston-Rod End Male thread
Design Piston, Piston rod, Cylinder barrel
Position Detection Via proximity switch
Symbol 00991235
Variants Piston rod at one end
Operating Pressure 0.1 MPa … 1 MPa (1 bar … 10 bar)
Mode of Operation Double-acting
Operating Medium Compressed air to ISO 8573-1:2010 [7:4:4]
Lubrication Possible, but then continuously required
Corrosion Resistance Class (CRC) 2 – Moderate corrosion stress
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Cleanroom Class Class 6 (ISO 14644-1)
Ambient Temperature Range -20 °C … 80 °C
Impact Energy at End Positions 0.3 J
Cushioning Length 17 mm
Theoretical Force @ 0.6 MPa (6 bar) Advance: 294.5 N / Return: 247.4 N
Moving Mass (0 mm Stroke) 71 g
Additional Moving Mass per 10 mm Stroke 6 g
Basic Weight (0 mm Stroke) 238 g
Additional Weight per 10 mm Stroke 11 g
Type of Mounting With accessories
Pneumatic Connection G1/8
