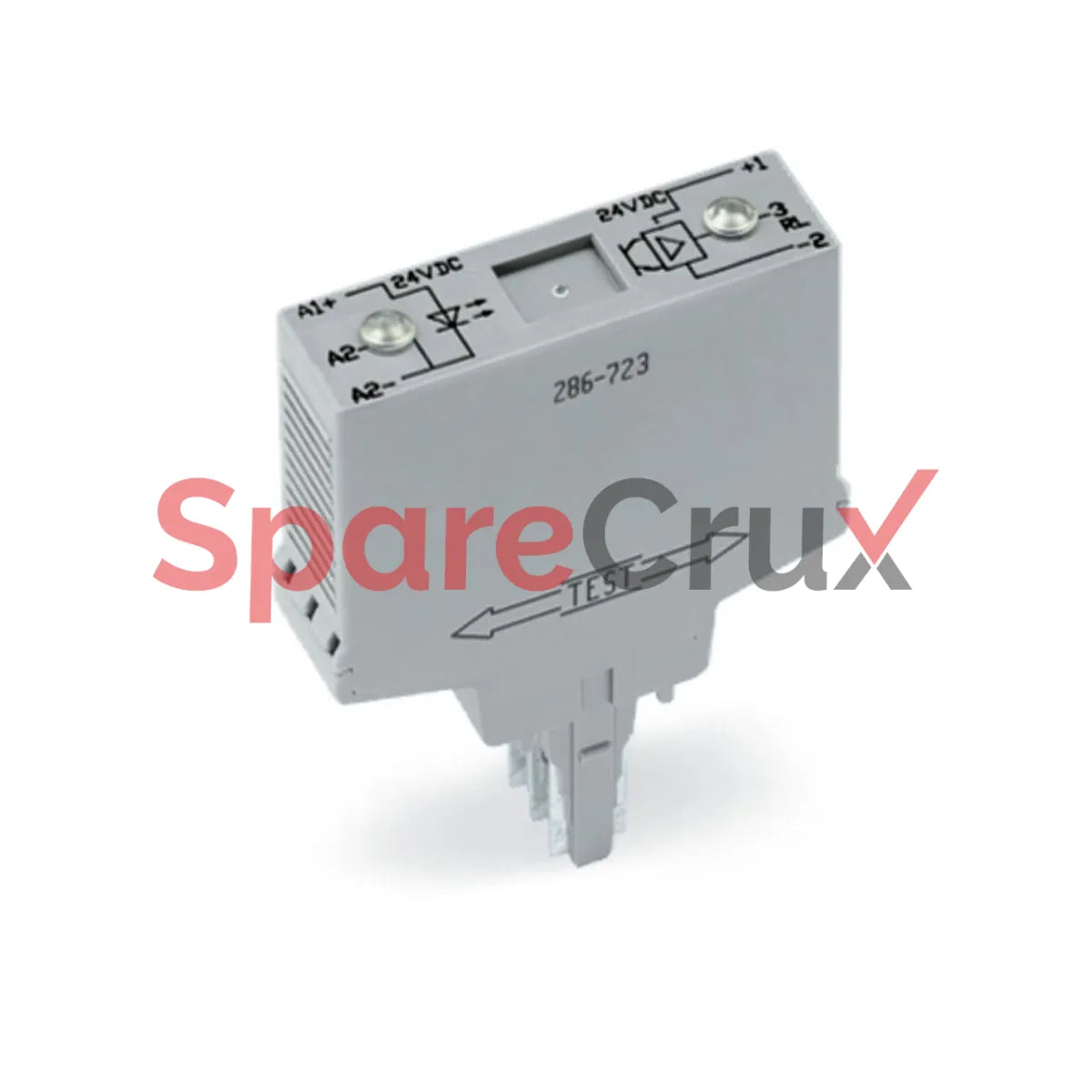

286-723 | WAGO | 24 VDC Optocoupler Module, 3-Wire, High-Side Switching, 4 A, 15 mm, Gray

₹ 10,837.90

₹ 9,184.66 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

286-723

Original Equipment Manufacturer

WAGO

Description
Nominal input voltage UN 24 VDC
Input voltage range (high level) 15 … 30 VDC
Nominal input current at UN 14 mA
Input current range 7.6 … 15 mA
Circuit type 3-wire connection
Switching type High-side switching
Limiting continuous current 4 A
Nominal output voltage 24 VDC
Output voltage range 20 … 30 VDC
Voltage drop ≤ 1.2 VDC
Leakage current at rated voltage ≤ 2 µA
Width 15 mm / 0.591 inches
Height 52 mm / 2.047 inches
Depth from upper-edge of DIN-rail 82.5 mm / 3.25 inches
Note (dimensions) Depth including carrier terminal block
Note (material data) Information on material specifications can be found here
Color Gray
Fire load 0.325 MJ
Weight 26.8 g
