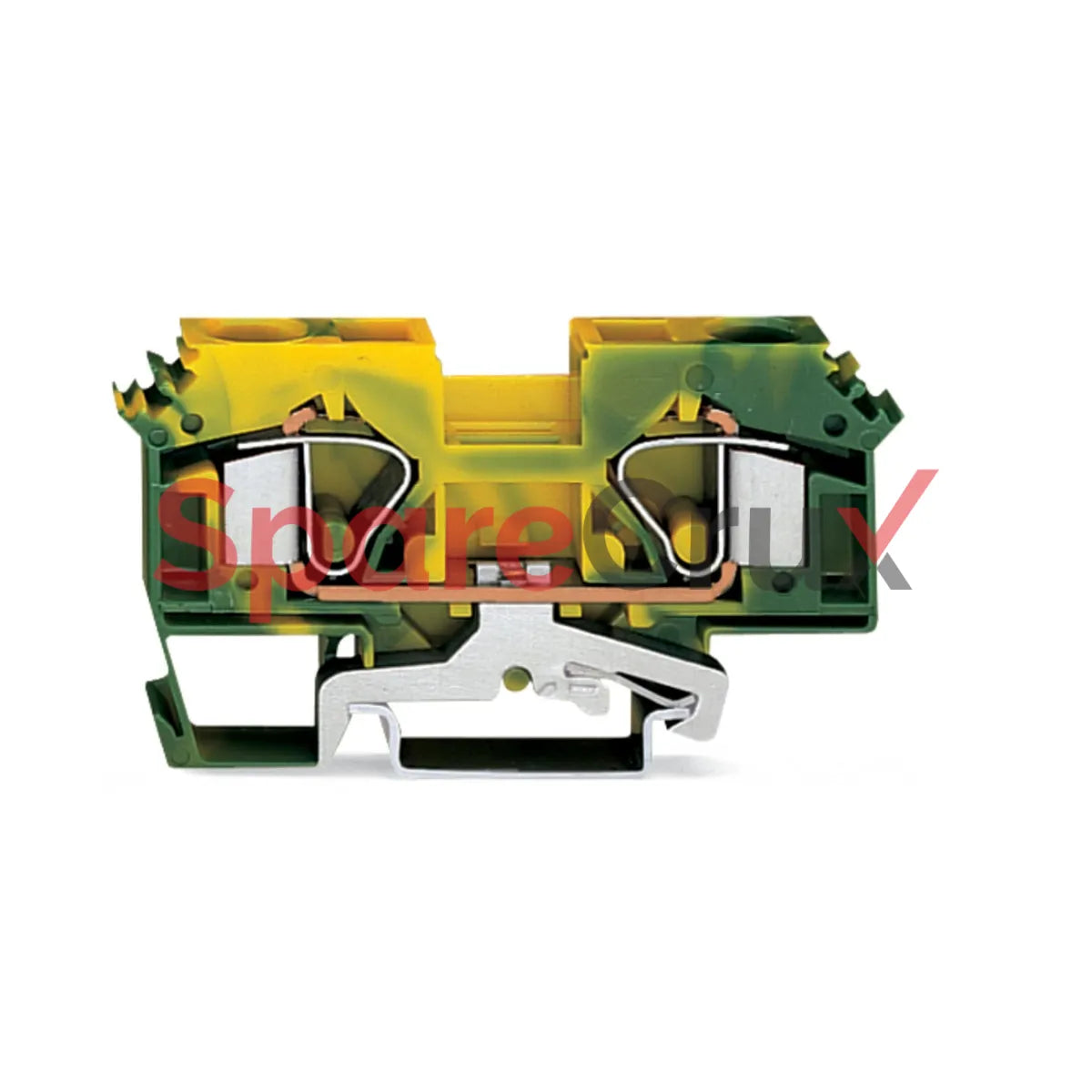

283-607 | WAGO | 2-Conductor Ground Terminal Block, 16 mm², CAGE CLAMP®, Green-Yellow, DIN Rail

₹ 1,439.32

₹ 1,219.76 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

283-607

Original Equipment Manufacturer

WAGO

Description

Property Details
Connection technology CAGE CLAMP®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.2 … 16 mm² / 24 … 6 AWG
Fine-stranded conductor 0.2 … 16 mm² / 24 … 6 AWG
Strip length 16 … 17 mm / 0.63 … 0.67 inches
Wiring direction Front-entry wiring
Width 12 mm / 0.472 inches
Height 80 mm / 3.15 inches
Depth from upper-edge of DIN-rail 37.5 mm / 1.476 inches
Design Horizontal type
Color Green-yellow
Material group I
Insulation material (main housing) Polyamide (PA66)
Flammability class per UL94 V0
Fire load 0.449 MJ
Weight 42 g
