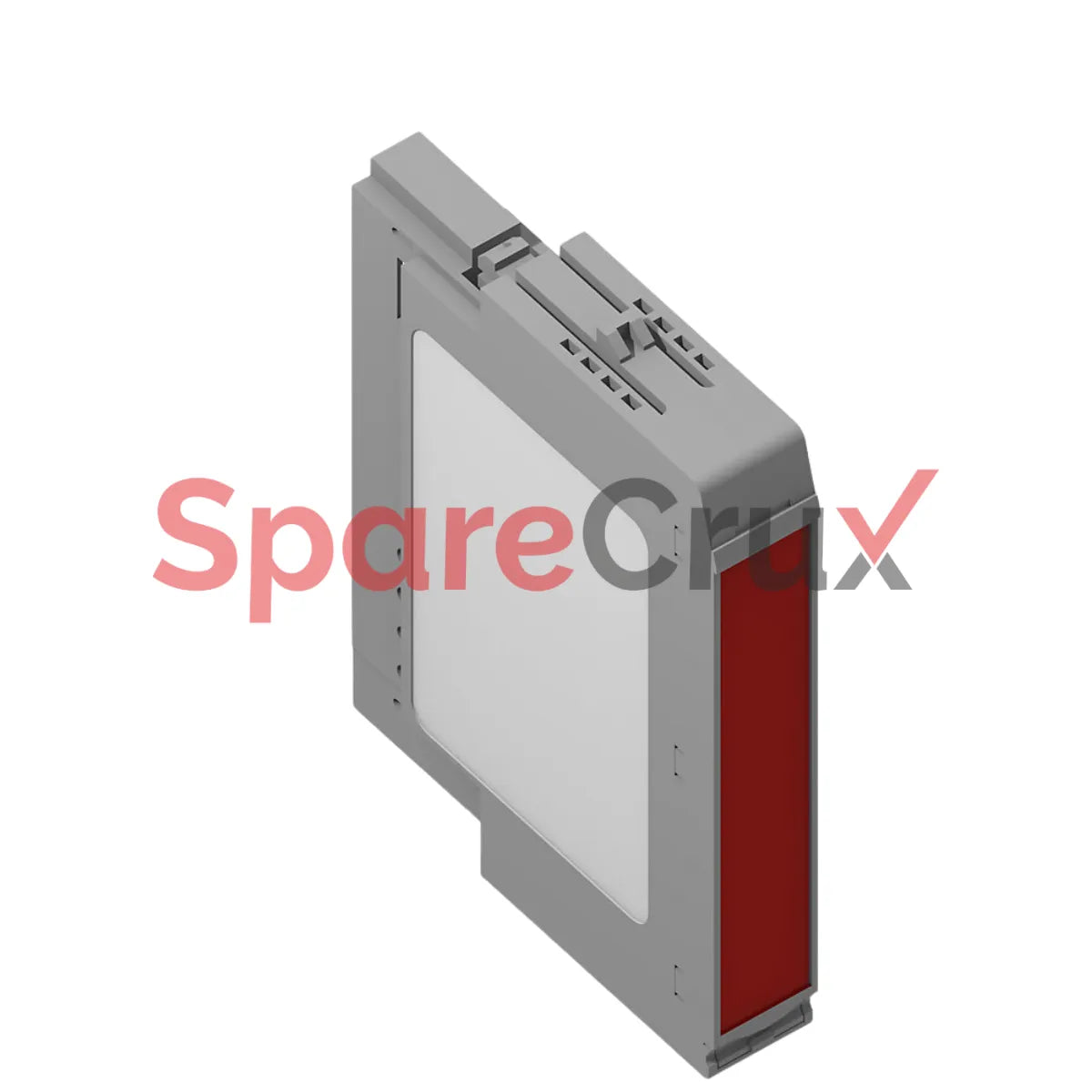

1734-IKK | ALLEN BRADLEY | POINT I/O 2-Channel Strain Gauge Input Module with Excitation, Conformal Coated

₹ 29,223.17

₹ 24,765.40 (Excl. Tax)


Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1734-IKK

Original Equipment Manufacturer

ALLEN BRADLEY

Description

Specification

Description

Input Channels

1 differential input

Encoder Voltage Compatibility

24V DC

Input Signal Types

A, B, and Z (quadrature with index)

Input Voltage Range

15V DC to 24V DC

Input Frequency, Max

1 MHz (counter and encoder X1 configurations)

Counter Resolution

24-bit binary (0 to 16,777,215)

Input Off-State Voltage

≤ 1.8V DC

Input On-State Voltage

≥ 2.6V DC

Input Impedance

Approx. 4.7 kΩ

Power Consumption

160 mA from POINTBus™

Power Dissipation

1.5 W max

Thermal Dissipation

5.1 BTU/hr max

Operating Temperature Range

0…55 °C (32…131 °F)

Storage Temperature Range

-40…85 °C (-40…185 °F)

Dimensions (HxWxD)

56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.)

Certifications

CE, UL, c-UL, Class I Division 2, ATEX Zone 2, IECEx
